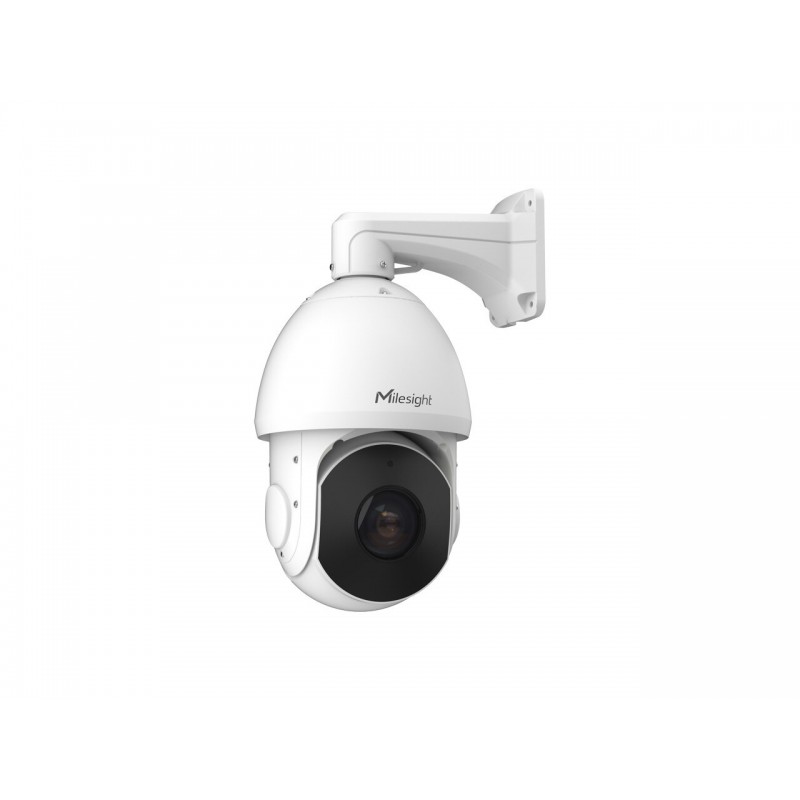

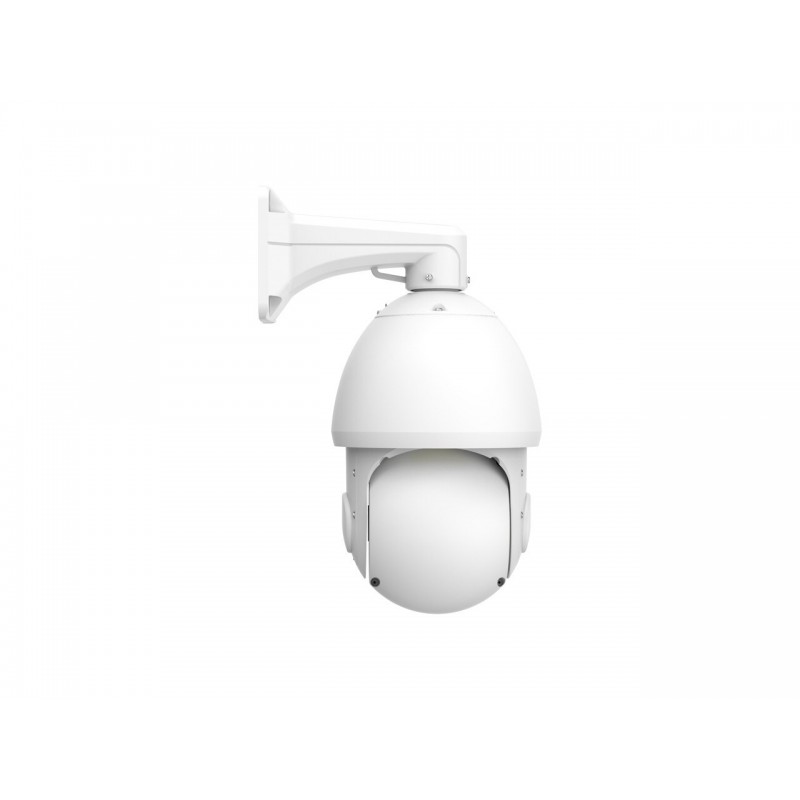

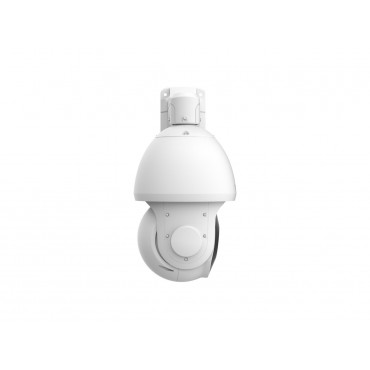

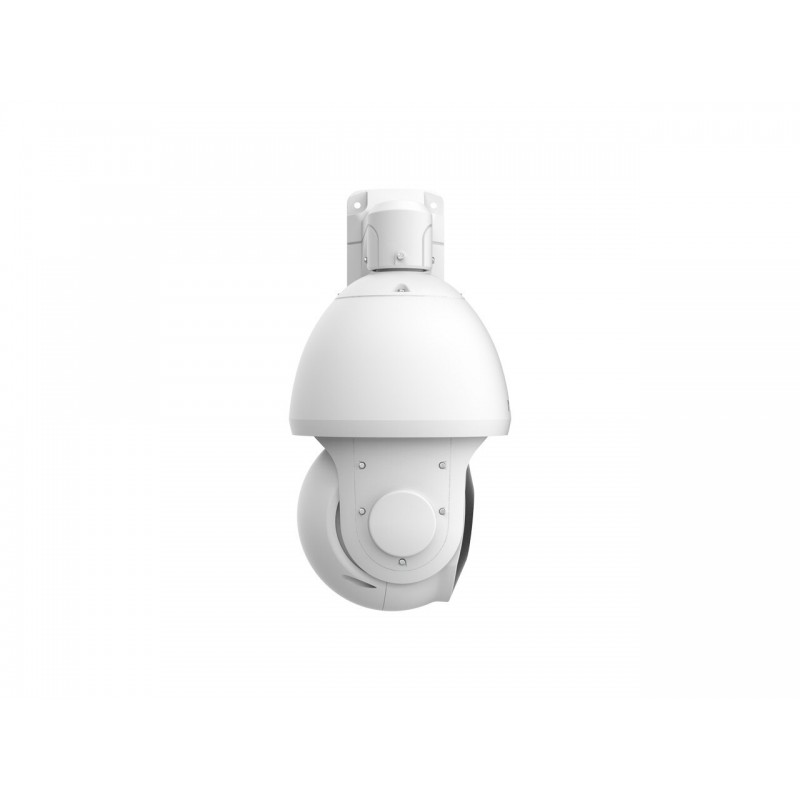

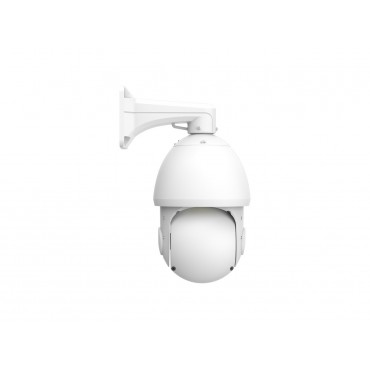

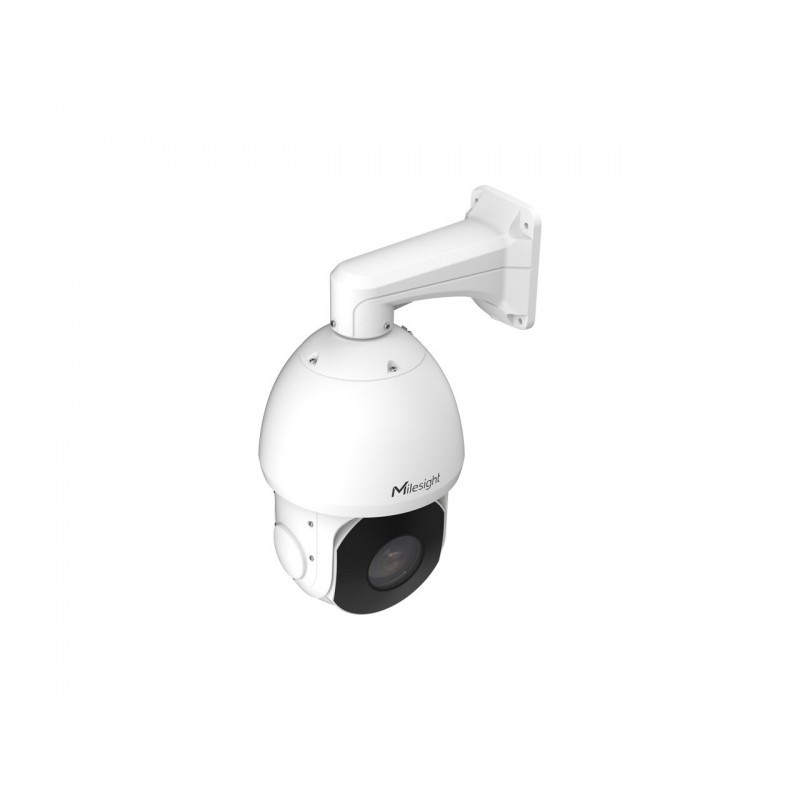

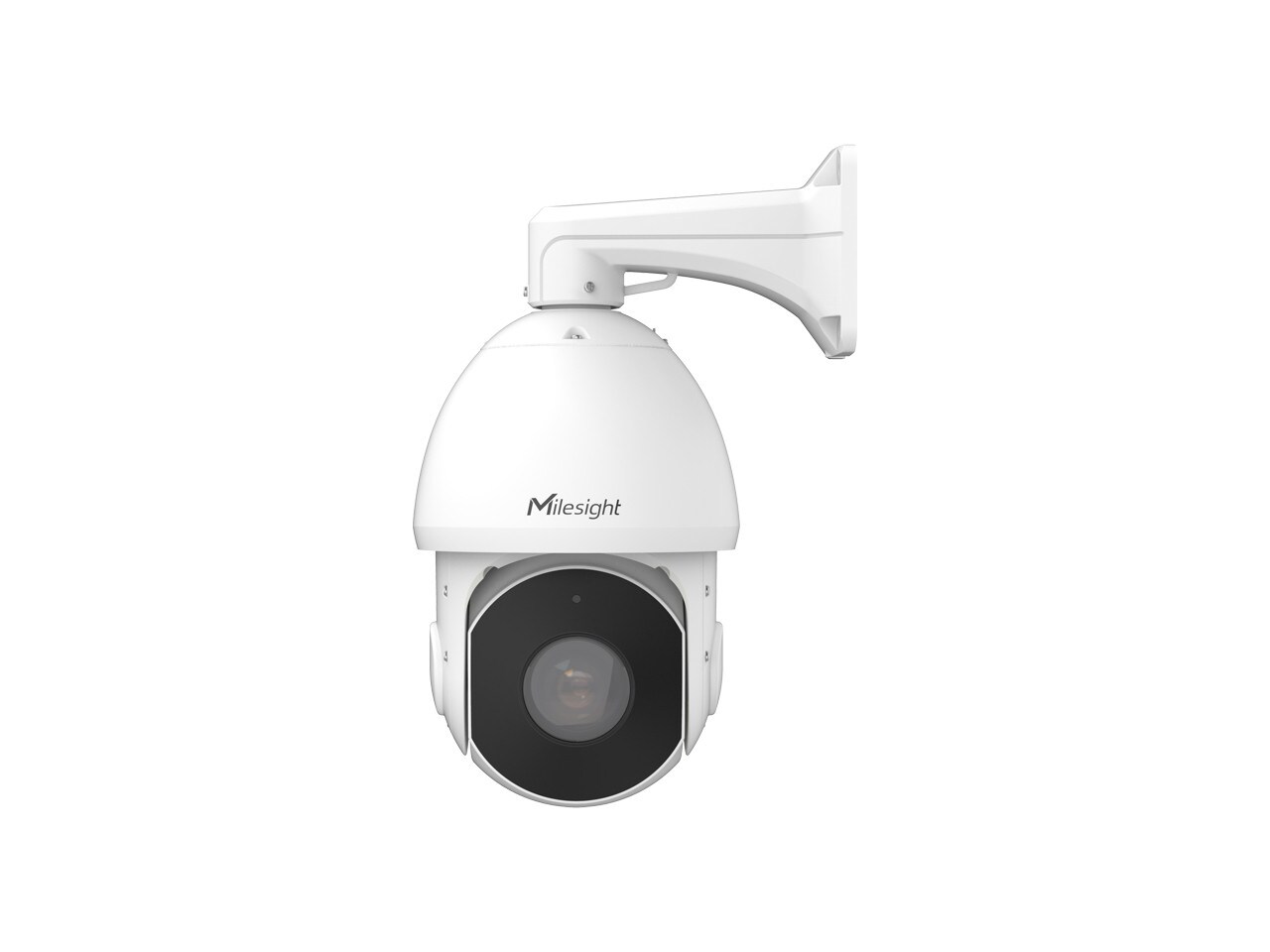

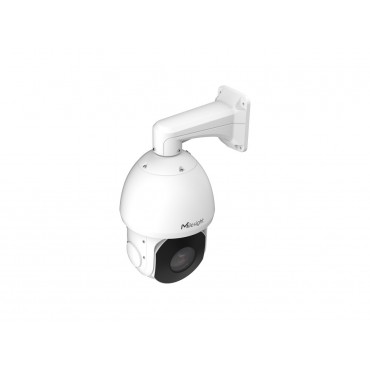

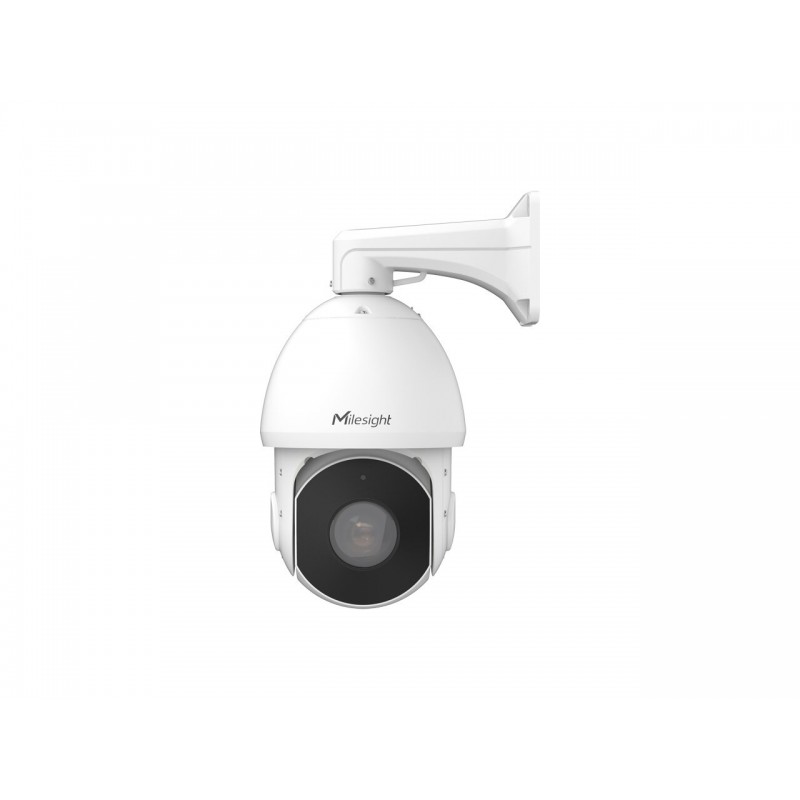

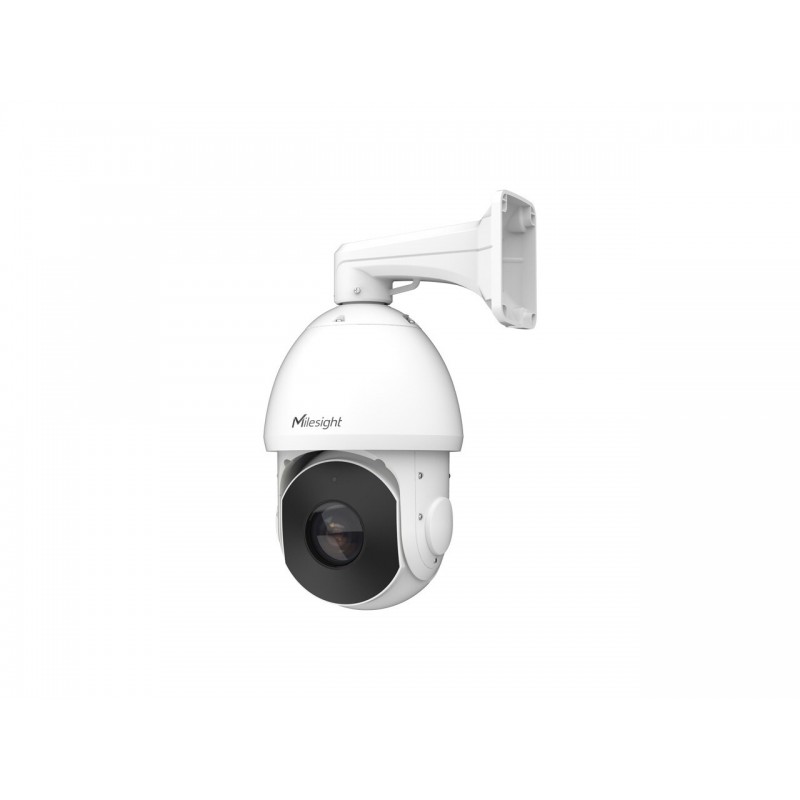

4K 36X AI Speed Dome Network Camera - Digital Zoom 16X - Lens 5.7∼205.2mm, 36X Optical Zoom - 8 Patrols, up to 48 presets each patrol - Video Analysis - Face Detection - Object Counting & Report
  • Merk: Milesight
  • Productcode: MS-C8241-X36PE
  • Levertijd: Op voorraad
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

4K 36X AI Speed Dome Network Camera - Digital Zoom 16X - Lens 5.7∼205.2mm, 36X Optical Zoom - 8 Patrols, up to 48 presets each patrol - Video Analysis - Face Detection - Object Counting & Report


  • 4/5/8 MP
  • AI Deep Learning
  • Flexible Pan, Tilt and Zoom Tasks
  • Smart Rain-sensing Wiper(Optional)
  • PTZ Auto Tracking
  • 1/1.8" Sony Sensor
  • 36X Optical Zoom
  • 300m IR Distance



  • PTZ Speed Dome Network Camera
  • Installation material
  • CD with software and instructions

Camera
Day/Night Mode Day/Night/Auto/Customize/Schedule
Digital Zoom 16X
Image Sensor 1/1.8" Progressive Scan CMOS
Name 4K 36X AI Speed Dome Network Camera
S/N >55dB
Shutter Time 1/100000s∼1s
WDR 120dB Super WDR
Min. Illumination Color: 0.009Lux @F1.55, B/W: 0Lux with IR on
Lens
Aperture F1.55∼F4.8
Field of View H65°~H2.5°/D72°~D2.9°/ V40°~V1.4°
Focus Control Auto/Semi-Auto/Manual
Iris Control Auto
Minimum Working Distance 1500/1500mm (Wide/Tele)
Zoom Speed Approx 7s(Wide-Tele)
Focal Length 5.7∼205.2mm, 36X Optical Zoom
IR
Irradiation Angle Auto/Manual
Irradiation Distance Up to 300m
Video
Image Settings Saturation/Brightness/Contrast/Sharpness
Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
ROI Up to 8 areas
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
Network
Network protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Interface
Alarm I/O 4/2
Audio I/O 1/1
Ethernet 1*RJ45 10M/100M Ethernet Port
RS485 Support
Intelligent Analytics
Face Detection&Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Audio
Two-way Audio Support
Audio compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
System
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
SIP/VoIP Support Yes, Voice&Video-over-IP
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
System Compatibility ONVIF Profile G & M & S & T, API
General
Dimensions Φ205mmX308mm
Power Consumption 13W MAX/ 28W MAX(With IR on)
Surge Protection 6KV
Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
Wiper (Optional) Support
Working Conditions Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power Supply PoE(802.3at)/ AC 24V/3A ±10%
Heater Support
Weight 4Kg
PTZ
Auto Tracking Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Power Off Memory Support
Preset Quantity 300
Proportional Zoom Support
Tilt Range/Tilt Speed -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s
