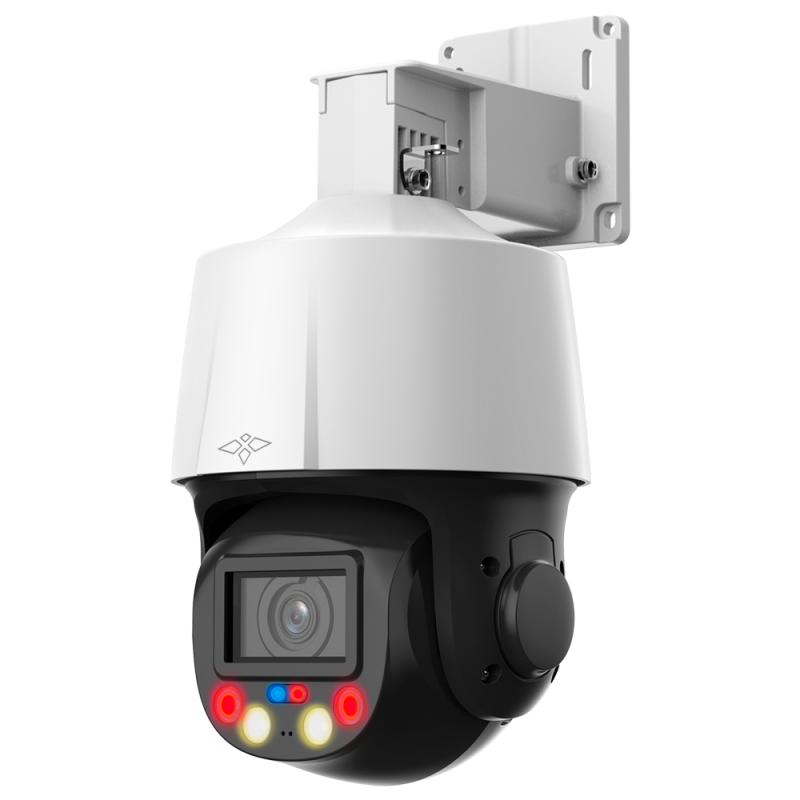

X-Security 4MP Pro Range PTZ IP Camera - 2.7~13.5mm Varifocal Lens (5x Optical Zoom) - Dual Light | IR Range 50m | White Light 30m - IVS (Perimeter Protection) | SDM 3.0 - Face Detection | Auto Tracking - IP66 | Audio | Alarms | PoE+ | MicroSD
  • Brand: X-Security
  • Product Code: XS-IPSD3005ITA-4U-TIOC
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security 4MP Pro Range PTZ IP Camera - 2.7~13.5mm Varifocal Lens (5x Optical Zoom) - Dual Light | IR Range 50m | White Light 30m - IVS (Perimeter Protection) | SDM 3.0 - Face Detection | Auto Tracking - IP66 | Audio | Alarms | PoE+ | MicroSD


  • X-Security
  • WizSense PTZ IP Camera
  • 4 Megapixel (2560x1440)
  • Pro Range
  • 1/2.8" Progressive Scan CMOS
  • 2.7~13.5 mm Varifocal Lens
  • 5X Optical Zoom
  • 0 lux
  • Dual Light: IR and White Light
  • IR Range 50 m
  • White Light Range 30 m
  • Compression H.264H / H.264B / Smart H.265+ / H.265 / H.264 / MJPEG
  • IVS (Perimeter Protection)
  • SMD 3.0 Smart Search
  • Face Detection
  • Auto Tracking
  • Audio
  • Built-in Microphone and Speaker
  • Alarms
  • Red and Blue Alarm and Deterrent Light
  • WDR (120 dB)
  • 3D DNR
  • IR CUT
  • MicroSD Card Slot up to 512GB
  • WEB Interface, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR
  • ONVIF compatible
  • RJ-45 10/100 BaseT
  • PoE+ (IEEE802.3at)
  • IP66 waterproof
  • 6000 V surge protection


  • IP motorized dome camera
  • CD with software and instructions

alt


Article
Brand X-Security
General
Dimensions 236.1 mm (H) x 140 (W) mm x 142.6 (D) mm
DORI 270 m (D), 106.6 m (O), 54 m (R), 27 m (I)
EIS (Image Stabilizer) Yes
Focus Auto; semi-auto; manual
Internal storage MicroSD card slot up to 512 GB
Operating conditions -30º C ~ +60º C
SMD (Smart Motion Detection) SMD 3.0, advanced motion detection
Supplementary lighting Dual light (IR + white light) IR range 50 m White light range 30 m
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Image sensor 1/2.8" Progressive Scan CMOS
IVS (Perimeter Protection) Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/human alarm classification
Pan/Tilt Range Horizontal: 0°~355° Vertical: -15°~90°
Auto Tracking Yes
Zoom Digital 16X
Main Stream Rate 4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps)
Power Supply DC 12 V / 2 A, max. 15W PoE+ (IEEE802.3at)
Resolution 4 Megapíxel (2560x1440)
Extra Stream rate 1: D1/VGA/CIF @(1–25/30 fps) 2: 720p @(1–25/30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB interface, CMS (DSS/PSS), Smartphone and NVR
Preset positions 300, 8 tour, 5 Pattern, 5 Scan
Weight 1.5 Kg
Angle of View H: 94.9º~30.1º, V: 51º~17.1º, D: 112.3º~34.6º
Communication ONVIF (profile S, G, T), CGI, SDK, P2P
Bitrate H264: 96 Kbps~14848 Kbps H265: 38 Kbps~8960 Kbps
Electronic shutter 1 s~1/30.000 s
Lens Varifocal 2.7~13.5 mm (5x optical zoom)
Speed between Presets Horizontal: 35.7°/s Vertical: 27.1°/s
Audio 1 input / 1 output Built-in microphone and speaker.
Day / Night Removable ICR mechanical filter
Minimum illumination 0.005 Lux @(F1.6, AGC ON) 0 lux with IR range 50 m
Manual speed Horizontal: 0.1°~36°/s Vertical: 0.1°–25.8°/s
Image improvements WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, ROI, 180º Rotation
Deterrent alarm Integrated siren and red and blue lights
Face Detection Supports face detection, image capture, and face enhancement. Supports face cropping: face, one-inch photo. Capture strategies include real-time capture and quality prioritization.
Motion Detection Yes
Alarm 1 input / 1 output
Degree of protection IP66 waterproof 6000V surge protection
Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+
