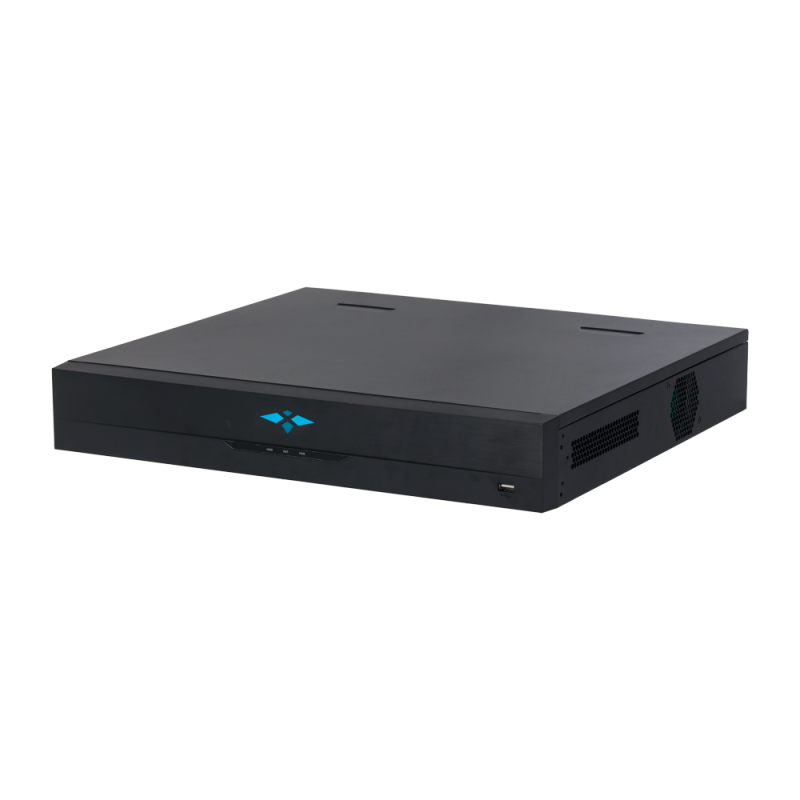

DVR 5n1 X-Security | 32 CH HDTVI/HDCVI/AHD/CVBS (4K) + 32 IP (8Mpx) | Audio over coaxial | 4 SATA Ports Up to 16TB | 6 CH facial recognition | 32 CH Human and vehicle recognition
  • Brand: X-Security
  • Product Code: XS-XVR6432AS-4KL-6AI
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

DVR 5n1 X-Security | 32 CH HDTVI/HDCVI/AHD/CVBS (4K) + 32 IP (8Mpx) | Audio over coaxial | 4 SATA Ports Up to 16TB | 6 CH facial recognition | 32 CH Human and vehicle recognition


  • X-Security
  • DVR 5n1
  • 32 CH video HDTVI/HDCVI/AHD/CVBS / 32+32 IP / 32 CH audio
  • Smart H.265+/H.265, Smart /H.264+/H.264
  • Resolution 4K (7FPS) or 6Mpx (10FPS) or 5Mpx (12FPS) or 4MP (25FPS) or 4K-N, 4MP/3MP (15FPS) , 4M-N/1080P/720P/960H/D1/CIF (25/30FPS)
  • PTZ control (RS485)
  • audio over coax
  • Full HD HDMI, VGA output
  • 6 CH Face Comparison
  • Human and vehicle recognition (Available for 32 Ch coaxial video)
  • Mouse
  • 2 USB ports
  • Space for 4 HDDs
  • Compact size

  • 5-in-1 X-Security recorder
  • Mouse
  • 12VDC power supply
Article
Brand X-SECURITY
General
Internal storage 4 SATA HDDs up to 16TB (not included)
Power DC 12V / 5A
Video/audio compression Smart H.265+/H.265, Smart /H.264+/H.264
Coding All channel: 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps)
Dual-Stream encoding 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)
Video format HDTVI / HDCVI / AHD / CVBS / IP
Hybrid configuration Up to 32 IP Channels (8Mpx), replacing all BNC channels
Recording method Manual, scheduled, motion detection, alarm
Remote Access Browser (ActiveX), Mobile phone app or PSS software
Smart motion detection Up to 32 channels capable of classifying targets between humans and vehicles
Two-way Audio Reusing audio input/output
Video inputs 32 BNC Channels (HDTVI / HDCVI / AHD / CVBS)
Weight 2.50 Kg
Communication RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Video outputs 1 HDMI , 1 VGA
Audio inputs 32 BNC, 1 RCA Channels
Bandwidth 128 Mbps
Display Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Audio outputs 1 RCA channel
Dimensions 53 (H) x 375 (W) x 334.4 (D) mm
video analysis IVS: Line crossing | Area intrusion | Abandoned object | face detection IP mode, Face recognition and IVS cannot be activated at the same time
Simultaneous multifunction Pentaplex: Direct, Recording, Playback, Backup and Remote Access
Alarm No
Facial recognition Up to 6 analog channels of live face comparison
Backup USB/ Network
