- Brand: YLI Electronic
- Product Code: YML-650B
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

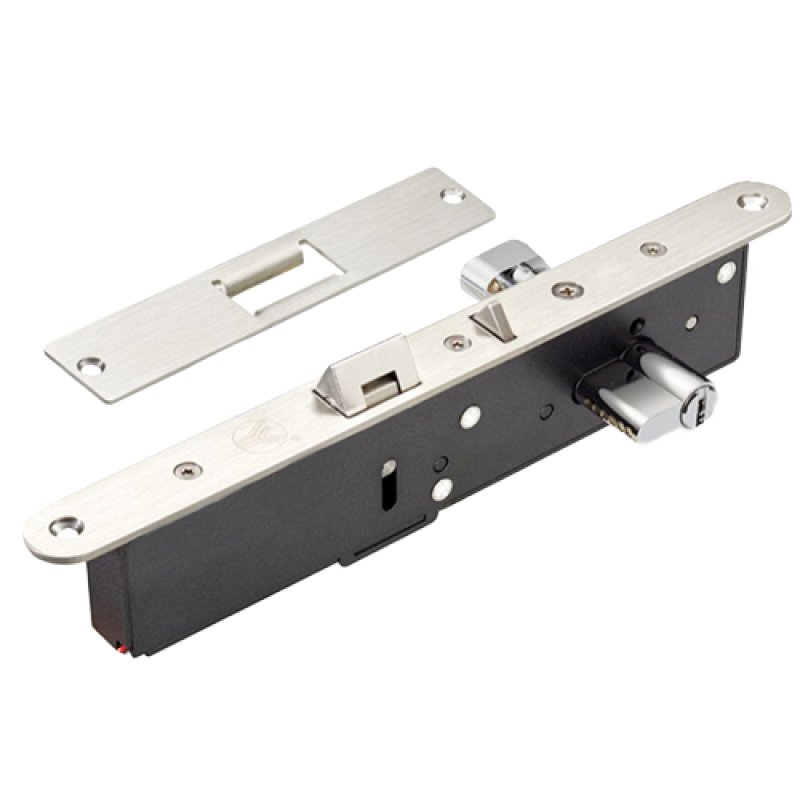

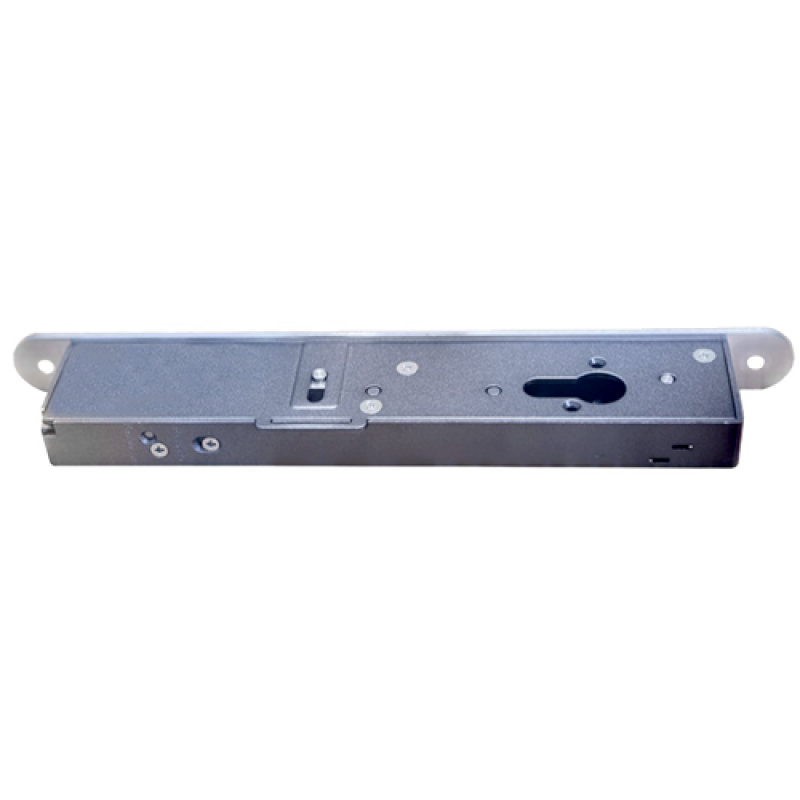

Electromechanical security lock - Fail Secure and Fail Safe opening mode - Holding force 500 kg | door sensor - bidirectional opening - SUS304 stainless steel - European cylinder included with keys
- Electromechanical safety latch lock
- European cylinder with keys included
- NO (Fail Secure) and NC (Fail Safe) operation
- door sensor
- Mounting on wooden, metal and glass doors
- Suitable for narrow frame doors
- Made of SUS304 stainless steel
- 12-24VDC
- bidirectional opening
- Electromechanical lock
- Installation material
- User instructions
| Article | |
| Brand | YLI |
| Product Code | YML-650B |
| General | |
| Opening mode | Fail Secure (NO) or Fail Safe (NC) |
| opening type | bidirectional |
| Backset | 30 mm |
| Cylinder | European |
| Door sensor | NC / NO / COM |
| Retention force | 500 kg |
| Weight | 1.4 kg |
| Power | DC 12-24V / 300mA max. |
| Temperature | -40º C ~ +60º C |
| Mounting | built-in |
| Dimensions | Plate 25 (W) x 275 (H) x 51.9 (D) mm / Lock 30 (W) x 150 (H) x 1.5 (D) mm |
