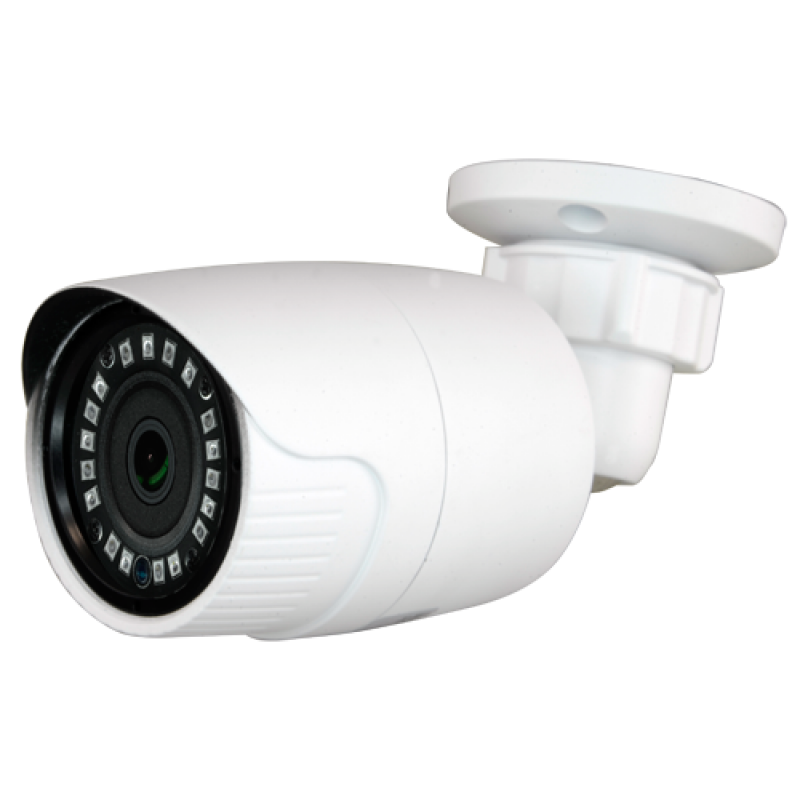

HDTVI, HDCVI, AHD, CVBS 4n1 Bullet camera, 1/2.7" OmniVision© OV2710, Lens 3.6 mm, IR 20m, IP66, OSD remote from DVR
  • Brand: Private Brand
  • Product Code: CV029IB-F4N1
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

HDTVI, HDCVI, AHD, CVBS 4n1 Bullet camera, 1/2.7" OmniVision© OV2710, Lens 3.6 mm, IR 20m, IP66, OSD remote from DVR


compact camera with infrared, suitable for outdoor use. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) 1080p ECO range.

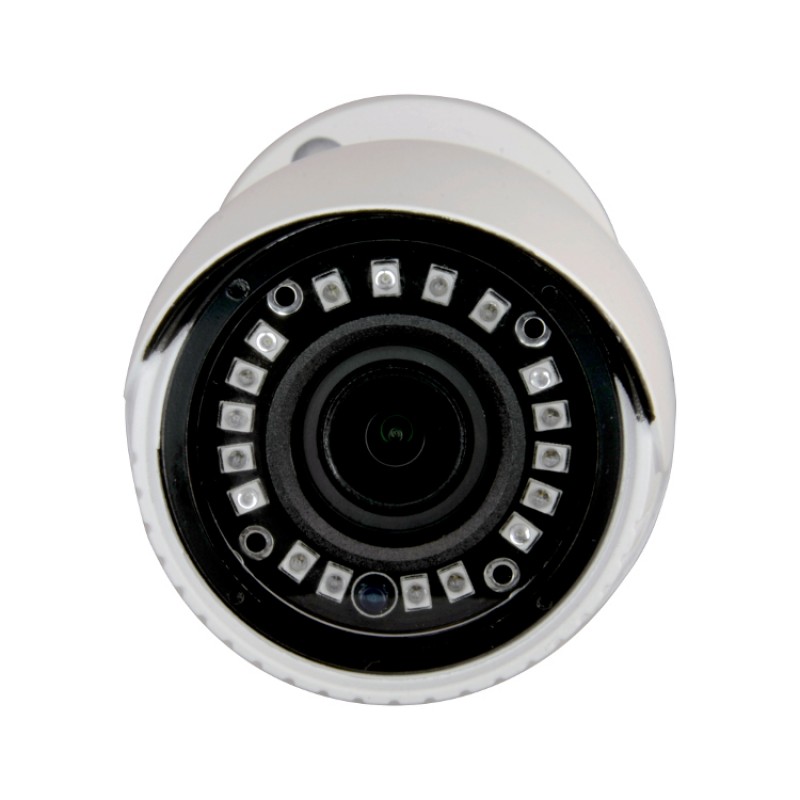

Consisting of a sensor 1 / 2.7 "OmniVision © 2.0 Megapixel (OV2710 model) and DSP (V30 model) that offers a resolution of 1080p at 25 FPS. Optics fixed 3.6 mm with a diagonal field of view of 79 °. 18 LEDs SMD infrared which they are activated automatically provide a sharp image at 0 lux (total darkness) to a maximum distance of 20 m. it has automatic CUT IR filter that allows for daytime an image with sharp, realistic colors.

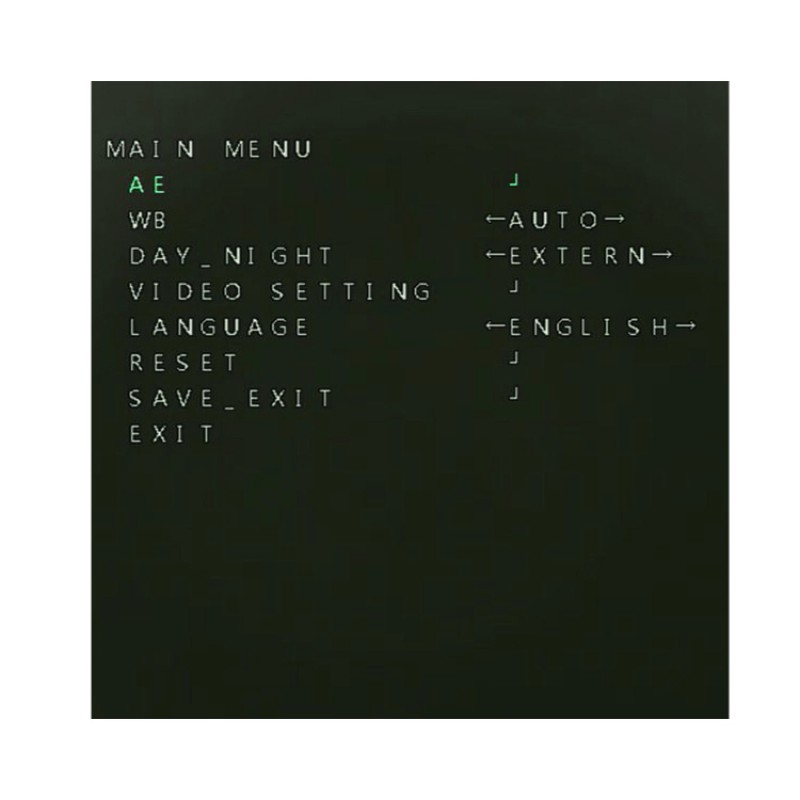

Thanks to its DSP has OSD in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust the most important parameters:

    AE Shutter, automatic exposure control to optimize the input light received
    2D-NR system, digital noise reduction without loss of focus
    AWB, automatic white balance for a true colors

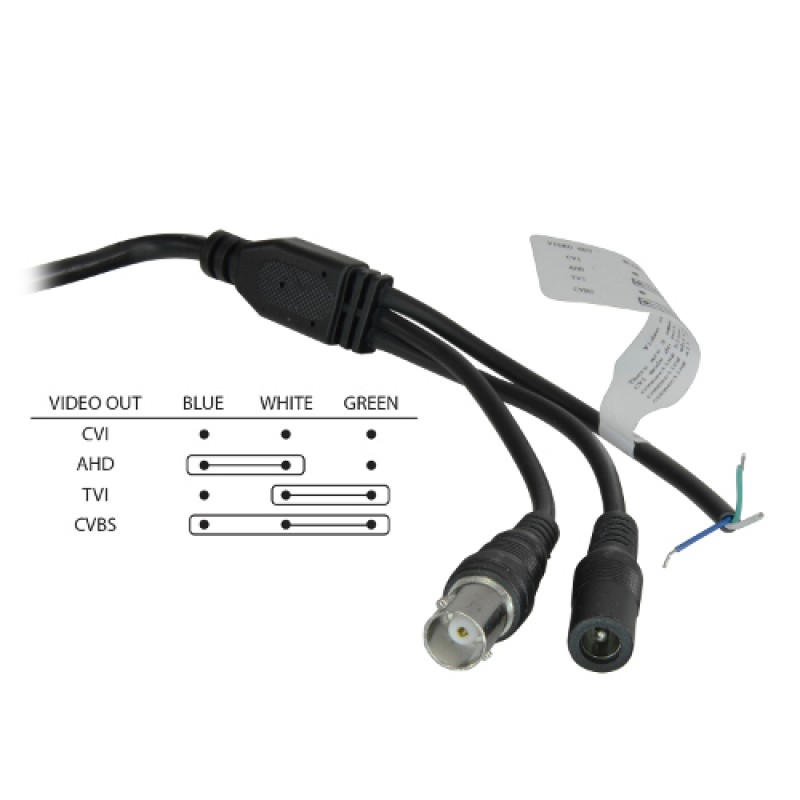

BNC video connection formats HD HDTVI / HDCVI / AHD and CVBS analog format standard for video test, enabled by switching switch by combining 3-wire.

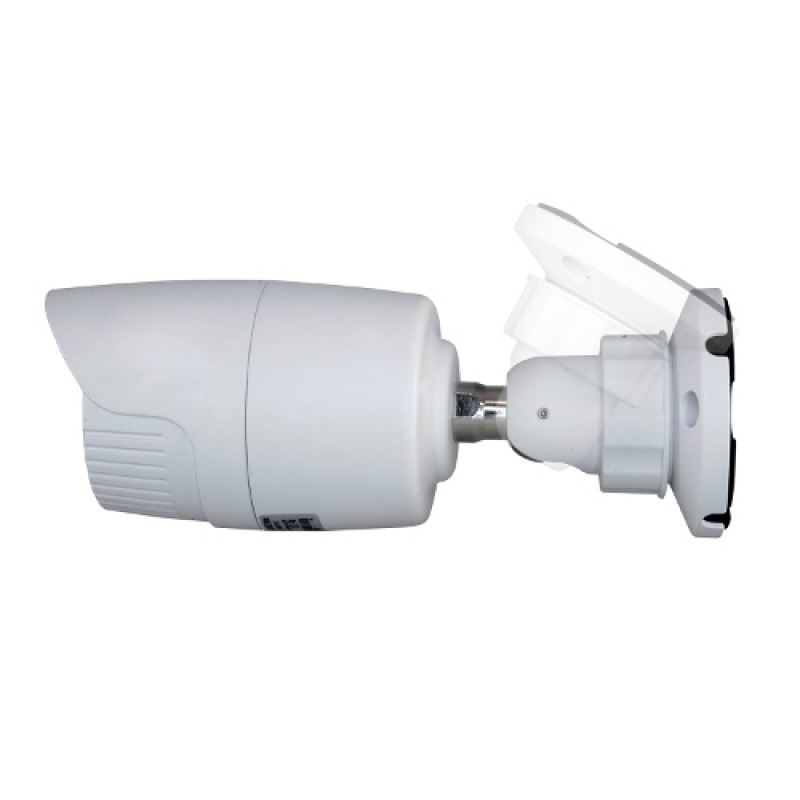

Housing made of aluminum, waterproof IP66 according to protocol, can be used for both indoor and outdoor. Simple installation in wall or ceiling thanks to its support 360. It incorporates a thread on the base stand for easy installation.


  • Bullet camera 4 in 1
  • Mounting material
  • Allen wrench

altaltaltalt


POWER
Operating Voltage DC 12 V
Power Consumption 450 mA max.
Power supply DC 12 V / 450 mA max.
General
Video switched output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor 1/2.7" OmniVision© 2.0 Megapixel (OV2710)
DSP associated with the sensor V30
Lens 3.6 mm (D: 79º)
Minimal illumination 0 Lux / 18 LEDs SMD IR (20 m)
Video output HD 1080p (1920x1080) @ 25 FPS / CVBS 960H (test)
Basic functions Menu OSD, Day/Night with IR-CUT (ICR)
Configurable OSD functions DWDR, 2D-NR, AE, AWB, AGC
Weight 310 g
General Characterisitics
Protection Grade Waterproof IP66
Temp. operation -10º C ~ +50º C
Dimensions 170 (D) x 58 (Ø) mm
