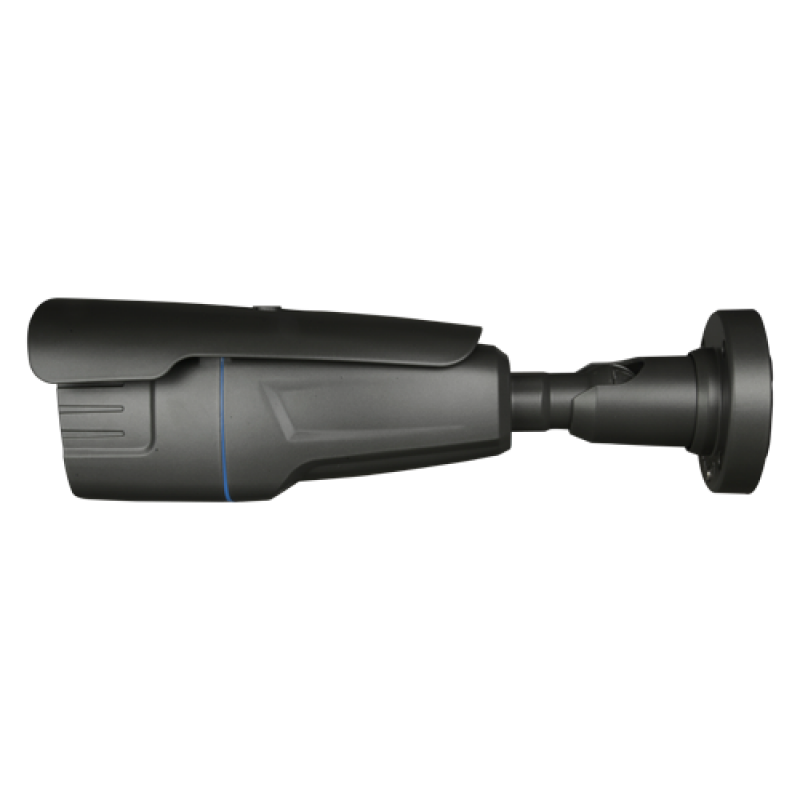

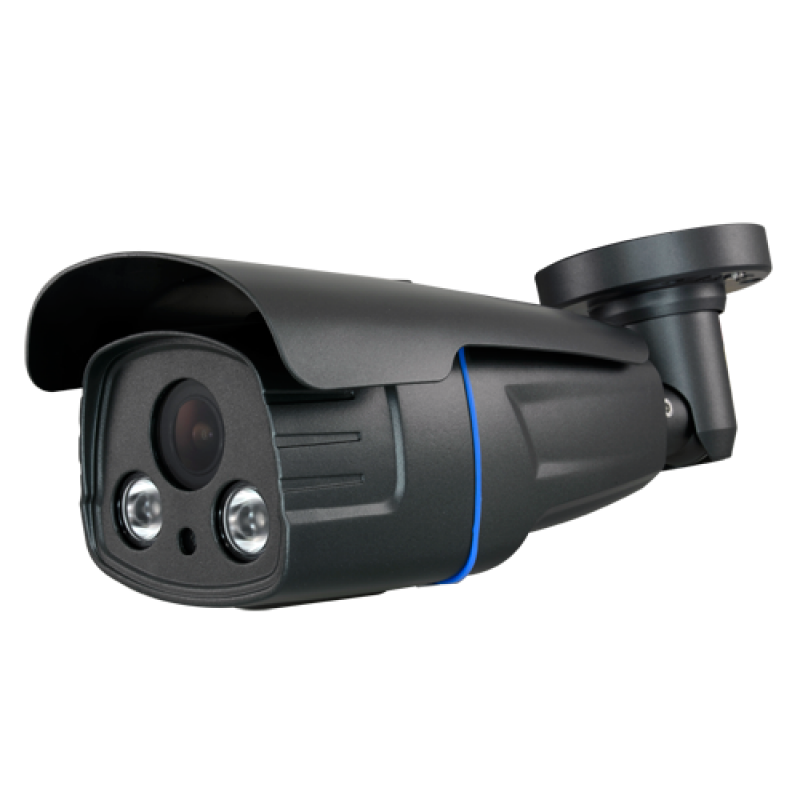

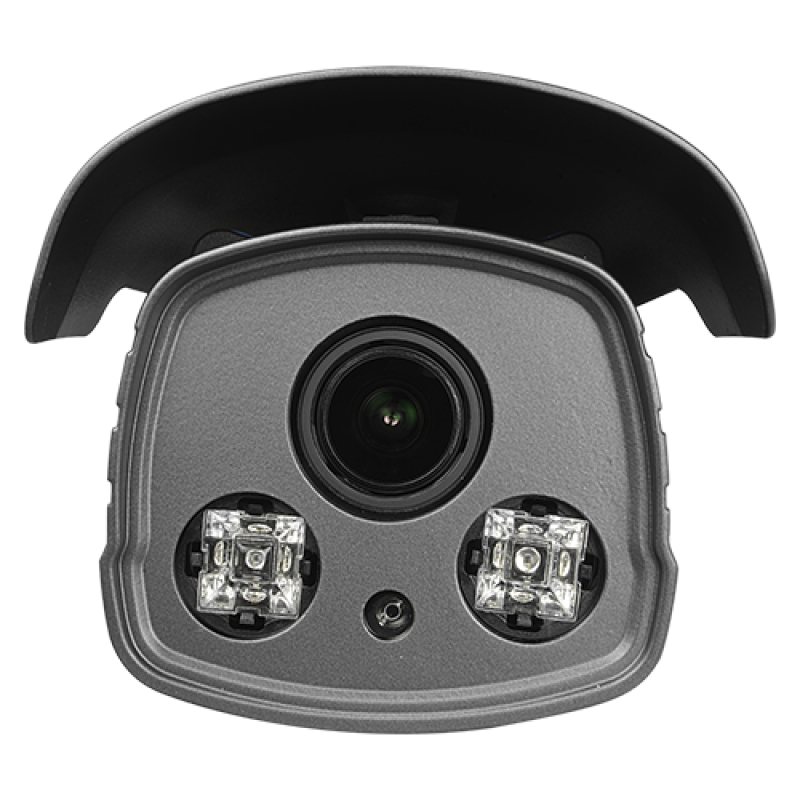

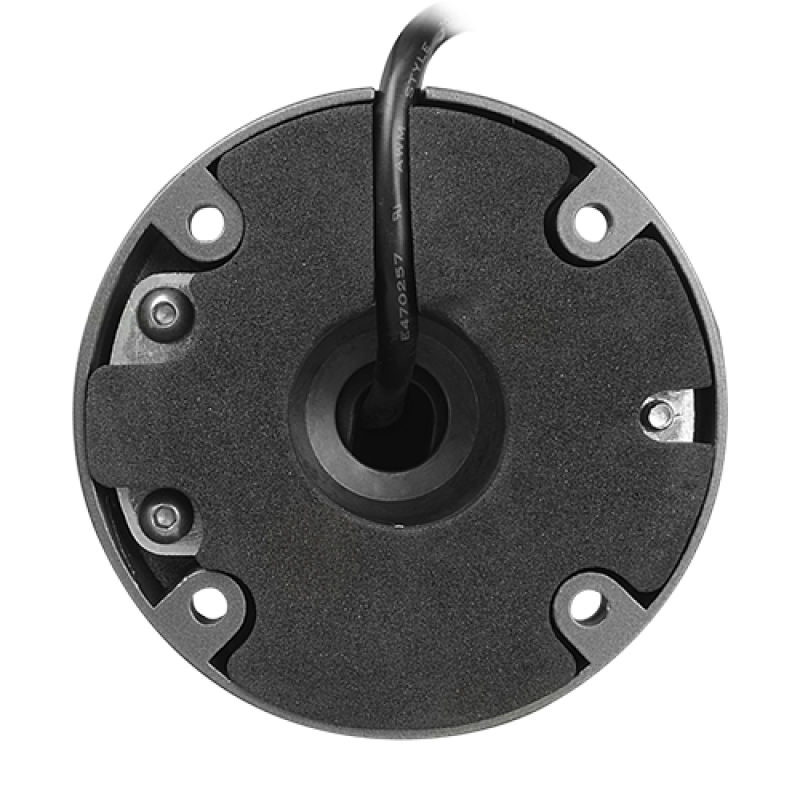

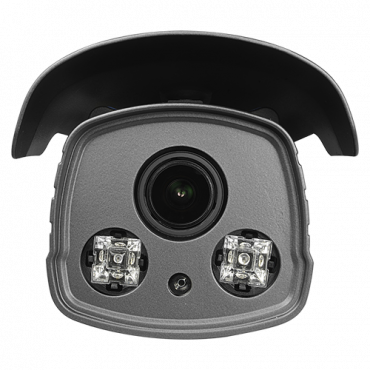

HDTVI, HDCVI, AHD and Analogue bullet camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" CMOS 2 Megapixel - 2.7~13.5 mm motorised AF lens - IR LEDs Array Range 60 m - OSD remote menu from DVR
  • Brand: Private Brand
  • Product Code: CV621ZG-F4N1
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

HDTVI, HDCVI, AHD and Analogue bullet camera - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.7" CMOS 2 Megapixel - 2.7~13.5 mm motorised AF lens - IR LEDs Array Range 60 m - OSD remote menu from DVR


  • HDTVI, HDCVI, AHD and Analogue bullet camera
  • ECO Range
  • 1/2.7" CMOS 2 Megapixel
  • BG0806+FH8550
  • 2Mpx (1920x1080)
  • Output 4in1
  • 2.7~13.5 mm motorised AF lens
  • 0 Lux - IR Array Range 60 m
  • 3DNR, DWDR, OSD
  • IR Cut
  • Weatherproof IP66




  • Bullet camera 4 in 1
  • Mounting material
  • User instructions

alt


Article
Brand Oem
Product Code CV621ZG-F4N1
Series 2Mpx ECO
POWER
Operating Voltage DC 12 V
Power Consumption 1000 mA max.
Power supply DC 12 V / 1000 mA max.
General
Resolution 2Mpx (1920x1080) @ 25 FPS
Image sensor 1/2.7" CMOS 2 Megapixel (BG0806 model )
DSP FH8550
Lens 2.7 ~ 13.5mm motorized AF lens
Minimal illumination 0 Lux / 4 IR LEDs Array (30 m)

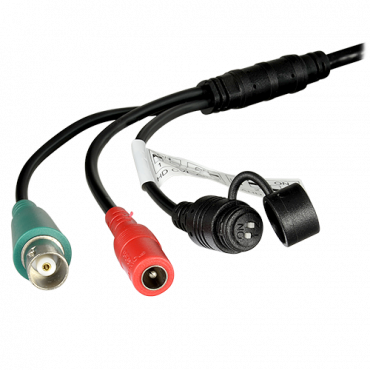

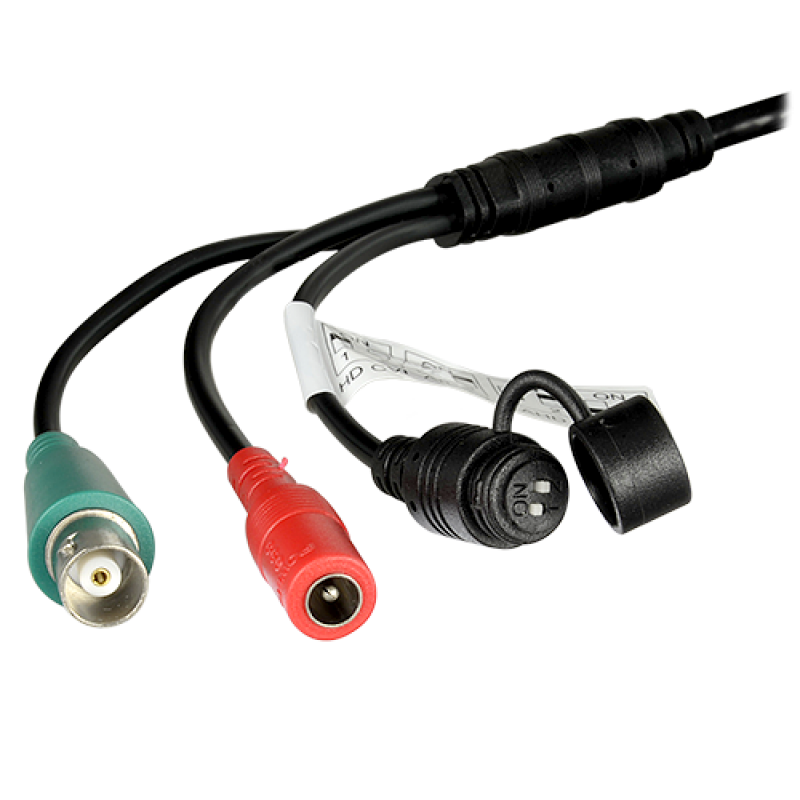

Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Basic functions OSD menu, day / night with IR-CUT (ICR)
Configurable OSD functions AE, 3DNR, AWB, DWDR
Weight 1000 g
General Characterisitics
Protection Grade Weatherproof IP66
Temp. operation -10º C ~ +60º C
Dimensions 327 (D) x 96 (H) x 112 (W) mm
