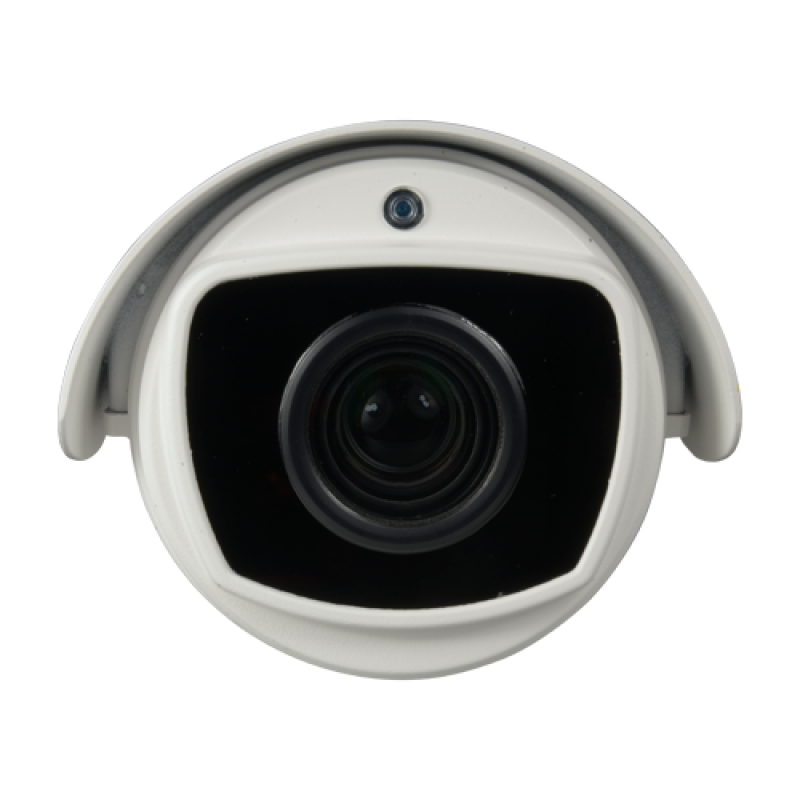

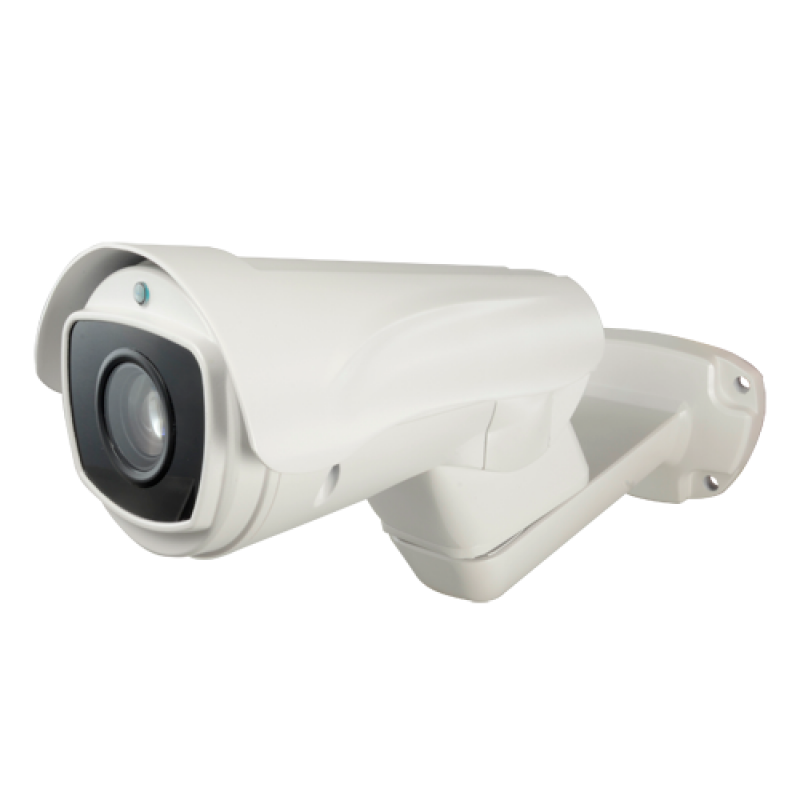

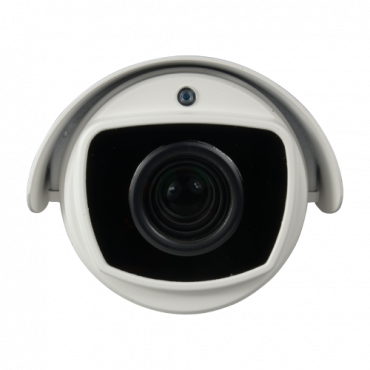

4N1 Motorised Bullet Camera - 1/3” Sony© Exmor IMX323 CMOS - Horizontal: 220°, Vertical: 85° - 5.1~51 mm 10X Motorised Lens - Matrix IR LEDs Scope 120 m - Control over coax (RS485 for HDCVI)
  • Brand: Private Brand
  • Product Code: CVPT3410FIZ-FTVI
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

4N1 Motorised Bullet Camera - 1/3” Sony© Exmor IMX323 CMOS - Horizontal: 220°, Vertical: 85° - 5.1~51 mm 10X Motorised Lens - Matrix IR LEDs Scope 120 m - Control over coax (RS485 for HDCVI)


  • Motorized HDTVI, HDCVI, AHD and Analog bullet camera
  • Average speed 30º/segundo
  • 10X Optical zoom
  • 1/3" Sony Exmor IMX323
  • HD 1080P (1920x1080)
  • Output 4n1
  • Varifocal lens 5.1~51 mm
  • Horizontal: 220°, Vertical: 85°
  • 0 Lux - IR Range 120 m
  • IR Cut
  • Control over coax (RS485 for HDCVI)
  • Pelco P/D protocols supported
  • OSD Menu
  • Weatherproof IP66

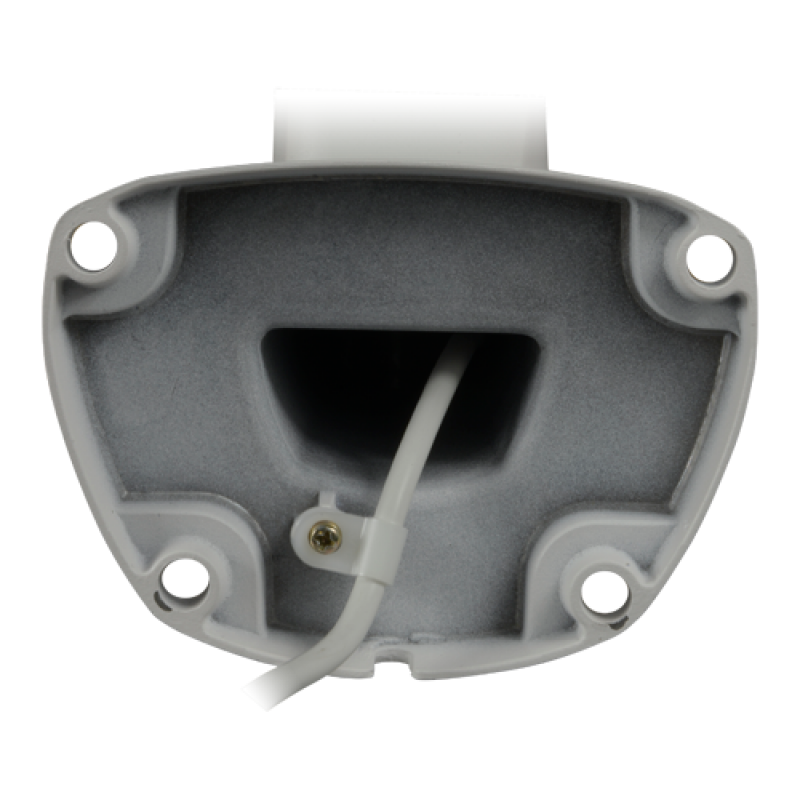

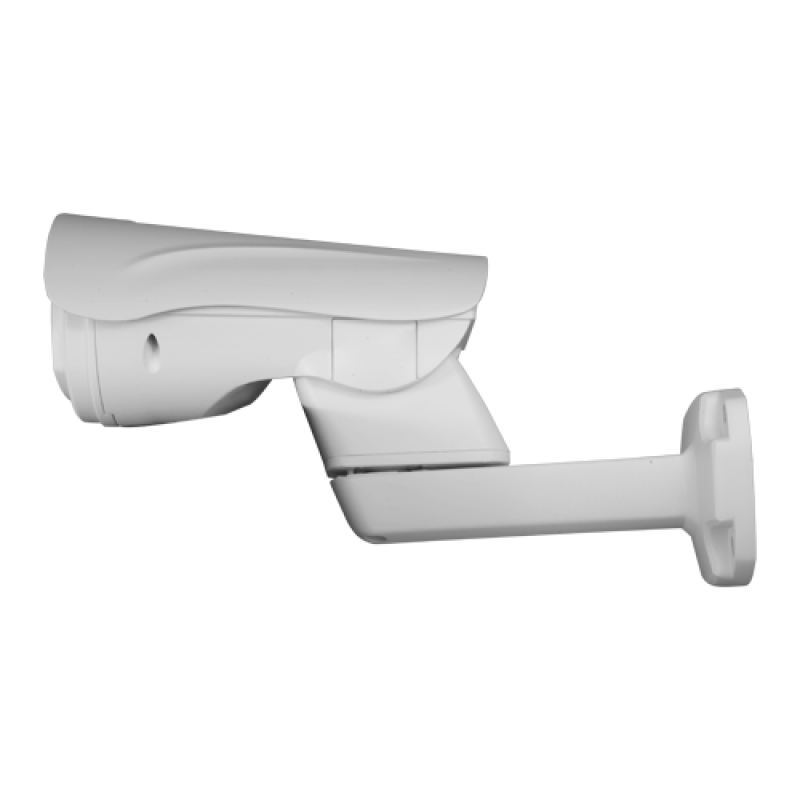

  • Wall bracket included




  • Motorised bullet camera
  • CD with software and instructions
  • User instructions

alt


Article
Brand Oem
Product Code CVPT3410FIZ-FTVI
Series 1080P ULTRA
POWER
Operating Voltage DC 12 V
Power Consumption 15W
Power supply DC 12 V / 15W
General
Pan/Tilt Range Horizontal: 220 °, Vertical: 85 °
Manual Control Speed Horizontal: 0 ° ~ 30 ° / sec, Vertical: 0 ° ~ 25 ° / sec
Optical Zoom 10X
Resolution 2 Megapixel (1920x1080)
Preset positions 220, 1 auto-scan, 3 tour, 1 pattern
Protocol RS485, Pelco P / Pelco D / DH-SD
Image enhancements 3D-NR, BLC, AWB, AGC
Image sensor 1/3" Sony© Exmor IMX323 CMOS
DSP NVP2441
Lens Vari-focal Autofocus 5.1~51.0mm
Infrared lighting 0 Lux / Matrix IR LEDs (120 m)
Minimal illumination Color: 0.1 Lux, B / W: 0.01 Lux

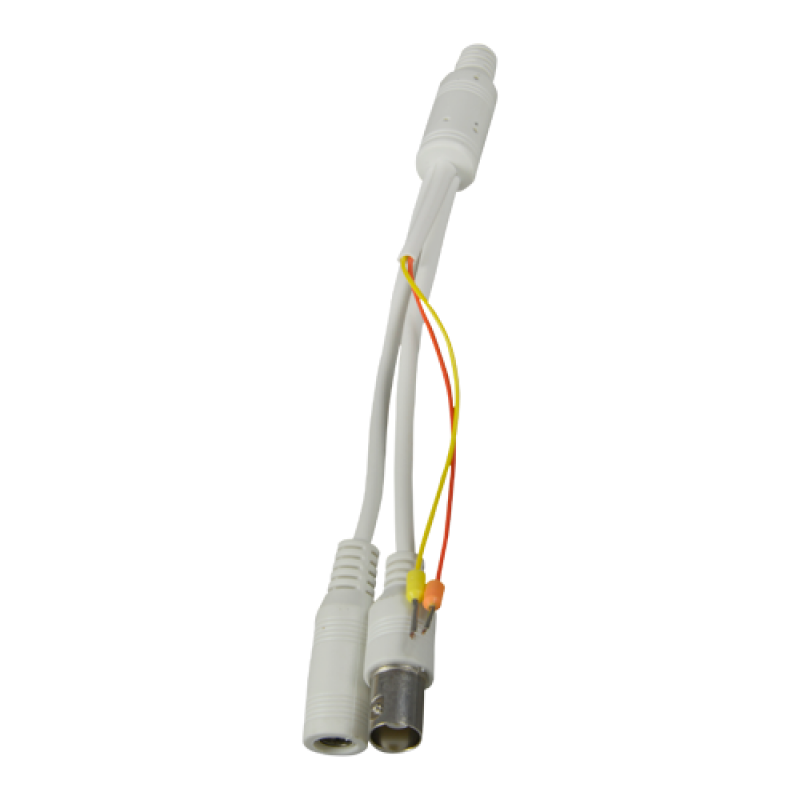

Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Day / Night Removable ICR mechanical filter (double day / night)
Weight 1000 g
General Characterisitics
Temperature regulation Automatic thermostat control
Protection Grade Weather resistant IP66
Temp. operation -40º C ~ 60º C
Dimensions 315 (D) x110 (W) x170 (H) mm
