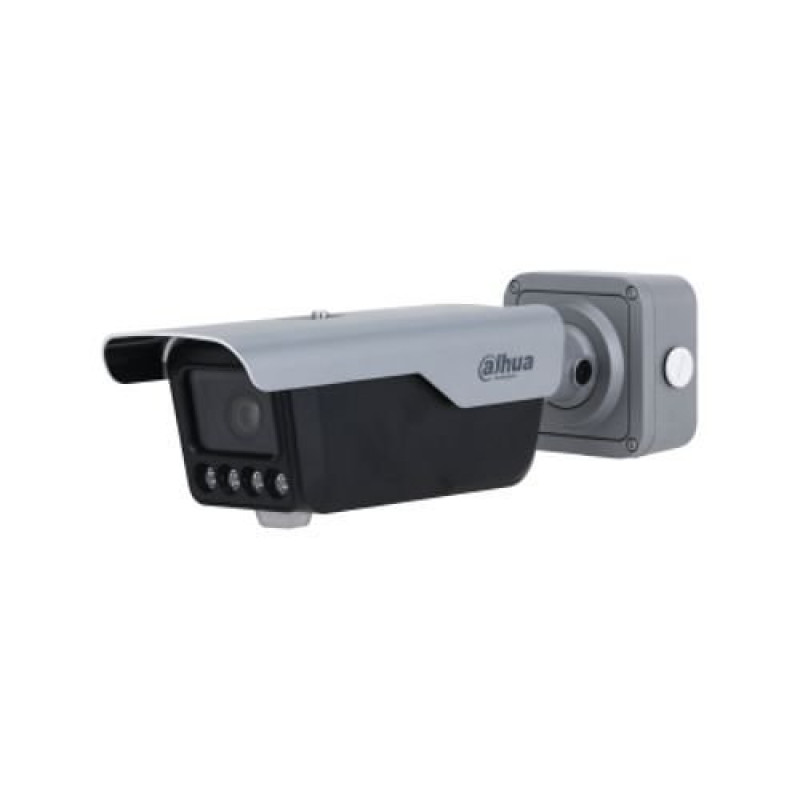

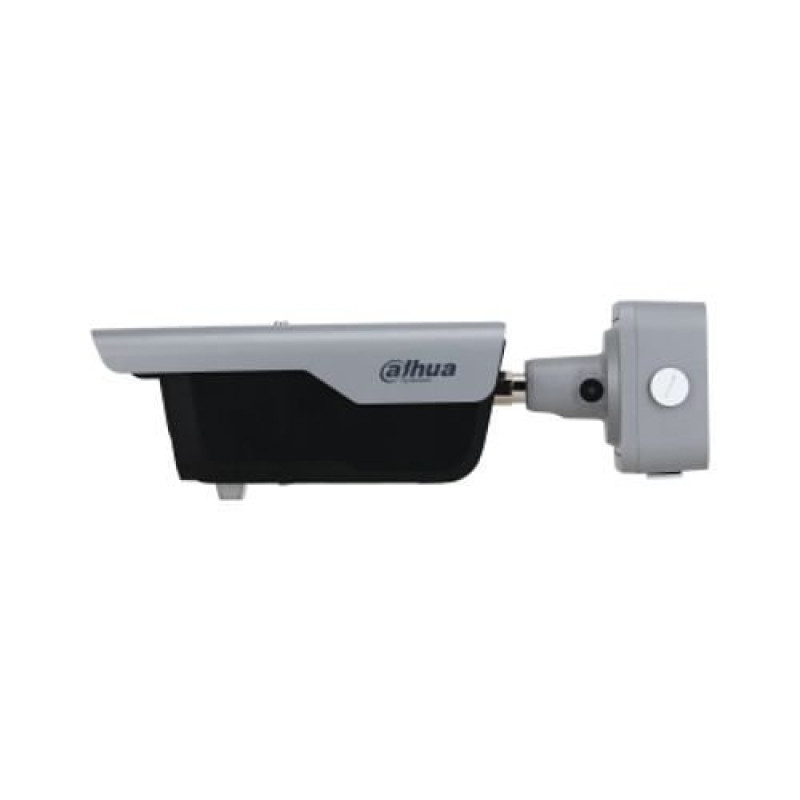

AI access Smart ANPR 4 Megapixel WDR Camera | 8- 32mm motorized lens | with IR | single lane | max 20 metre distance | max 120km / hr. | Integration of the LPR algorithm into the camera | structuring of vehicle data
  • Brand: Dahua
  • Product Code: DHI-ITC413-PW4D-IZ3 (868)
  • Availability: On request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

AI access Smart ANPR 4 Megapixel WDR Camera | 8- 32mm motorized lens | with IR | single lane | max 20 metre distance | max 120km / hr. | Integration of the LPR algorithm into the camera | structuring of vehicle data


Dahua AI access Smart ANPR 4 Megapixel WDR Camera, 8- 32mm motorized lens, with IR, single lane, max 20 metre distance, max 120km / hr, Integration of the LPR algorithm into the camera, structuring of vehicle data : license plate recognition, vehicle size, vehicle color detection, etc., with junction box, wiegand and output SHA-1 26 bit

Integrated ANPR function, list, barrier output, IP67/ IK10, 140dB WDR, I / O alarm, audio I / O, 12Vdc/PoE+ , Integrated LPR Deep Learning Engine,Vehicle Detection: Supports vehicle video detection with a high detection rate; Supports vehicle direction detection-Structuring vehicle data: license plate recognition, vehicle size, vehicle color detection, etc.-Vehicle Size Detection: Supports the detection of 9 vehicle sizes, Vehicle Color Detection: Supports the detection of 12colors (day), vehicle logo's (147)

  • Dahua IP ANPR camera
  • Installation material for mounting
  • User instructions
Camera
Image Resolution 2688 × 1520
Max. Detection Speed DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h
Image sensor 1/1.8" CMOS
ROM 1 GB
RAM 4 GB
Electronic Shutter Speed Auto/Manual 1/25s~1/10,000
Scanning System progressive scanning
Min. Illumination 0.001 Lux@F1.6 (Color, 30 IRE) 0.0002 Lux@F1.6 (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio >56 dB
Lens
Field of View H: 39.9° (W)—15.1° (T) V: 21.8° (W)—8.5° (T) D: 46.6° (W)—17.4° (T)
Focus Control Auto, area focus, manual
Iris Control P-Iris
Lens Type Motorized Vari-focal
Number of Lens 1
Focal Length 8 mm–32 mm
Max. Aperture 1.6
Illuminator
Illumination Distance ANPR: 20 m (65.62 ft) Video monitoring: 60 m (196.85 ft
Illuminator Number 4
Illuminator On/Off Control Auto, manual
Illuminator Type 850 nm
Infrared Wavelength 850 nm
Smart Illumination According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time
Video
Image Tampering Prevention Yes. Watermarks can be added to videos and images. The watermark can also be verified.
Scene Self-adaptation (SSA) Yes
Video bitrate H.264B: 2,179 kbps–13,074 kbps H.264M: 2,179 kbps–13,074 kbps H.264H: 2,179 kbps–13,074 kbps H.265: 2,179 kbps–13,074 kbps MJPEG: 6,537 kbps–39,223 kbps
Video Resolution Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720) Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)
Video Compression H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M
Stream Capability PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps); NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)
Bit Rate Control CBR; VBR
Gain Control Manual; Auto
Noise Reduction 3D NR
Region of Interest (RoI) Yes, 3
Function
Alarm Linkage Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence
Basic Event Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access.
Capture Distance 8 m–20 m (26.25 ft–65.62 ft)
Detected Width 6 m–8 m (19.69 ft–26.25 ft)
IVS Intrusion detection, loitering detection, up to 4 areas can be set.
Restricted List/Trusted List Allowlist: 110,000 Blocklist: 110,000
Sound and Light Alarm Yes, blue & red indicator, and supports broadcasting custom audio
Storage Built-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G
DORI Distance
Lens W: Detect 160.0 m (524.93 ft)
Lens W: Identify 16.0 m (52.49 ft)
Lens W: Observe 64.0 m (209.97 ft)
Lens W: Recognize 32.0 m (104.99 ft)
Lens T: Detect 406.9 m (1334.97 ft)
Lens T: Identify 40.7 m (133.53 ft)
Lens T: Observe 162.8 m (534.12 ft)
Lens T: Recognize 81.4 m (267.06 ft)
Network
Network protocols HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
SDK and API Yes
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; ITSAPI; P2P
Browser Plug in: IE 9, 10, 11. Chrome 52 and earlier versions Firefox 42 and earlier versions No plug in: Chrome 92 and later versions
Security Username and password; MAC address; HTTPS; IEEE 802.1x; network access control
Management Software DSS Pro; DSS Express; Cybercity; Smart PSS
BLC Yes
Day/Night IR filter, support three modes: color/B/W/au
Digital Detail Enhancement (DDE) Yes
HLC Yes
Image Encoding Format JPEG
Image Setting Brightness; contrast; saturation; gamma; sharpness; gain; white balance
OSD Overlay Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)
WDR 140 dB
White Balance Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp
Audio
Audio Port Yes
Built-in Speaker Yes; Power: 2 W
Built-in MIC Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k.
Port
Alarm Input 2, optocoupler input (wet node on-off value: 5
Alarm Output 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers
Audio Output 1 channel (RCA port)
Network Port RJ-45 (10/100/1000 self-adaptive Ethernet Port
Reset Button Yes
RS-485 2 (half duplex,Transparent,DHRS,Push Data through Serial Port)
Wiegand 1 channel, SHA-1 26 bit
Performance
Max. Number of Connections 10
Maximum Number of Passed Vehicles 10.000
Intelligence
AI Recognition Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate
Capture Rate In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%
Country and Region Supported by ANPR Baseline support: GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon) Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia) Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana) North America (United States, Canada) Can be customized: Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Japan, Zambia, Mozambique, South Africa, Mauritius
Recognition Rate In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%
Vehicle Brand Recognizes 147 vehicle logos.
Vehicle Color Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow
Vehicle Type Recognition Recognizes 9 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup
Video Metadata Displays the intelligent frame, plate and vehicle paths.
General
Communication Band 433 MHz; 868 MHz
Material Aluminum alloy body+Plastic
Power Consumption Power consumption in different conditions: No lighting < 6 W Lighting <12 W Speaker and Red/Blue Light Warning on < 17 W
Power Supply 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W
Protection Class IK10; IP67
Remote Control Distance 15 m (49.21 ft) (In an open, undisturbed environment
Net Weight 2.3 kg (5.07 lb)
Gross Weight 3.2 kg (7.05 lb)
Remote control Yes
Dimensions 396.0 mm × 120.8 mm × 127.8 mm (15.59" × 4.76" × 5.03") (L × W × H)
Environmental
Operating Humidity 10%–90% (non-condensing)
Storage Humidity –40 °C to +70 °C (–40 °F to +158 °F)
Operating temperature –30 °C to +65 °C (–22 °F to +149 °F)
Storage temperature ≤ 95% (non-condensing)
Certifications
Certifications CE-EMC; CE-LVD; CE-RED; FCC; FCC-ID
