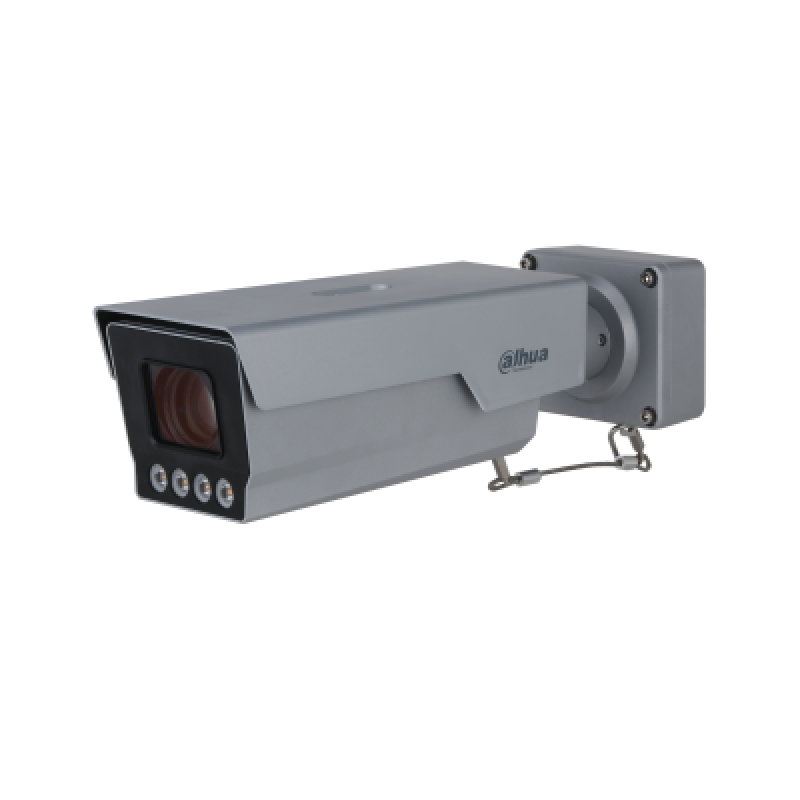

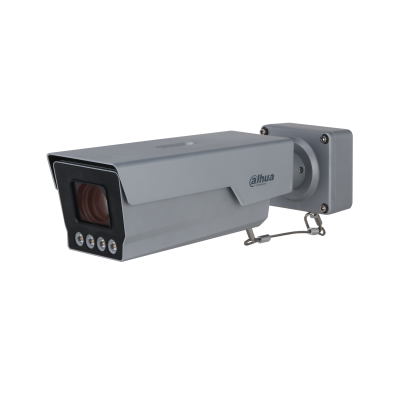

Dahua AI Enforcement camera ANPR 4 Megapixel WDR ANPR Camera, for speed up to 120KM/hr, 10-40mm motorized lens, with IR, up to 3 lanes , max 120km / hr, Integration of the LPR algorithm in the camera
  • Brand: Dahua
  • Product Code: DHI-ITC431-RW1F-IRL8
  • Availability: No Stock | Reserve
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Dahua AI Enforcement camera ANPR 4 Megapixel WDR ANPR Camera, for speed up to 120KM/hr, 10-40mm motorized lens, with IR, up to 3 lanes , max 120km / hr, Integration of the LPR algorithm in the camera


Dahua AI Enforcement camera ANPR 4 Megapixel WDR ANPR Camera, for speed up to 120KM/hr, 10-40mm motorized lens, with IR, up to 3 lanes , max 120km / hr, Integration of the LPR algorithm in the camera, structuring of vehicle data : recognition of the license plate, size of the vehicle, detection of the color of the vehicle, integrated in the NVR5 series

Intelligence, Target Detection , Face Detection , License Plate Recognition ,Vehicle Type Recognition , Vehicle Color Recognition, Motor Vehicle Violation, Non-motor Vehicle Violation Capture ,Traffic Flow Detection, Traffic Event Detection, Video Metadata, alarm I/O 3/2, audio I/O, 12Vdc/36Vdc/ PoE, IP67


  • Dahua ANPR IP Camera
  • Installation material
  • User manual
System
Main Processor High-performance embedded processor
Basic
Bad Pixel Correction Yes
Edge Enhancement Yes
Electronic Shutter Speed 1/25 s–1/100000 s (manual/auto)
Exposure Mode Full auto, customized auto, customized
HLC Yes
Illuminator Number 4 illuminators (850nm IR LED illuminators, brightness adjustable)
Image Resolution 2688 × 1520 (OSD black strip excluded)
Image Sensor 1/1.8'' CMOS
Iris Control Fixed iris/manual iris/auto iris/P iris
Noise Reduction 2DNR/3DNR
Picture Encoding Format JPEG
Shutter Mode Single shutter
Video bitrate H.264: 32kbps–32767kbps H.265: 32kbps–32767kbps MJPEG: 512kbps–32767kbps
Video Compression H.265/H.264M/H.264H/H.264B/MJPEG
Video Frame Rate Maximum 25fps; main stream (2688 × 1520@25fps), sub stream (1600 × 1200@25fps)
Video Resolution 4M (2688 × 1520)/1080P (1920 × 1080)/UXGA (1600 × 1200)/720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288)
WDR 90 dB
White Balance Auto/outdoor/manual/local white balance/natural light/ street light
Function
Alarm Event Storage full, storage error, external alarm, no storage card, license plate blocklist, illegal access, network disconnection, and IP conflict
Auto Registration Yes
Automatic Network Replenishment (ANR) Platform, FTP (TF card is required)
Composite Image Supports composing 1, 2, 3, or 4 pictures
Drawing Detection Line Supports automatically drawing detection lines
Image Tampering Prevention Yes. Watermark and verification are available for videos and pictures
OSD Overlay Motor vehicles: Time, location (video channel location), lane (number, direction), plate (number and color), speed, region, vehicle color, vehicle logo, vehicle type Non-motor vehicles: Helmet, passenger overloading
Security Authorized username and password, MAC address binding, HTTPS encryption, and network access control
Storage FTP, TF card (maximum 256GB@Class10)
Time Synchronization Yes. NTP
Trigger Mode Video detection/radar
Port
Alarm Input 3 channels
Alarm Output 2 channels. 1 for relay, and 1 for optocoupler
Audio Input 1
Network 1 RJ-45 Ethernet port, 10/100/1000M network transmission
RS-232 2 ports. G T R for serial debugging, and G T1 R1 for connecting to radar
RS-485 1, connecting to devices such as radar
Storage 1, supports maximum 256GB TF card local storage
Intelligence
Face Detection Face cutout of driver and front-seat passenger of motor vehicles, and non-motor vehicle driver
License Plate Recognition Adopts self-developed algorithm to recognize license plates combining numbers and letters
Motor Vehicle Violation Capture Overspeed, underspeed, wrong-way driving, illegal lane change
Non-motor Vehicle Violation Capture Overloading, not wearing a helmet
Target Detection Motor vehicles and non-motor vehicles
Traffic Event Detection Parking violations of motor vehicles, wrong-way driving, and traffic congestion
Traffic Flow Detection Statistics of vehicle flow, average speed, vehicle type, lane occupancy, average time headway, average queue length, road status, and more; statistics can be exported in Excel
Vehicle Color Recognition White, pink, black, red, yellow, gray, blue, green, amber, purple, brown, silver gray (color cannot be recognized in IR mode during nighttime)
Vehicle Type Recognition Vehicle head: Coach bus, medium bus, SUV, MPV, pickup, heavy truck, medium truck, car, van, and light truck Vehicle tail: SUV, car, van, coach bus, pickup, cargo truck, mini truck, tank truck, and mixer truck
Video Metadata Motor vehicle: License plate, vehicle type, vehicle color, license plate color, vehicle logo, and more (color cannot be recognized in IR mode during nighttime) Non-motor vehicle: Type (two-wheelers, three-wheelers), color, wearing a helmet or not, passenger (1, 2, 3, or more passengers)
General
Max Speed that the Camera Detects 120km/h
Operating humidity 10%–90%
Operating temperature −40°C to +65°C (−40°F to +149°F)
Power Consumption ≤ 8W
Protection Class IP67
Vehicle Recognition Vehicle recognition rate ≥95%
Certifications CE, FCC, UL
Power Supply 12V DC, 36V DC, PoE
Mounting Supports installation with universal mounting bracket, or side-mounted on pole with mounting bracket
Net Weight 2.8 kg (6.17 lb)
Gross Weight 4.5 kg (9.92 lb)
Lens Built-in 10 mm–40 mm motorized vari-focal lens
