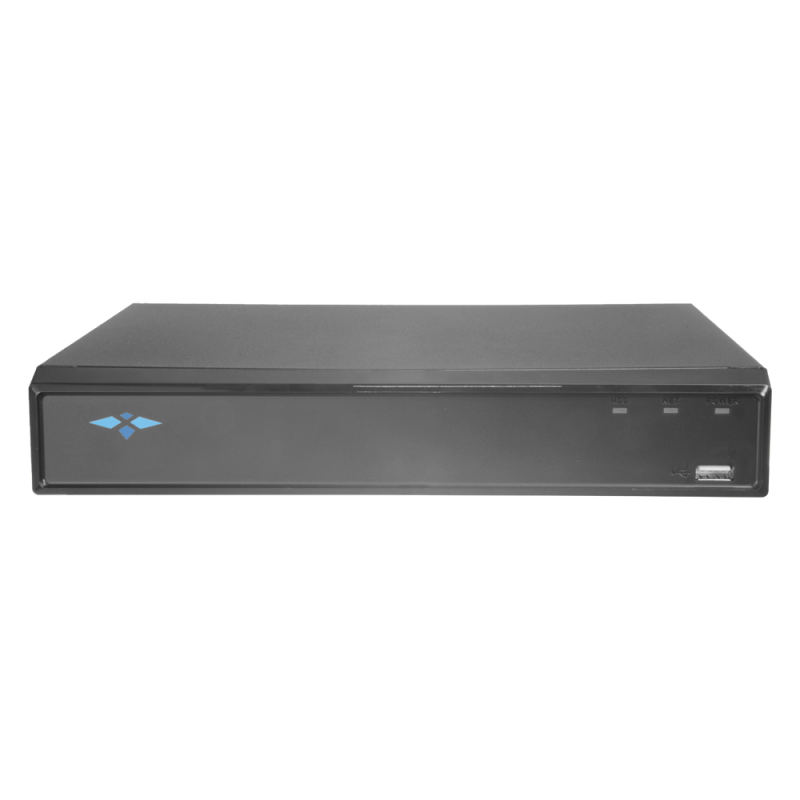

DVR 5n1 X-Security - 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8Mpx) - Alarms : Audio over coaxial - Resolution 4K (7FPS) - 2 CH facial recognition - 8 CH Human and vehicle recognition
  • Brand: X-Security
  • Product Code: XS-XVR6116AS-4KL-2AI
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

DVR 5n1 X-Security - 16 CH HDTVI/HDCVI/AHD/CVBS (4K) + 16 IP (8Mpx) - Alarms : Audio over coaxial - Resolution 4K (7FPS) - 2 CH facial recognition - 8 CH Human and vehicle recognition


  • X-Security
  • XVR 5n1
  • 16 CH video HDTVI/HDCVI/AHD/CVBS / 16+16 IP / 16 CH audio
  • H.265+/H.265/H.264+/H.264
  • Resolution 4K (7FPS) or 6Mpx (10FPS) or 5Mpx (12FPS) 4K-N, or 4MP/3MP (15FPS) 4M-N/1080P/720P/960H/D1/CIF or (25/30FPS) [%VAR%] [%VAR%]
  • PTZ Control (RS485/Coaxial)
  • Audio over coaxial
  • Alarms
  • HDMI Full HD, VGA & CVBS Outputs
  • 2 CH comparison of face
  • Human and Vehicle Recognition (Available for 8 CH coaxial video)
  • Mouse
  • 2 USB Ports
  • Space for 1 HDD



  • DVR 5 in 1 X-Security
  • Mouse
  • Adapter AC/DC 12 V / 1.5 A

alt



Article
Brand X-Security
Product Code XS-XVR6116AS-4KL-2AI
General
Internal storage 1 SATA HDD 3.5" of up to 16 TB (not included)
Power DC 12V / 2A
Coding All channel: 4K(1 fps–7 6MP(1 fps–10 fps); 5MP(1 fps–12 4K-N, fps); 4MP/3MP(1 fps–15 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 fps)
Dual-Stream encoding 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)
Video format HDTVI / HDCVI / AHD / CVBS / IP
Hybrid configuration Up to 16 IP Channels (8Mpx), replacing all the BNC channels
Recording method Manual, programmed, motion detection, alarm
Remote Access Web browser (ActiveX), mobile phone application or PSS software
Video inputs 16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Communication RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Video outputs 1 HDMI Full HD, 1 VGA
Audio inputs 16 BNC, 8 RCA channels
Display Resolution HDMI: 4K, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Video / audio compression H.265+/H.265/H.264+/H.264
Audio outputs 1 Channel RCA
Total bandwidth 128 Mbps
Bidirectional audio Reusing the audio input/output
Intelligent motion detection Up to 8 channels capable of classifying targets amongst humans and vehicles
Alarms 8 input / 3 relay
video analysis IVS: Tripwire | Area intrusion | Abandoned object | Face detection IP Mode, Face Recognition and IVS cannot be enabled at the same time
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Dimensions / Weight 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 Kg
Facial recognition Up to 2 analog channels for live face comparison
Backup USB / Network
