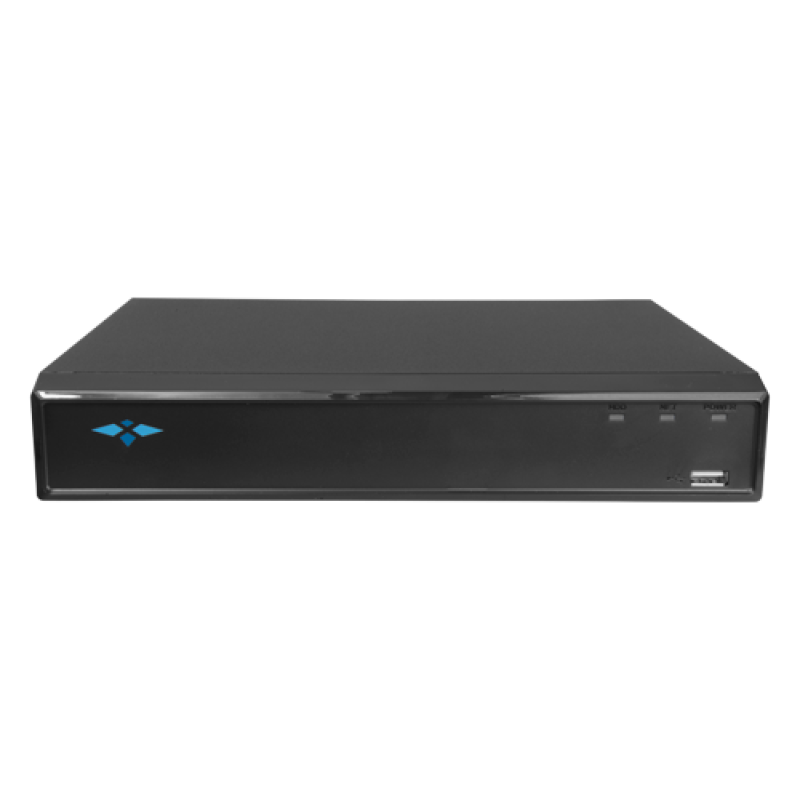

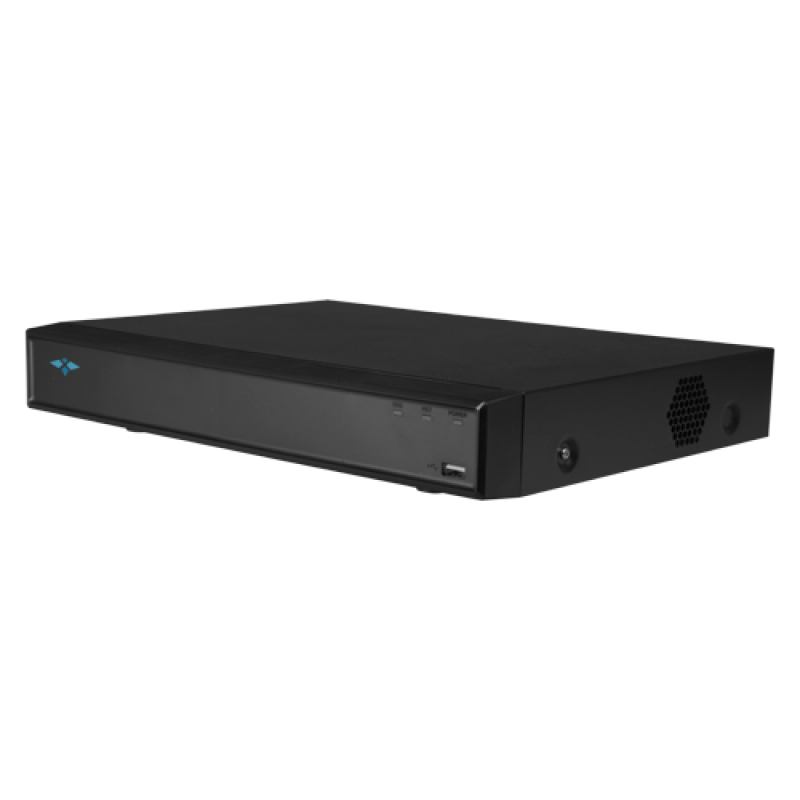

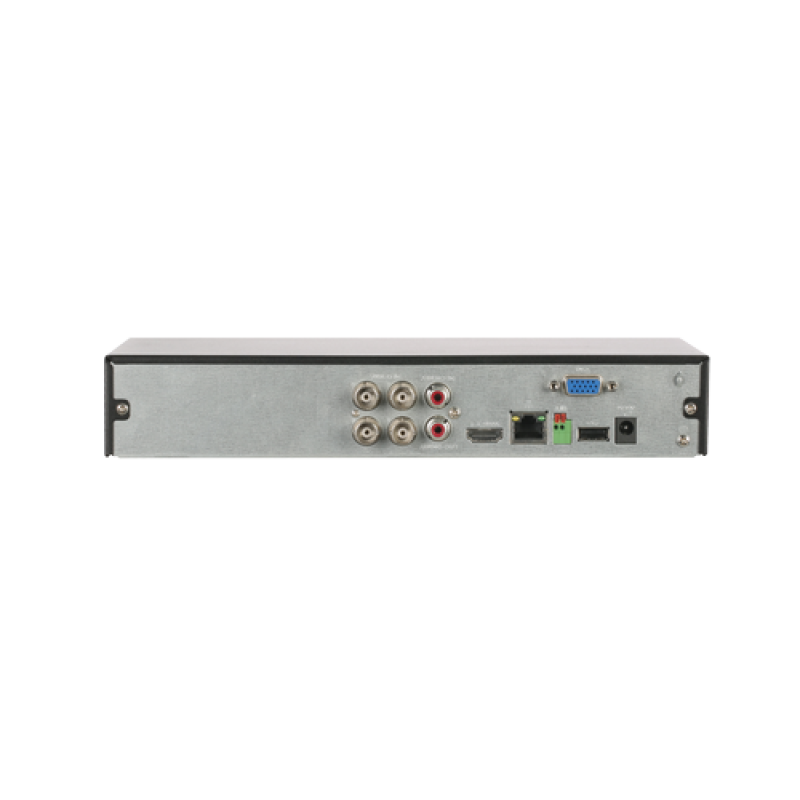

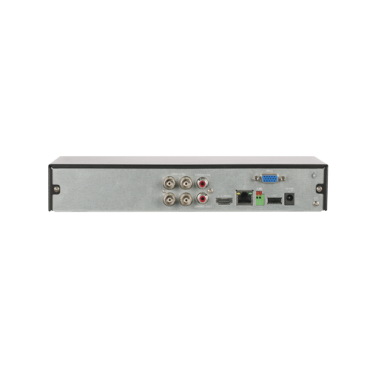

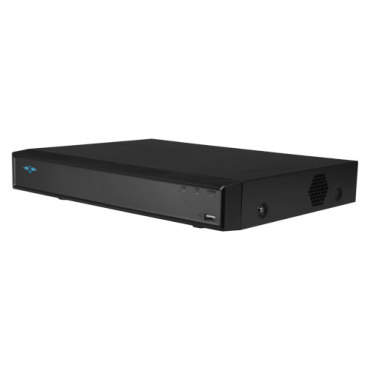

DVR 5n1 X-Security - 4 CH HDTVI / HDCVI / AHD / CVBS / 4+1 IP - 1080p (25FPS) | H.265+| SMD+ - Audio 1 input/1 output by RCA - Full HD and VGA HDMI output - Supports 1 hard disk
  • Brand: X-Security
  • Product Code: XS-XVR3104-HV
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

DVR 5n1 X-Security - 4 CH HDTVI / HDCVI / AHD / CVBS / 4+1 IP - 1080p (25FPS) | H.265+| SMD+ - Audio 1 input/1 output by RCA - Full HD and VGA HDMI output - Supports 1 hard disk

  • X-Security
  • XVR 5n1
  • 4 CH HDTVI/HDCVI/AHD/CVBS video / 4+1 IP / 1 CH two-way RCA audio
  • Compression H.265+/H.265/H.264+/H.264
  • Resolution up to 1080P
  • SMD PLUS
  • Audio
  • HDMI and VGA output
  • Mouse
  • Space for 1 HDD SATA 6 TB



  • DVR 5 in 1 X-Security
  • Mouse
  • Adapter AC/DC 12 V / 1.5 A

alt


Article
Brand X-Security
Product Code XS-XVR3104-HV
POWER
Power DC 12 V / 1.5 A
General
Video format HDTVI / HDCVI / AHD / CVBS / IP
Hybrid configuration Up to 10 IP Channels (6Mpx), replacing all the BNC channels
Recording method Manual, programmed, motion detection (up to 396 zones)
Remote Access Web browser (ActiveX), mobile phone application or PSS software
Storage 1 HDD SATA 3.5" of up to 6TB (not included)
Two way audio Reusing the audio input/output
Video Input 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Weight 0.8 kg
Communication 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Audio inputs 1 Channel RCA
Audio outputs 1 Channel RCA
Intelligent functions POS Function | Bidirectional Audio by RCA
Display resolution 1920x1080, 1280x1024, 1280x720
Video / audio compression H.265+/H.265/H.264+/H.264
Video output 1 HDMI full HD and 1 VGA
Recording resolution 1080N; 720p; 960H; D1; HD1; [%VAR%] BCIF; CIF
Main Stream coding First channel: 1080N, 720p (1~25/30FPS), Rest of channels: 1080N, 720p (1~15FPS) / 960H, D1,CIF (1~25/30 FPS)
Extra Stream coding CIF (1~7 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarm No
SMD+ Filtering of false alarms of people and vehicles in movement detection
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
General Characterisitics
Dimensions 260.0 (B) × 237.9 (D) × 47.6 (H) mm
