IBOARD 75'' 4K interactive display - (Optional) Side boards - Resolution 3840x2160 - HDMI, VGA, DP, Type-C, LAN, USB and OPS Inputs - 178º Viewing angle - Integrated speakers
  • Brand: IBOARD
  • Product Code: IB-TE-YL-75E2
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

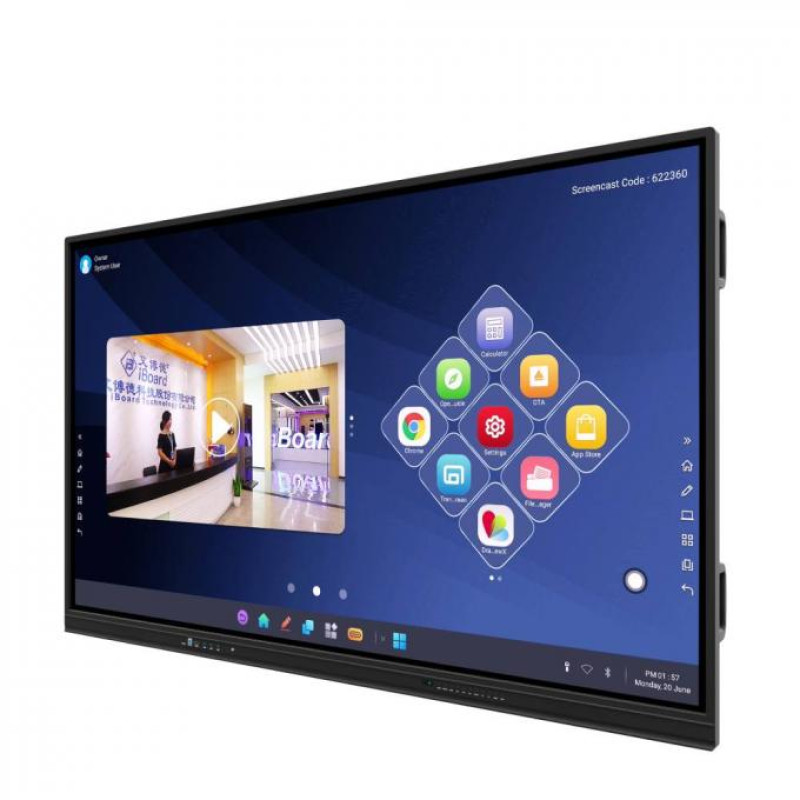

IBOARD 75'' 4K interactive display - (Optional) Side boards - Resolution 3840x2160 - HDMI, VGA, DP, Type-C, LAN, USB and OPS Inputs - 178º Viewing angle - Integrated speakers


  • IBOARD
  • Interactive touch screen 75'' 4K
  • TE-MP Series
  • Anti-reflective glass of 4mm
  • D-LED Monitor
  • Resolution 3840x2160
  • Brightness 400cd/m2
  • Contrast 5000:1
  • Response time 8ms
  • Update frequency 60Hz
  • 178º Viewing angle
  • HDMI x3, DP x1, LAN x1, USB x6, Type-C x2, Touch x2, RS232 IN x1 inputs
  • Android 11.0
  • Multitouch ≤ 20



BrandIBOARD
Size (Inches)75''
Resolution 3840x2160 (4K) @ 60Hz
Brightness350 cd/m2
InputsHDMI x3, VGA & VGA Audio x1, DP x1 , Type-C x2, USB 2.0 x1, USB 3.0 x5, Touch x3, RS232 x1, RJ45 x1, MIC x1, TF Card Slot x1,
OutputsHDMI x1, Coaxial x1, Headphones x1, RJ45 x1
ConnectivityDual WiFi Card (Wifi6 + WiFi 5G), Bluetooth
CPUA73x4 + A53x4 @ 2.28GHz
Operating SystemAndroid 11.0
RAM8GB (DDR4)
Storage64GB

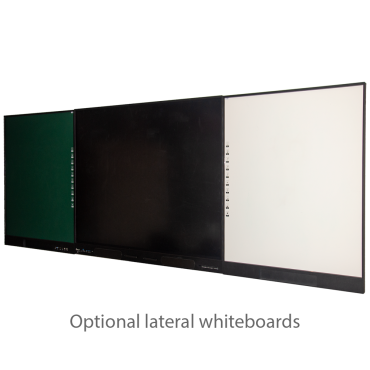

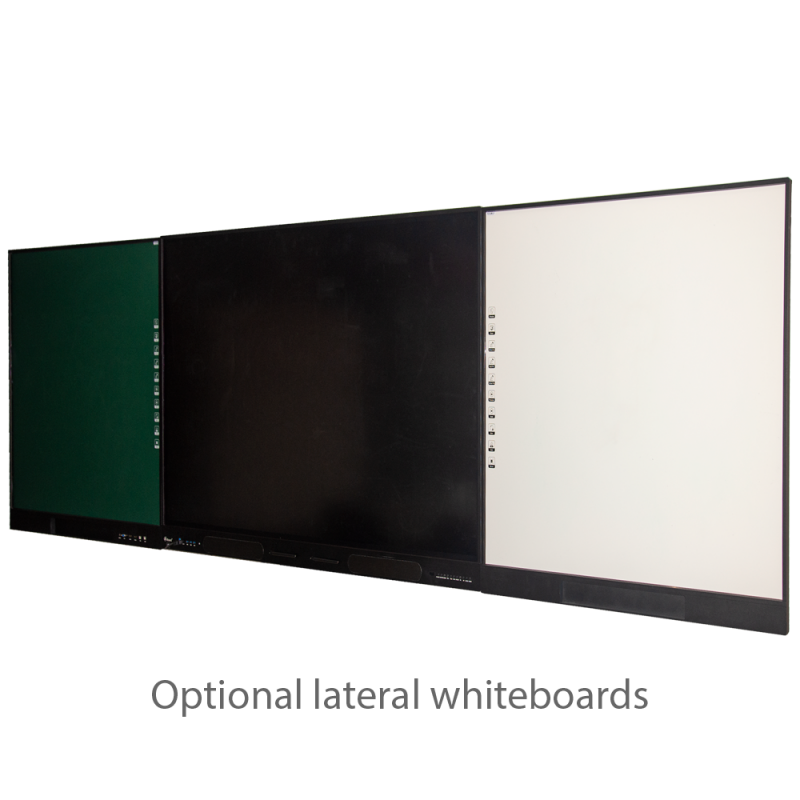

Side boards (Not included)1x Side chalkboard
1x Side whiteboard
Digitization of writing on side boardsSupported on Windows
Response time8ms
Viewing angle178º
Speaker2x20W + HIFI Subwoofer 20W
Anti-reflective glass4mm
Touch technologyInfrared touch screen frame
Simultaneous touches20
Minimal tactile target< 1mm
VESA 600x400 mm
Energy consumption350W
PowerAC 100 V ~ 240 V, 50/60 Hz
Dimensions1700mm (W) x 1047mm (H) x 82.6mm (D)
Weight56 kg


  • Interactive touch screen 75'' 4K IBOARD
  • 1x Power cable
  • 1x Remote control
  • 2x Pencil
  • 1x HDMI Cable
  • 1x USB-B to USB-A Cable
