- Brand: Aritech
- Product Code: ATS1210E
- Availability: Price / delivery time on request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

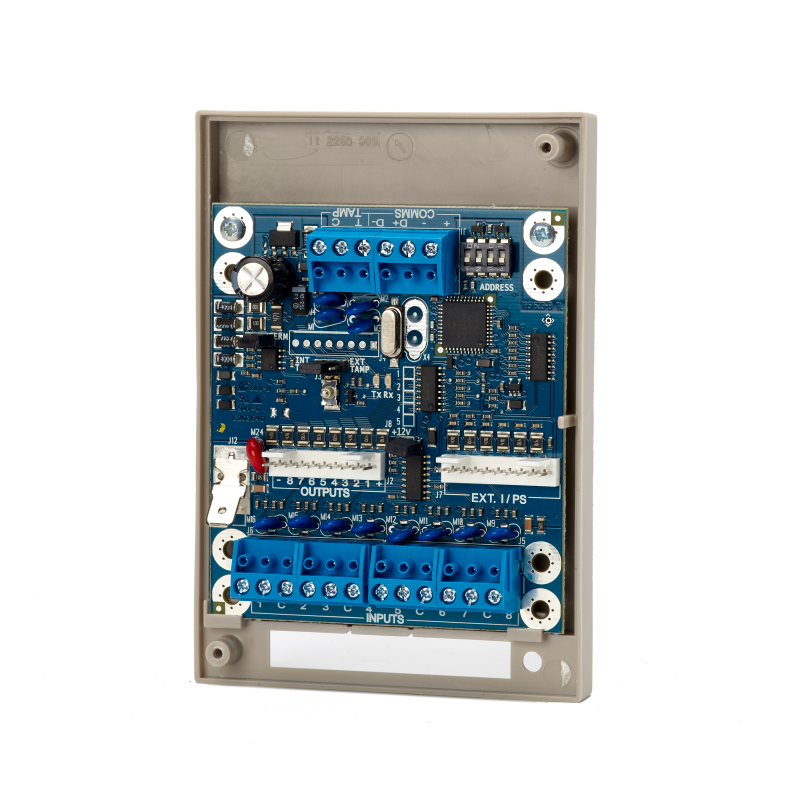

ATS 8 inputs DI with 8 OC outputs in plastic housing
- 8 inputs on board
- 8 OC outputs on board

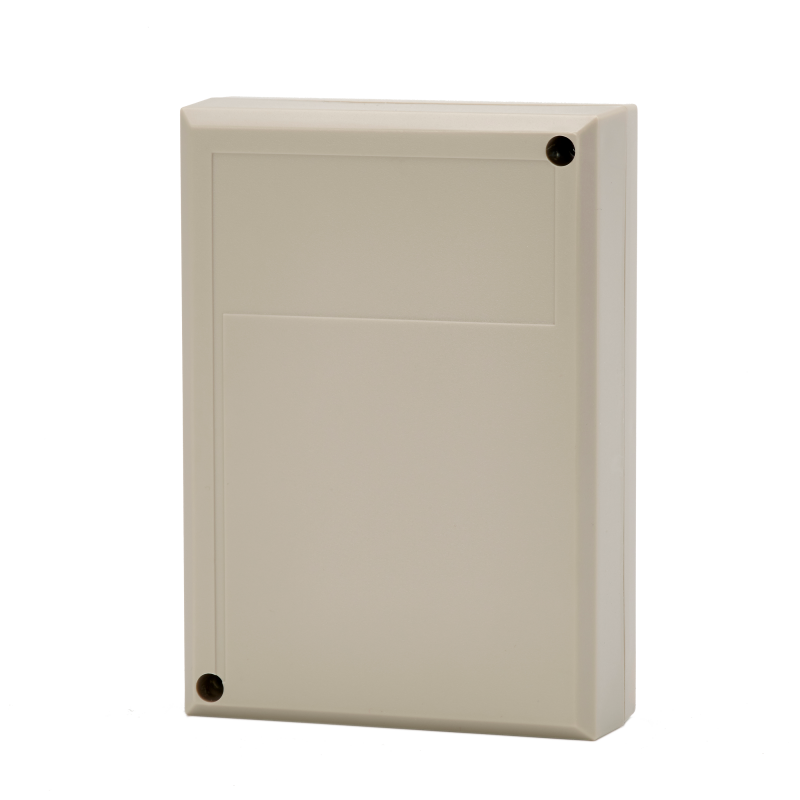

- ATS1644 plastic enclosure with tamper protection
- EN50131 Grade 3
- PD6662:2010
- 1x ATS1210E
| Article | |
| Brand | Aritech |
| Product Code | ATS1210E |
| OPERATING ENVIROMENT | |
| Operating temperature | -10 to +55°C |
| Ingress Protection Rating | IP30 |
| POWER | |
| Operating Voltage | 10.5 to 13.8 VDC |
| General | |
| Expander type | Input expander |
| Product Line | Advisor Advanced, ATS Master |
| Connection type | Databus connection |
| Compatibility | Advisor Advanced, Advisor Master |
| Max. per panel | 15 / 30 (depending on panel type) |
| Max. distance from panel | 1.5 km |
| Relative humidity | 95% noncondensing |
| Specified cable | WCAT52 / WCAT54 or equivalent |
| Weight | 190 gr |
| Current consumption | 53 mA |
| Housing | Small plastic |
| Material | ABS |
| Addressing | DIP Switches |
| Total inputs | 8 |
| End-of-line resistor | Selectable |
| Onboard inputs | 8 |
| Physical dimensions | 86 x 125 x 36 mm |
| Total Outputs | 8 |
| Onboard Outputs | 8 |
| Type of outputs | Open Collector |
| Environment | EN50130-5 ; Class II - Indoor (General) |
| Integrated power supply | No |
| Certification | VdS |
| Compliancy | CE |
