- Brand: Aritech
- Product Code: ATS624
- Availability: Price / delivery time on request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.
4 Relay card for Advisor Advanced
- Expand Advisor Advanced panel with 4 relay outputs on the PCB
- SDPT (NO-C-NC)
- Extend with 4 additional relays using 1 x ATS1810
- Plug-in on Advisor Advanced panels
- Relay contact rating: 1A @ 30VDC or 21VAC

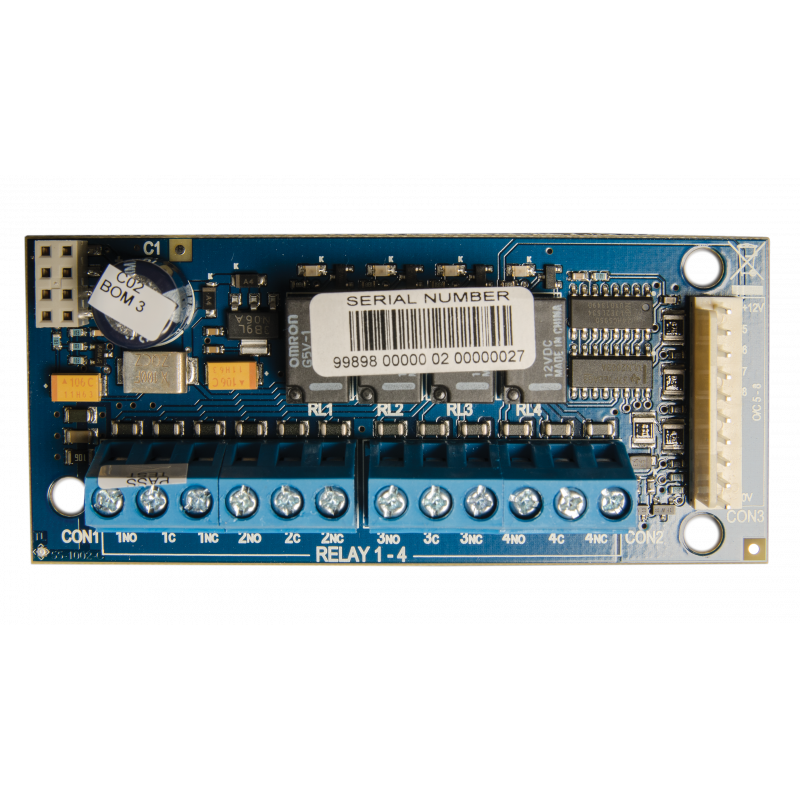

Four relay plug-in output expander
The
ATS624 offers a four relay output expansion to Advisor Advanced panels.
To reduce required space in the Main control panel housing, the unit is
a plug-in to the Main Control panel PCB.
The ATS624 provides for four outputs available through screw terminals,
all supporting a 1A relay. In addition it provides an extension to
connect four more relays using the ATS1810 four 4-way relay cards. The
output function is defined through the output configuration in the main
control panel.
- 1x ATS624
| Article | |
| Brand | Aritech |
| Product Code | ATS624 |
| POWER | |
| Operating Voltage | 10.5 to 13.8 VDC |
| General | |
| Expander type | Output expander |
| Certification | CE, EN50131 Grade 3, VdS |
| Product Line | Advisor Advanced |
| Connection type | Plug-in |
| Max. per panel | 1 |
| Max. distance from panel | Located on Advisor Advanced PCB |
| Relative humidity | 95% noncondensing |
| Current consumption | 50 mA |
| Dimensions | 90 x 40 mm |
| Expandable Outputs | 4 (1x ATS1810) |
| Temp. operation | 0 to +50°C |
| Total Outputs | 8 |
| Onboard Outputs | 4 |
| Type of outputs | SPDT Relays |
| Environment | EN50130-5 ; Class II - Indoor (General) |
| Compliancy | CE |
