Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 250 / 750 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
  • Brand: Alean
  • Product Code: ABH-250L
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 250 / 750 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC

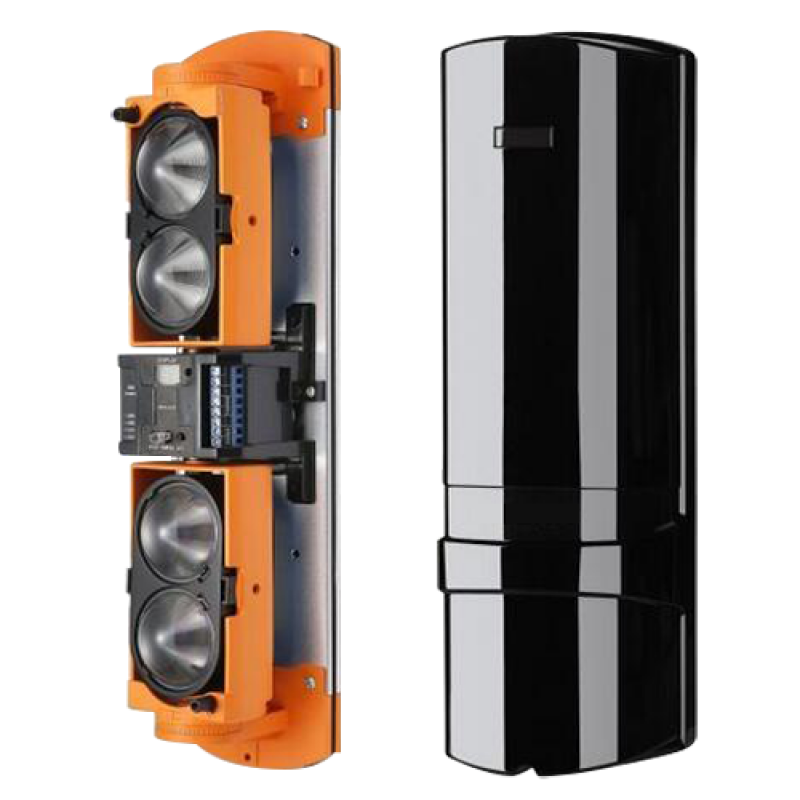

  • Quadruple infrared beam barrier for exterior
  • Wired
  • Maximum detection transmitter / receiver 750 m (interior) and 250 m (exterior)
  • Quadruple adjustable lens
  • H: ±90º / V: ±10º
  • AND/OR function
  • DIP Switch for programming
  • 4 work frequencies
  • Easy programming over LED Display
  • Power 12~24 VDC/VAC



Datasheet
Technical Datasheet in PDF   EN PDF -

Manuals
ABH-L v2.0   EN PDF 4.32 MB



  • Infrared barrier
  • Installation material
  • User instructions
