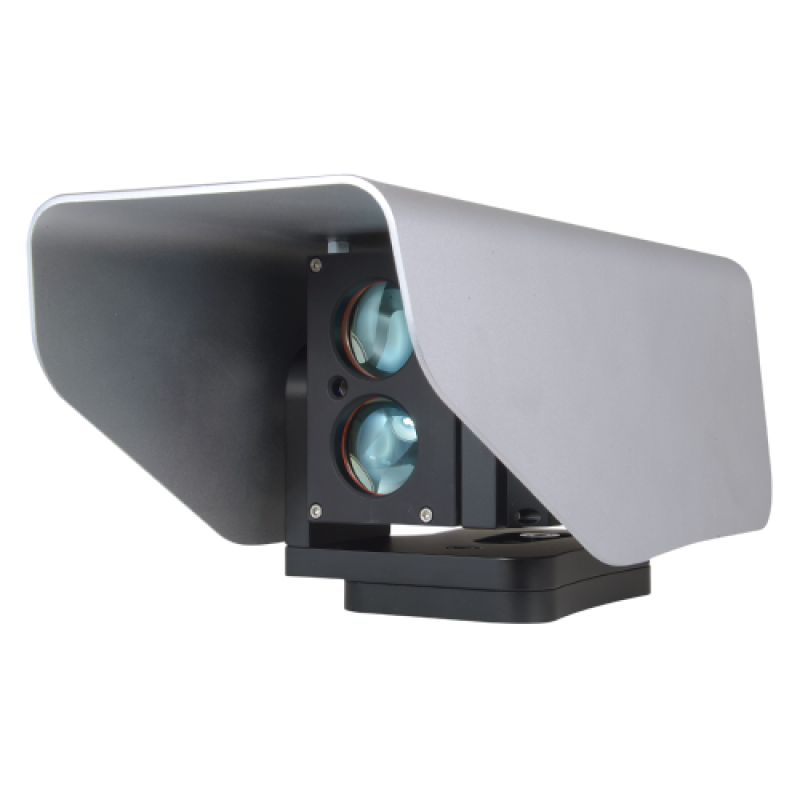

GJD outdoor laser detector - Powerful laser technology - Adjustable detection range up to 500 m - High reliability and precision - Power supply 12 VDC / PoE IEEE 802. 3af - outdoor use

Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Description

Datasheet

Datasheet

GJD515

PDF

0.66 MB

Resources

Beam Spread GJD515 EN v1.0	EN	PDF	0.20 MB
White Paper GJD515 EN v1.0	EN	PDF	2.33 MB

Manuals

Manual GJD515 IN v1.0	EN	PDF	3.51 MB
Quick Guide GJD515 EN v1.0	EN	PDF	2.50 MB

package contents

Specifications

Article
Brand	GJD
Product Code	GJD515
General
Alarm zones	Up to 20 individually programmable zones
IR Laser emission	Wavelength: 905 nm
Average consumption	4 W
Minimum target size	10 cm
Wired outputs	Alarm NO/NC (max 30 V / 200 mA)
Configuration	WEB Browser
Weight	2.4 kg
Technology	Laser Technology
Power	DC 12 V , PoE IEEE802.3af
Detection range	Up to 500 m
Temp. operation	-30 ºC ~ 60 ºC
Dimensions	120 (H) x 130 (W) x 250 (D) mm
Degree of protection	IP66
Tamper	Available: Anti tampering for change of direction
