- Brand: Oem
- Product Code: MC-EWPC
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

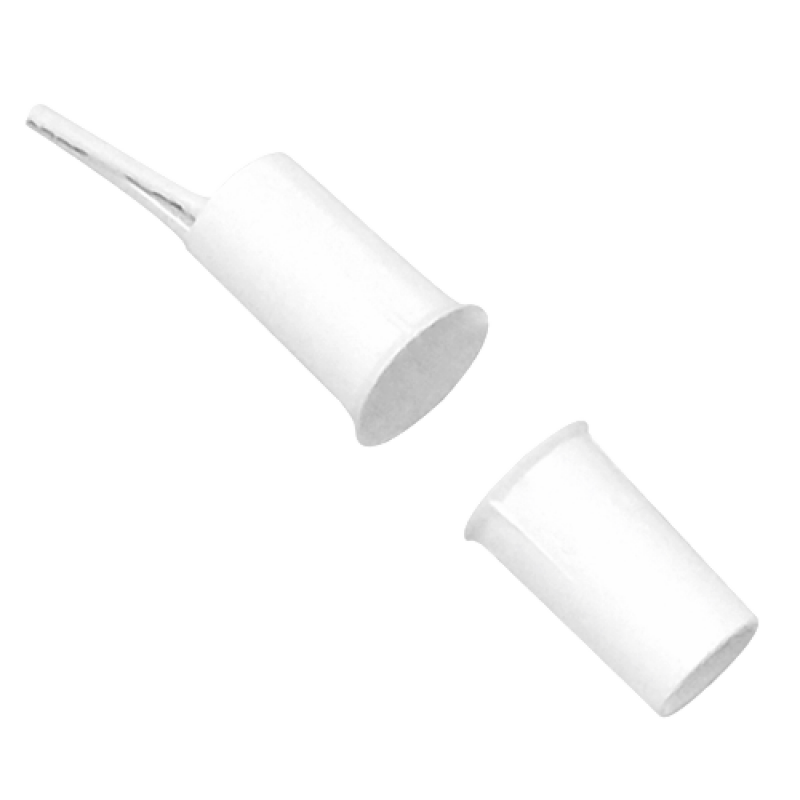

Magnetic contact - Suitable for installation in wood - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks
- Recessed magnetic detector
- Reed Technology
- Suitable for installation in wood
- Resistance to mechanical and electrical shocks
- 2-wire connection system
- Magnetic contact
- User instructions
| Article | |
| Brand | Oem |
| Product Code | MC-EWPC |
| General | |
| Material | Plastic |
| Maximum detection distance | Up to 15mm depending on the material where it is installed |
| Cable | 2 wires |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 15KgS |
| Technology | Reed |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Power | Medium power |
| Dimensions | Detector: 17 x Ø11-9 mm Magnet: 17 x Ø11-9 mm |
