- Brand: Oem
- Product Code: MC-SWPC-M1
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

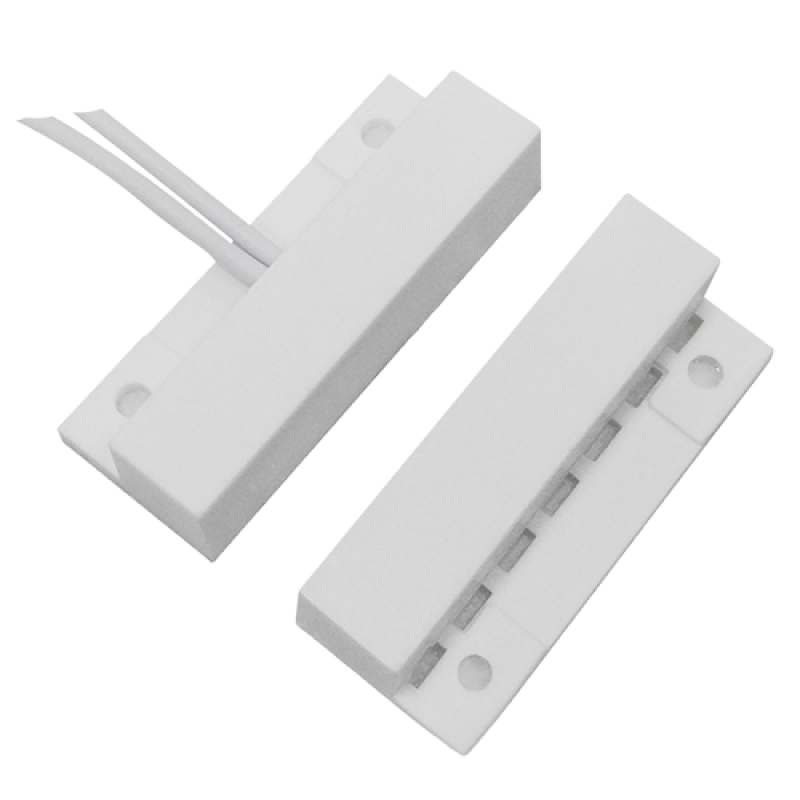

Magnetic contact - Suitable for installation in wood - Reed Detection Technology - Connection system by 2 wires - Resistance to mechanical and electrical shocks - Reduced size
- Magnetic surface detector
- Reed Technology
- Suitable for installation in wood
- Resistance to mechanical and electrical shocks
- 2-wire system
- Magnetic contact
- User instructions
| Article | |
| Brand | Oem |
| Product Code | MC-SWPC-M1 |
| General | |
| Material | Plastic |
| Maximum detection distance | Up to 20mm depending on the material where it is installed |
| Cable | 2 wires |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 14Kg |
| Technology | Reed |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Power | Medium power |
| Dimensions | Detector: 33.5 (W) x 13.5 (H) x 7.5 (D) mm Magnet: 33.5 (W) x 13.5 (H) x 7.5 (D) mm |
