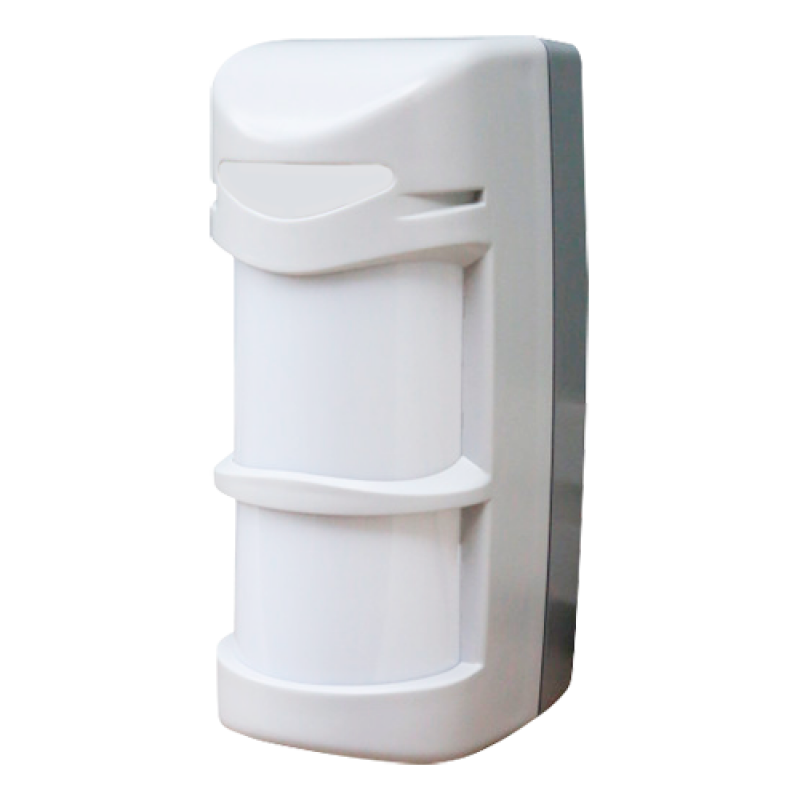

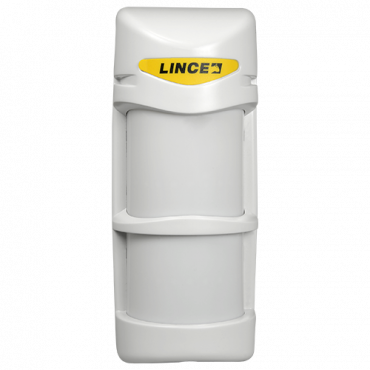

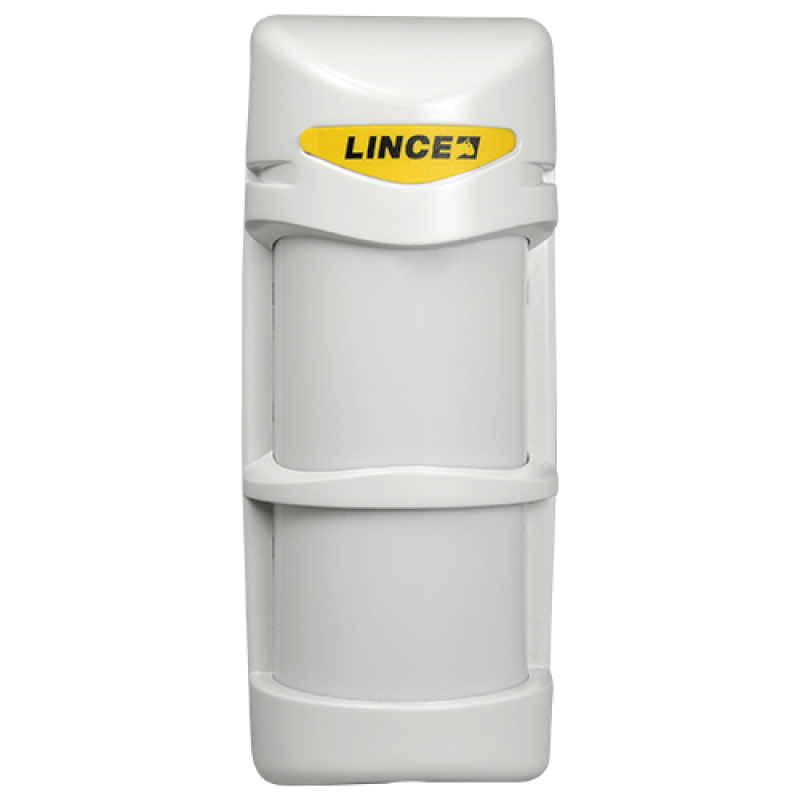

PIR low consumption curtain detector - Compatible with transmitter via radio - Double PIR, microwaves and antimasking - Detection 10 m / 5º - Battery power 3~9 VDC - Outdoor use
- LINCE
- Outdoor detector with low consumption
- Curtain mode
- Double technology: Microwaves and double PIR with antimasking
- Detection: Range 10 m / 5º
- Motion detection indicator
- Tamper-resistant opening
- Powered by batteries 3~9 VDC (low consumption) or 12VDC
- Compatible with transmitter via radio
- Outdoor use
- Degree of protection IP45
- Outdoor PIR Detector
- Instructions Manual
- Mounting material
| Article | |
| Brand | Lince |
| Product Code | LINCE-1926-RCDAM |
| General | |
| Sensitivity | Adjustable. 4 levels (DIP switch) |

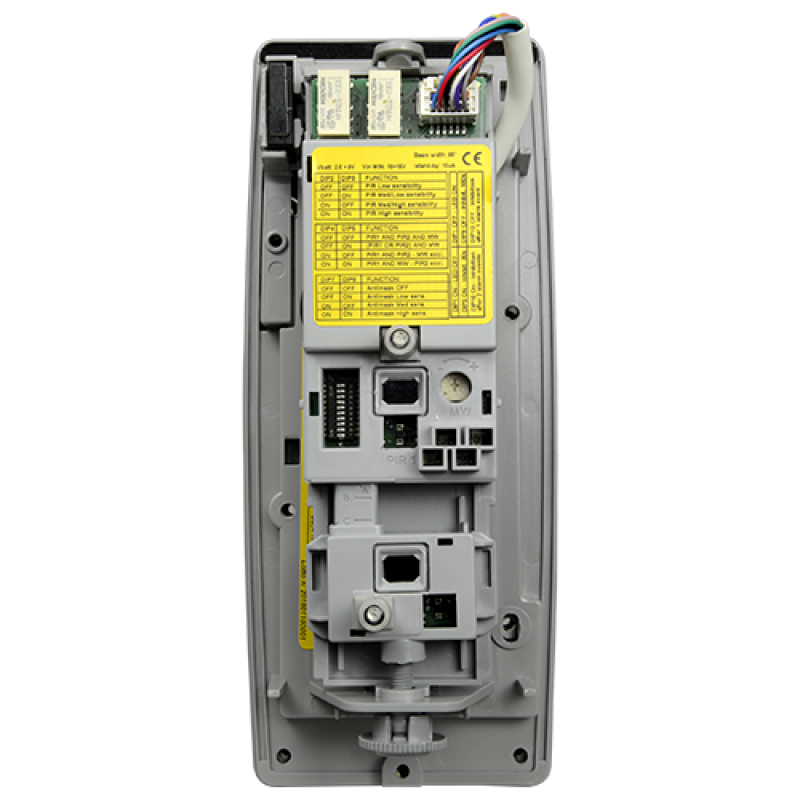

| DIP switch configuration | PIR sensitivity (4 levels), AND/OR function (PIR1, PIR2 and MW), Antimasking sensitivity, LEDs, battery saving mode (inhibition after 1 or 2 events during 30s or 180s) ) |
| Dimensions for transmitter | 148 (H) x 41.5 (W) x 26.5 (D) mm |
| Tamper-resistant opening | Available |
| Wired outputs | Alarm (NC/NO), Power, Antimasking (NC/NO) and Tamper (NC/NO) |
| Masking | Available |
| Technology | Double technology: Microwaves (24 GHz) and double volumetric PIR |
| Pet immunity | Available |
| Power | 3~9 VDC via battery / Minimal power consumption (Standby): 10 μA) 10~15 VDC through power supply |
| Detection range | 10 m / 5º / Installation 1.2 m |
| Temp. operation | -25ºC ~ +60ºC |
| Dimensions | 189(H) x 98(W) x 81(D)mm / 820g |
| Degree of protection | IP45 Suitable for outdoor |
| LEDs indication | Alarm (PIR1, PIR2 and MW) |
