B-TECH Narrow Bracket for Video Wall - Wall or tube mounting - Metallic structure
  • Brand: B-Tech
  • Product Code: BT8312
  • Availability: On Request
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

B-TECH Narrow Bracket for Video Wall - Wall or tube mounting - Metallic structure

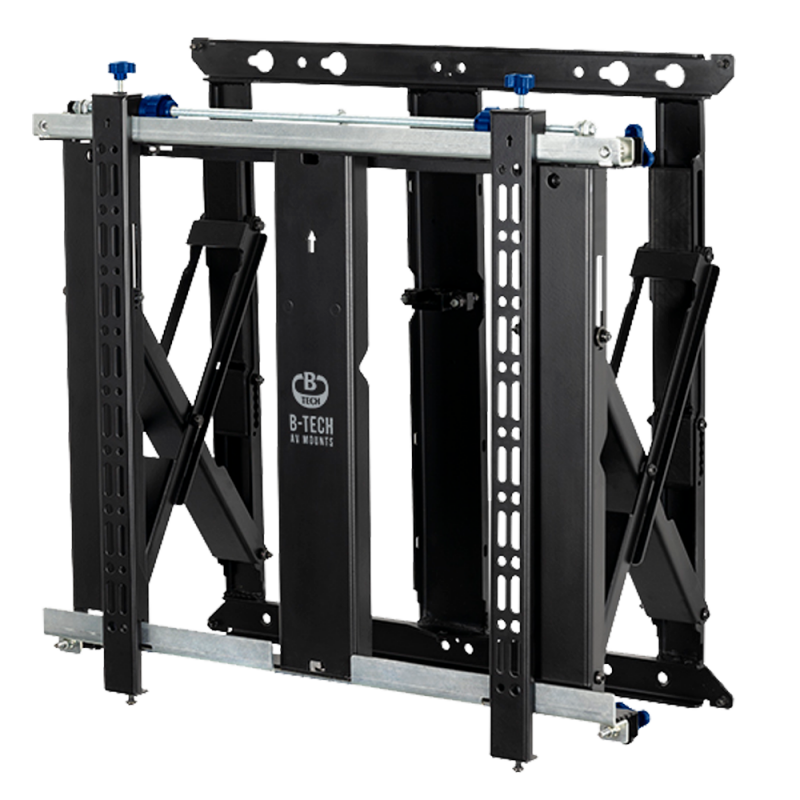

Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.



  • Slim design ideal for low profile installs on walls or mounting in recesses
  • Modular mount allows video wall assembly in an unlimited number of configurations
  • Suitable for landscape or portrait screen mounting

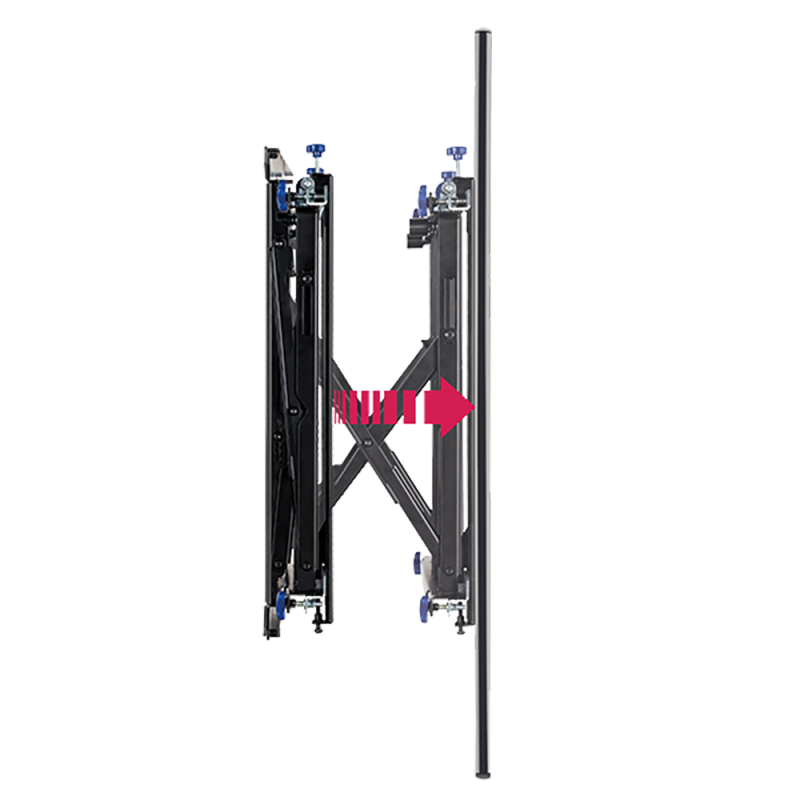

  • Pop-out system with soft opening provides a safe and easy service access

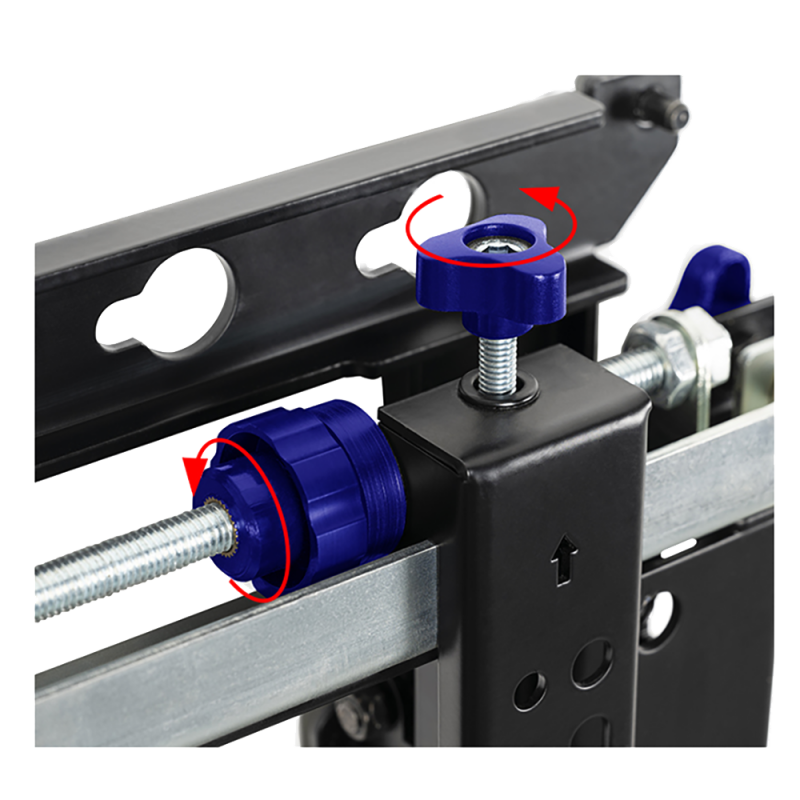

  • Tool-less micro-adjustment of +/-7.5mm (0.3") at each corner for seamless display alignment
  • Keyhole mounting for quick and easy installation
  • Suitable for both wall or pole mounting
  • Screen specific wall plate spacers kits are available (separately) to speed up installation times
  • Integrated locking mechanism prevents accidental pop-out of mount
  • Safety screws help prevent unauthorised removal of screens
  • Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately



  • Video Wall Support

alt


Article
Brand B-Tech
Product Code BT8312
General
Max load 50kg (110lbs)
Recommended screen size 42" (106cm) - 75" (190cm) (46" (116cm) - 75" (190cm) in portrait)

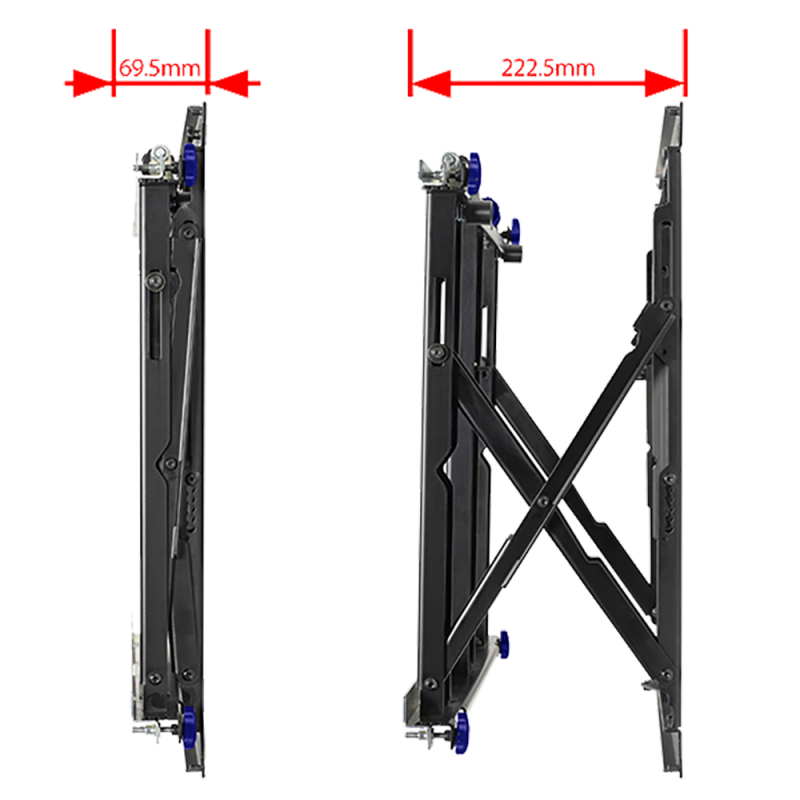

closed depth 69.5mm* (+/-7.5mm with micro-adjustment)
Extended depth 222.5mm* (+/-7.5mm with micro-adjustment)
Tool-free micro-adjustment +/-7.5mm per corner
Monitor Height Adjustment +15mm
VESA 200 x 100 up to 400 x 400 (adapters included) up to 600 x 400
