- Brand: Teltonika
- Product Code: TK-RUT300
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

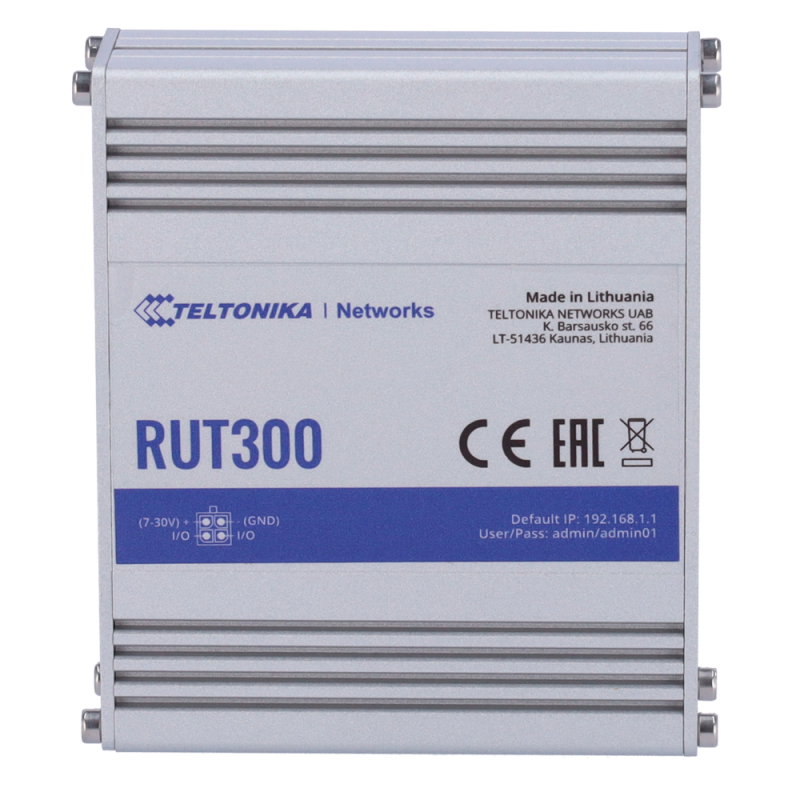

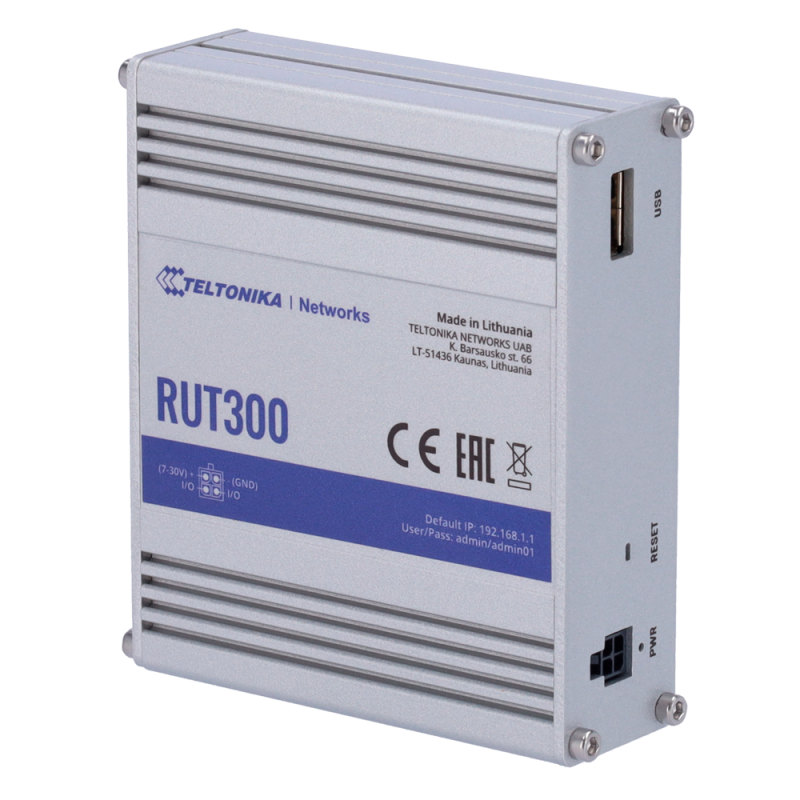

Teltonika Industrial Router | 5 Ethernet ports RJ45 Fast Ethernet | USB 2.0 | 2x Inputs + 2x Digital Outputs | Aluminum Housing
- Teltonika
- Industrial Router
- 5 Ethernet ports RJ45 Fast Ethernet
- USB 2.0 and Up to 2 Digital Inputs and 2 Digital Outputs

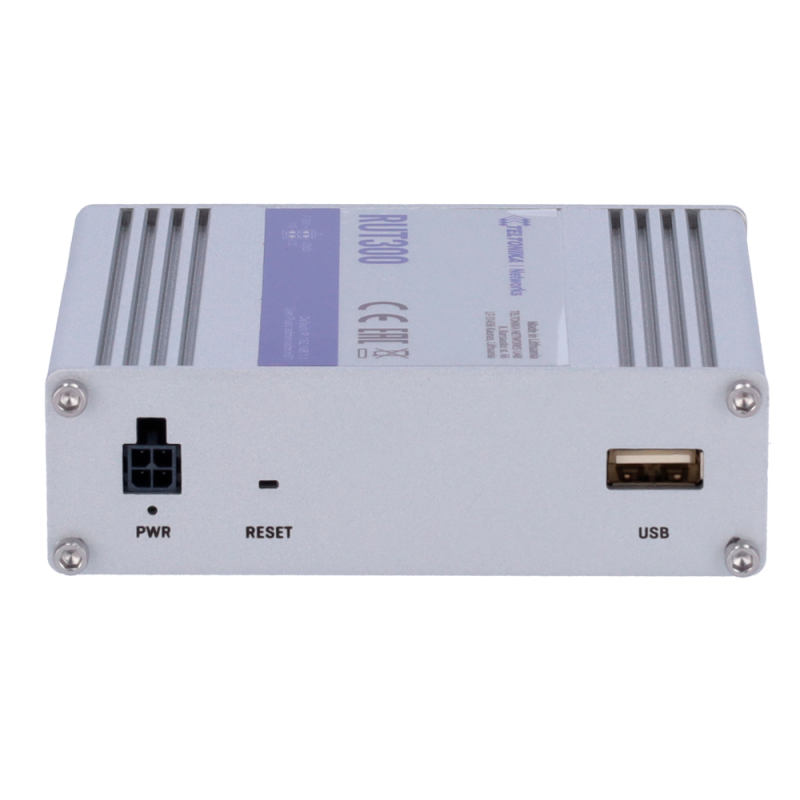

- Industrial 4 pin DC power connector
- DC power 7 to 30V Power Supply Included
- Passive PoE power supply
- Status LEDs
- Industrial Router
- AC power supply 18W
- Ethernet Cable 1,5m
- User instructions
| General | |
| Material | Aluminium |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Inputs and Outputs | 2 x Digital Inputs and Outputs. Digital Input to 0 - 5 V detected as low level, 8 - 30 V detected as high level. Open collector, maximum output 30 V, 300 mA |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Operating System | RutOS (Based on OpenWRT) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging |
| VPN protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |

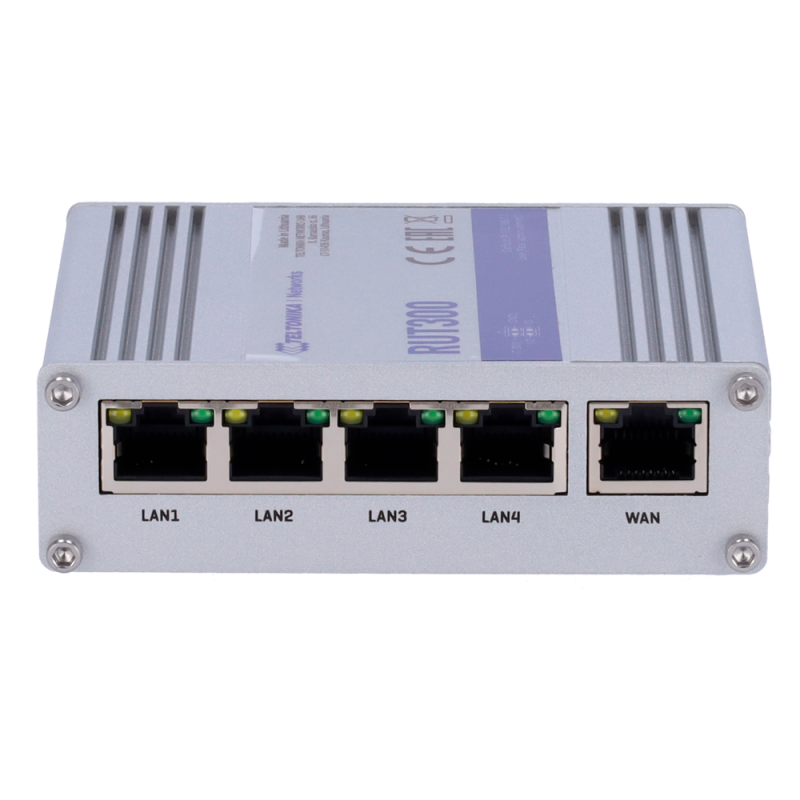

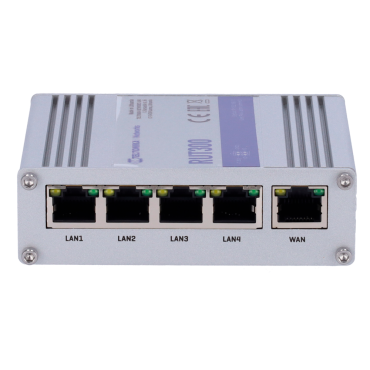

| Ethernet | 5 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 4 LAN) |
| RAM | 64MB |
| Weight | 229 g |
| CPU | QCA9531, MIPS 24kc, 650 MHz |
| Flash | 16MB |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned) |
| Power | DC connector 4 Industrial pins 7~30V Power Supply Included |
| Temp. operation | -40º C ~ +75º C |
| Dimensions | 30 (Al) x 100 (W) × 85 (D) mm |
