- Brand: Teltonika
- Product Code: TK-RUTX10
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

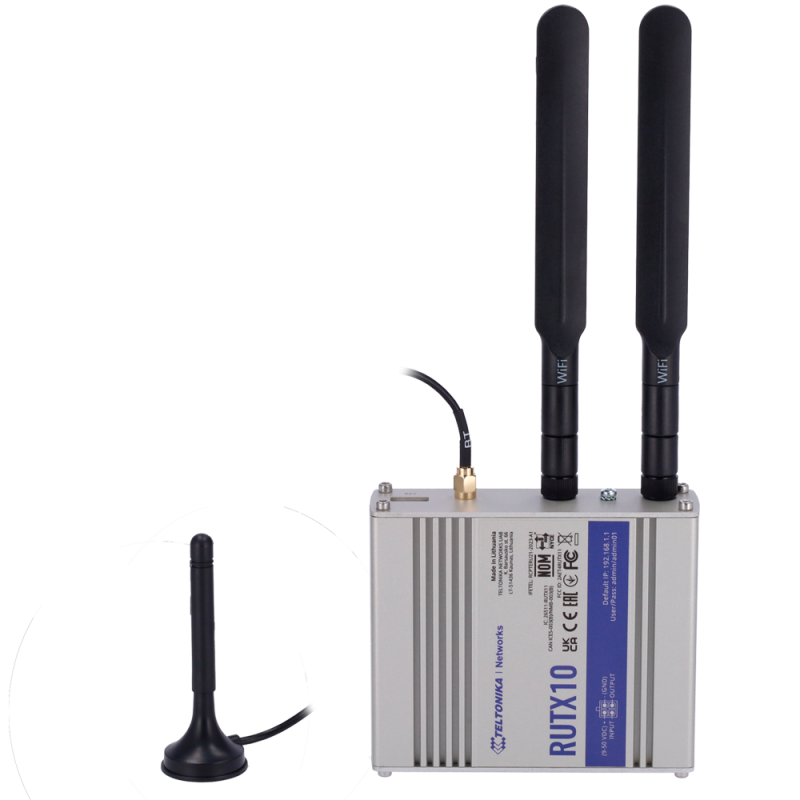

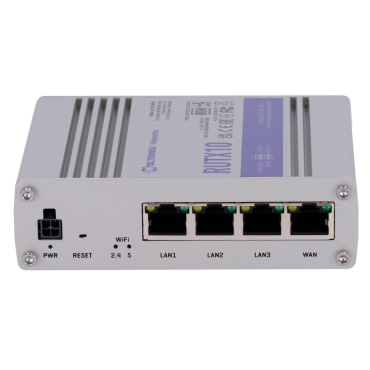

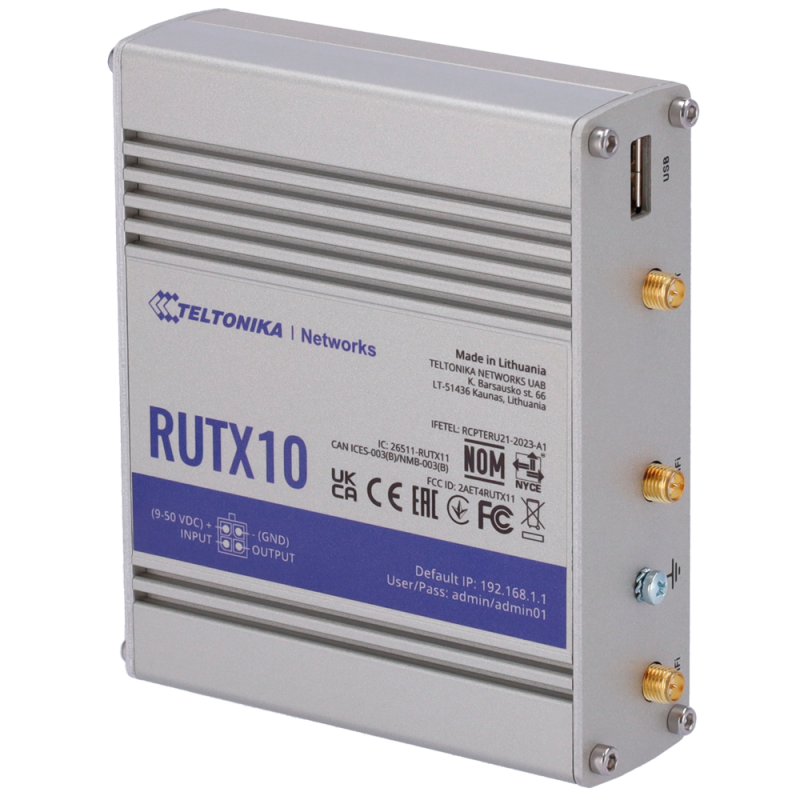

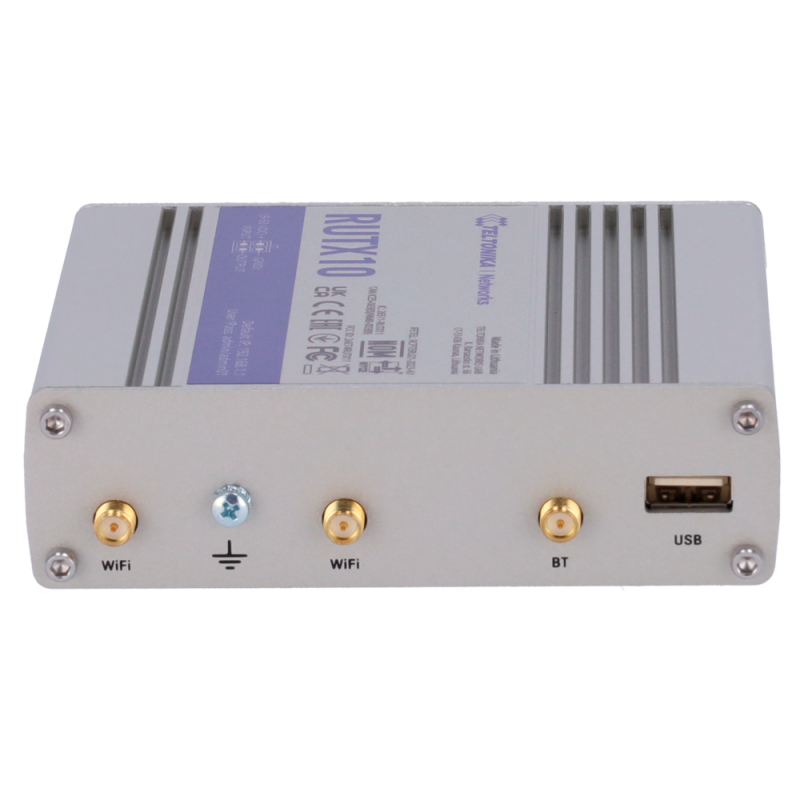

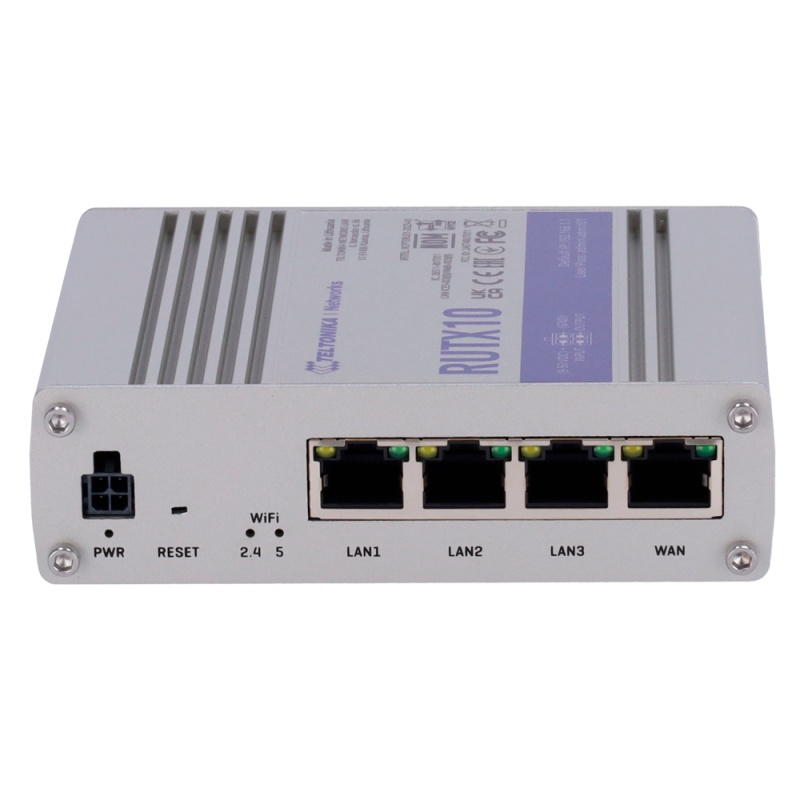

Teltonika Industrial Router | 4 Ethernet ports RJ45 Fast Ethernet | USB 2.0 | Digital Input/Output | Aluminum Housing
- Teltonika
- Industrial Router
- Wi-Fi 5 Dual Band Wave 2
- Bluetooth LE 4.0
- 4 Ethernet RJ45 ports Gigabit
- USB 2.0 and Digital Input/Output
- WiFi and BLE antennas included
- Industrial 4 pin DC power connector
- DC power 9 to 50V Power Supply Included
- Passive PoE power supply
- Status LEDs
- Industrial Router
- 2x Wi-FI Antennas
- AC power supply 18W
- Magnetic Bluetooth antenna 1,5m cable
- Ethernet Cable 1,5m
- User instructions
| General | |
| Material | Aluminium |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Inputs and Outputs | 1 x Digital Input, 0 - 6 V detected as low level, 8 - 30 V detected as high level 1 x Digital Output, Open Collector Input, Maximum Output 30 V, 300 mA |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Operating System | RutOS (Based on OpenWRT) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging |
| VPN protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
| Ethernet | 4 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 3 LAN) |
| RAM | 256MB |
| Weight | 355 g |
| CPU | Qualcomm 4x ARM Cortex A7 717MHz |
| Flash | 256MB |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| Power | DC connector 4 Industrial pins 9~50V Power Supply Included |
| Temp. operation | -40º C ~ +75º C |
| Dimensions | 32,2 (H) x 115 (W) x 95,2 (D) mm |
