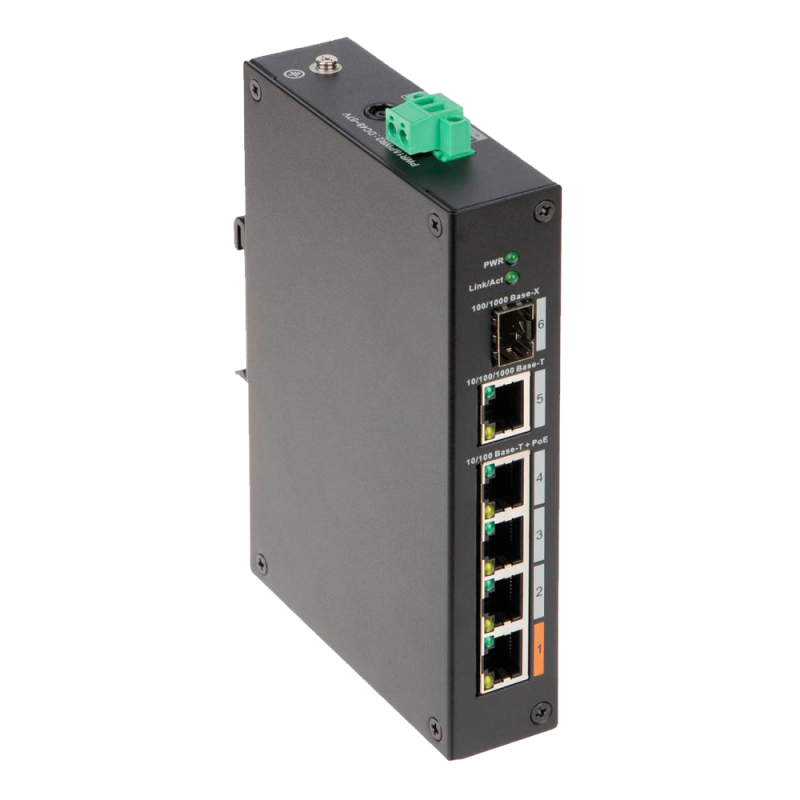

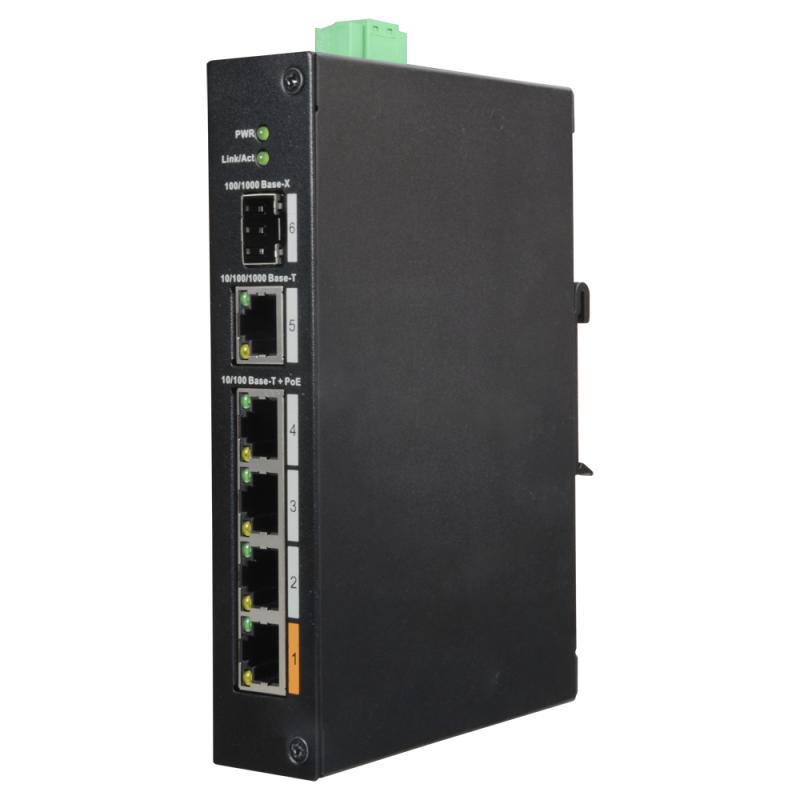

X-Security PoE Switch - 4 PoE ports +1 SFP +1 Uplink Gigabit - Speed 10/100/1000Mbps - Port 60W 1 / ports 30W 2-4 / maximum 60W - Hi-PoE / IEEE802.3at (PoE+) / af (PoE) - DIN rail mount
  • Brand: X-Security
  • Product Code: XS-SW0604HIPOE-F-60-DIN
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security PoE Switch - 4 PoE ports +1 SFP +1 Uplink Gigabit - Speed 10/100/1000Mbps - Port 60W 1 / ports 30W 2-4 / maximum 60W - Hi-PoE / IEEE802.3at (PoE+) / af (PoE) - DIN rail mount


  • X-Security
  • Desktop Switch
  • 4 ports RJ45 10/100 Mbps + 1 Uplink Port 100/1000 Mbps
  • 1 Gigabit SFP Port
  • Supports PoE power up to 60 W total for all ports
  • Up to 60W on port 1 and up to 30W on ports 2-4
  • Compatible with PoE IEEE802.3af/at and Hi-PoE

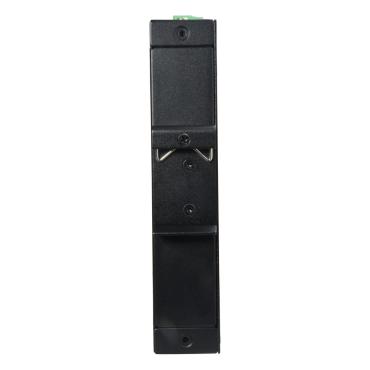

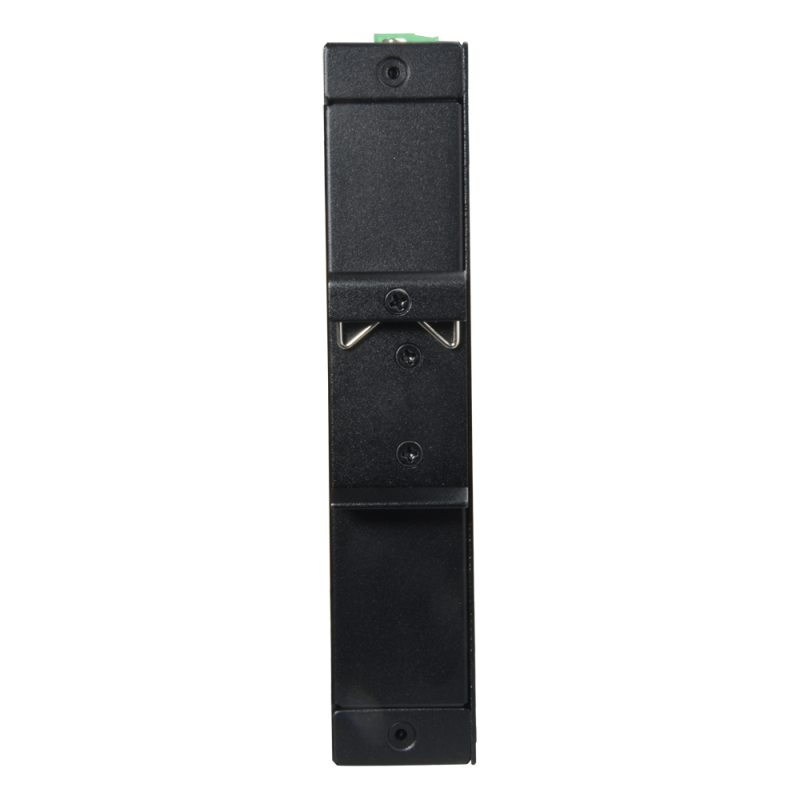

  • Din rail mounting

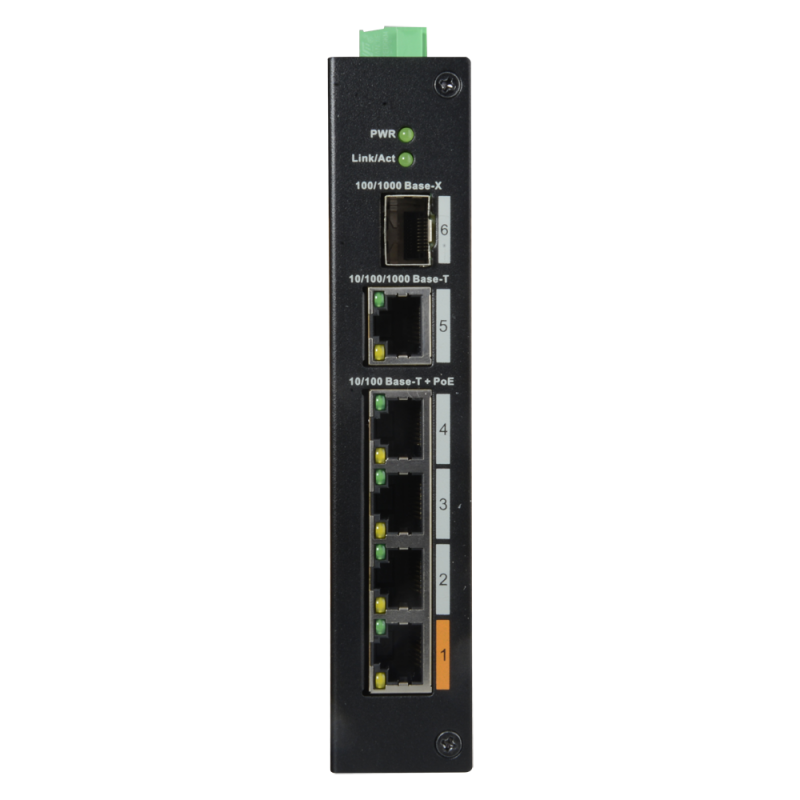

Interface4 PoE ports RJ45 + 1 SFP port of fibra+1 Gigabit Uplink port
Port speed4 x 10/100 Mbps + 1 x 100/1000 Mbps + 1 x 10/100/1000 Mbps T-base
Power supplyUp to 60W (HI-POE) on the 1 port and up to a maximum of 30W between the 2-4 (60 W ports for the entire device)
PoE featuresHi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
InstallationDIN rail

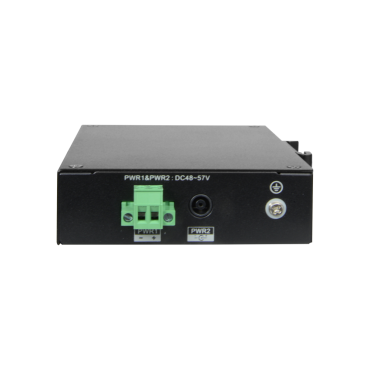

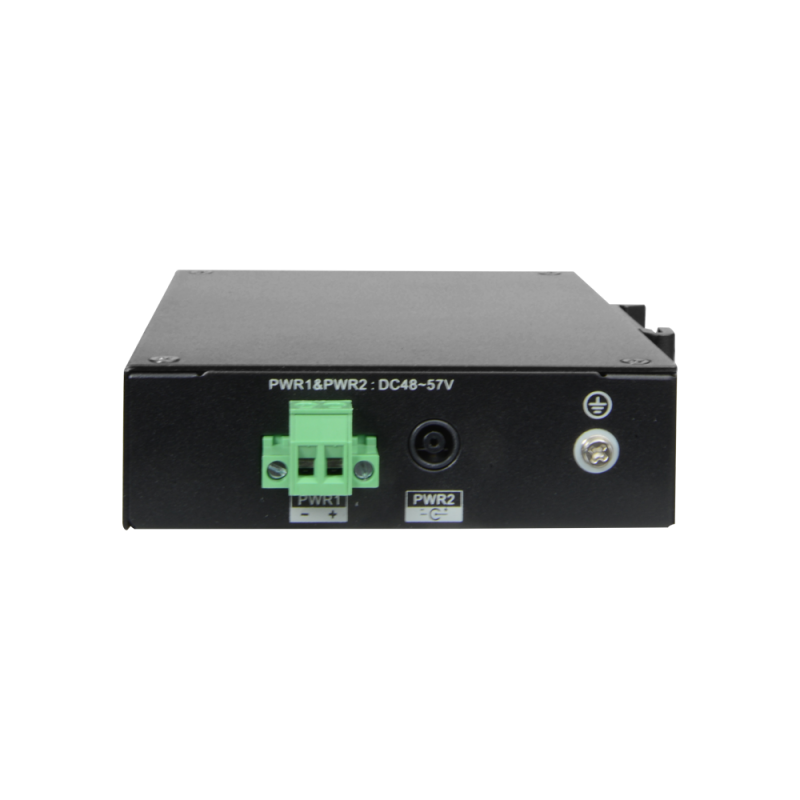

PowerDC 48 V ~ 57 V
Operating temperature-30º C ~ 65º C
Dimensions108 (D) x 30 (H) x 150 (W) mm
Weight440g



  • X-Security PoE Switch
  • AC/DC Power adaptor
  • User instructions
