- Brand: Reyee
- Product Code: RG-ANT16S-120
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.
Reyee - Frequency 5.15 GHz 5.85 GHz - Passive antenna compatible with RG-AirMetro550G-B - Operating distance up to 5 km - IP55, suitable for exterior - 2x SMA Male connectors
- Reyee

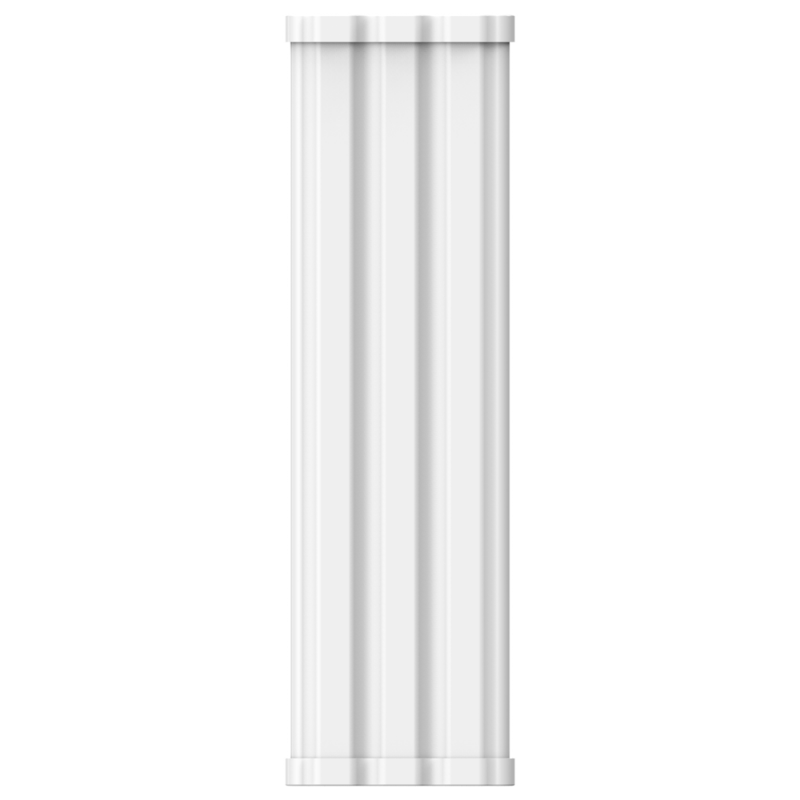

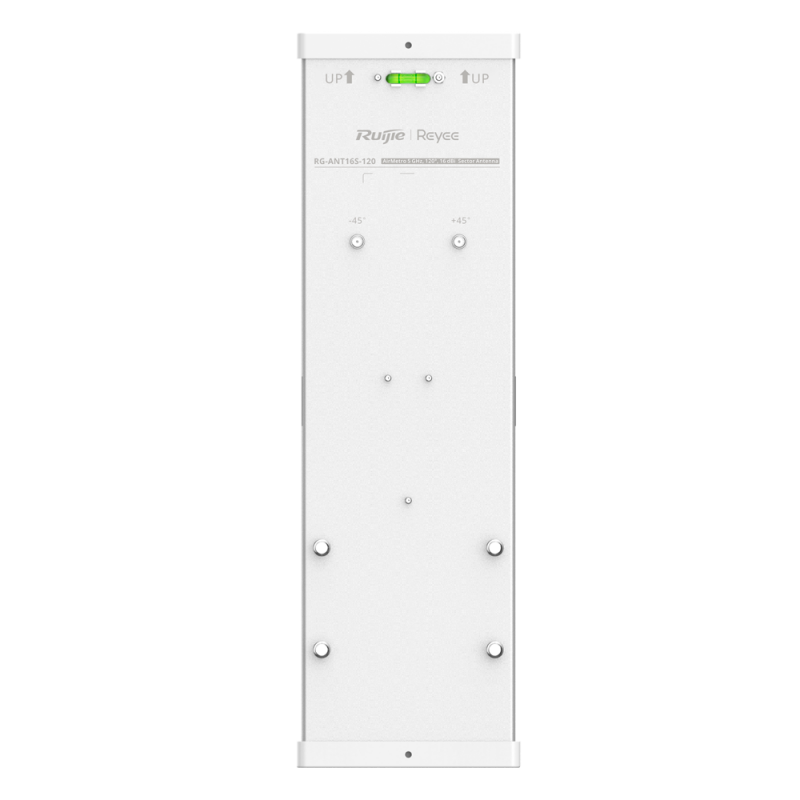

- Sector passive antenna compatible with RG-AirMetro550G-B for high power radio links at 5 GHz
- P55, suitable for exterior
- This device is used assembled to the reference RG-AirMetro550G-B acting as passive antenna of the radio link electronics
- 2 SMA Male Ports
- Horizontal coverage: 120°, vertical: 10°- No power supply required
- Connection up to 5 km
General | |
Beamwidth in elevation | 10º (6dBi) |
Beamwidth with Horizontal Polarization | 118º (6 dBi) |
Beamwidth with Vertical Polarization | 120º (6 dBi) |
Degree of IP Protection | IP55 |
Dimensions | 361 x 110 x 48.5mm |
Mode of Operation | Passive Antenna for RG-AirMetro550G-B (1 antenna type per unit) |

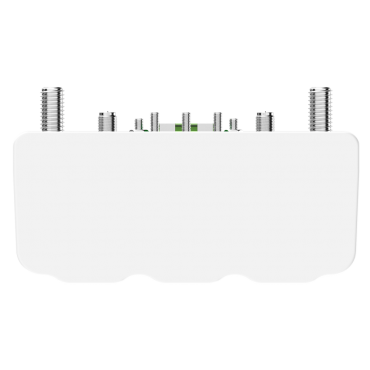

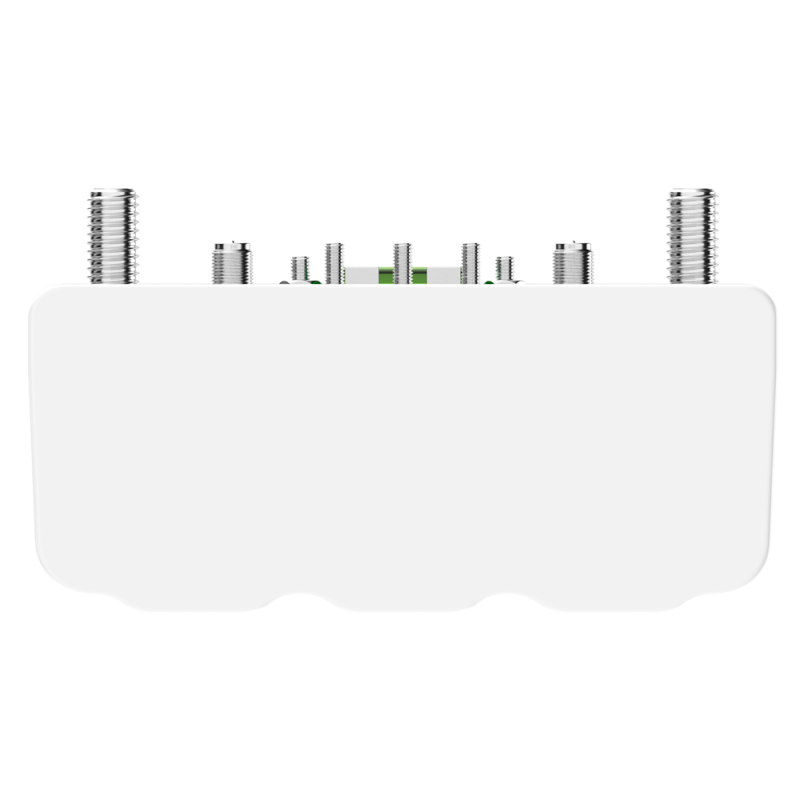

SMA ports | 2 x SMA Male for Dipole |
Frequencies | 5.15GHz – 5.85 GHz |
Power Supply | No power supply required |
Distance | Up to 5 km (in ideal conditions) |
Weight | 2.5 Kg |
Integrated antenna | 16 dBi Dual directional |
