- Brand: SC&T
- Product Code: CHB001H-2
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

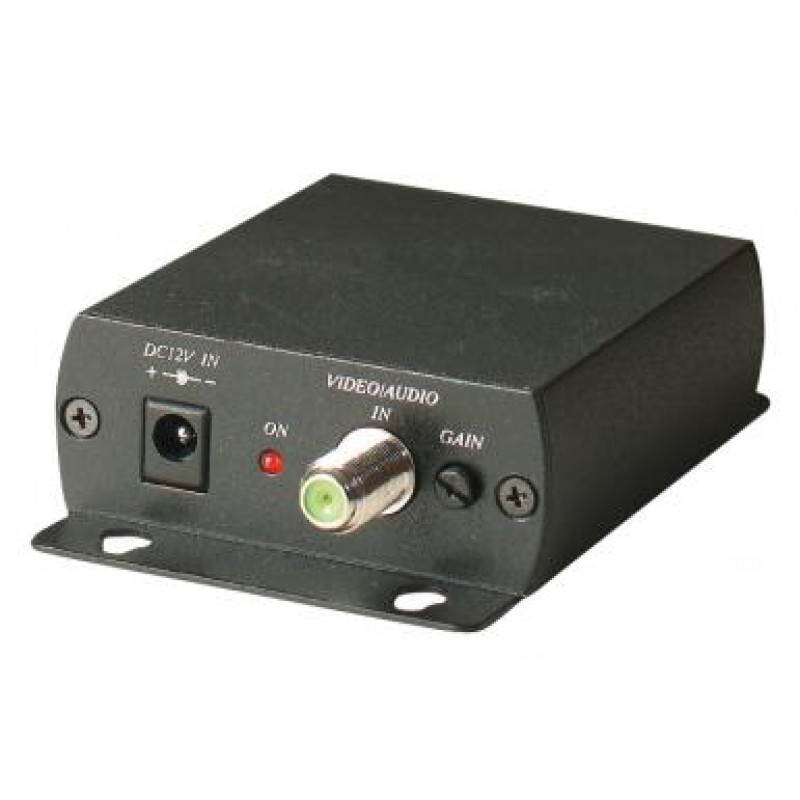

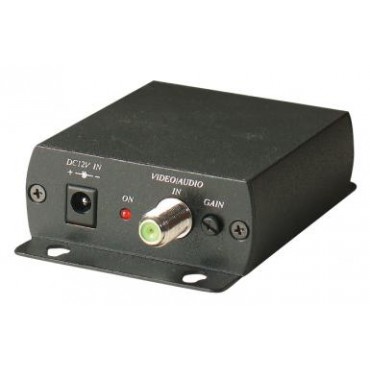

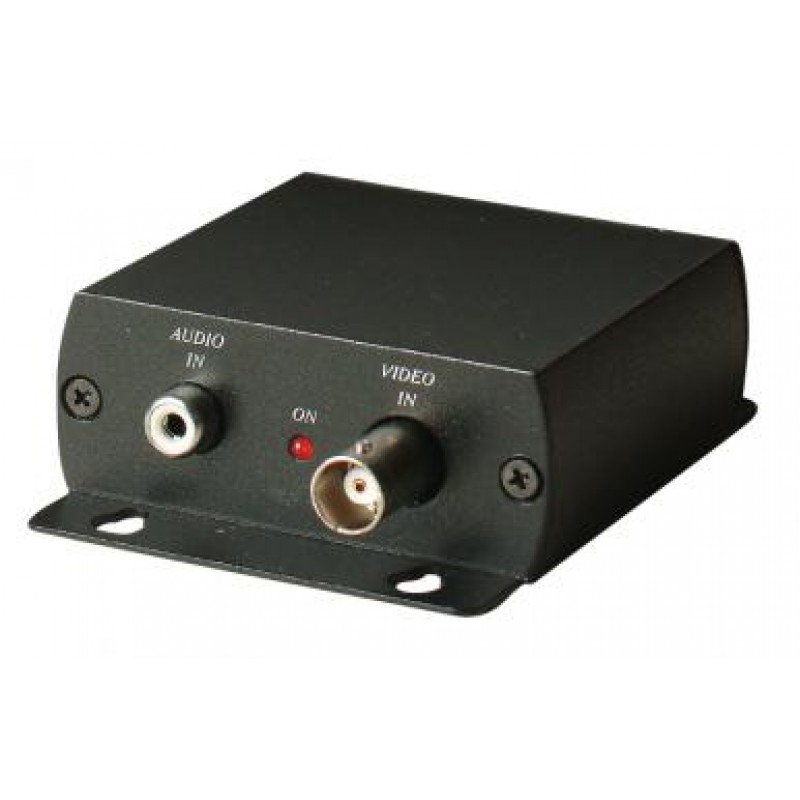

Analog Video High Performance Interference Blocker (CHB001HT + CHB001HR)
CHB001H is a high-frequency interference blocker designed to remove electromagnetic waves, high voltage electricity,...etc. The blocker has a built-in RF modulator to work with an RF CATV splitter to send multiple videos over one coax cable or an RF CATV amplifier to send a video for a longer distance.
- Supports CVBS (NTSC/PAL) video format.
- Supports audio signal transmission.
- Signal extension up to 400M.
- Built-in power output at TX unit for a CCTV camera.
ITEM NO. |
CHB001HT |
CHB001HR |
|
VideoInput / Output |
BNC x 2 (75 Ω，1 Vp-p) |
|
|
AudioInput / Output |
RCA x 1 (10KΩ，1 Vp-p) |
|
|
Working Range |
450 meters for RG59 CABLE, 600meters for RG6U cable |
|
|
Power Consumption |
200mA |
100mA |
|
Power Supply |
DC 12V 500mA |
|
|
Power Output to Camera Use |
300mA ( Max.) PS: If change to bigger power supply, the max. power output to camera could be up to 1Amp.. |
X |
|
Dimensions mm |
67 x 91.5 x 27 |
67 x 102.5 x 27 |
|
Weight g |
150 |
165 |
