PoE biometric access controller - Access by fingerprint, card or password - TCP/IP | Connection with slave controller - 4 readers by Wiegand | 4 readers by OSDP | auxiliary - Relay output for 2 door - Embedded ATLAS Series software and mobile app

Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Description

ZKTeco

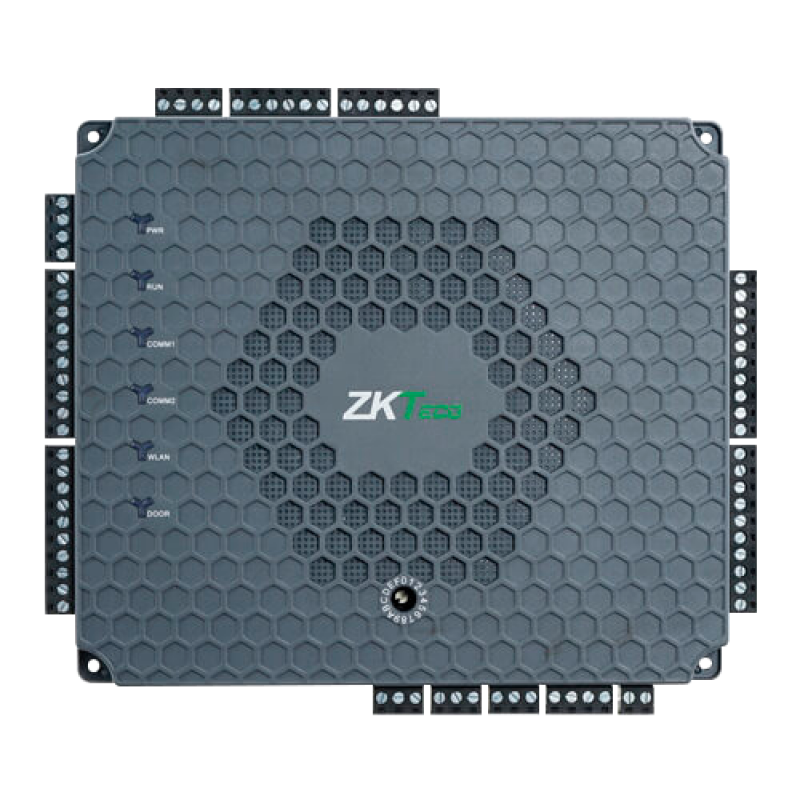

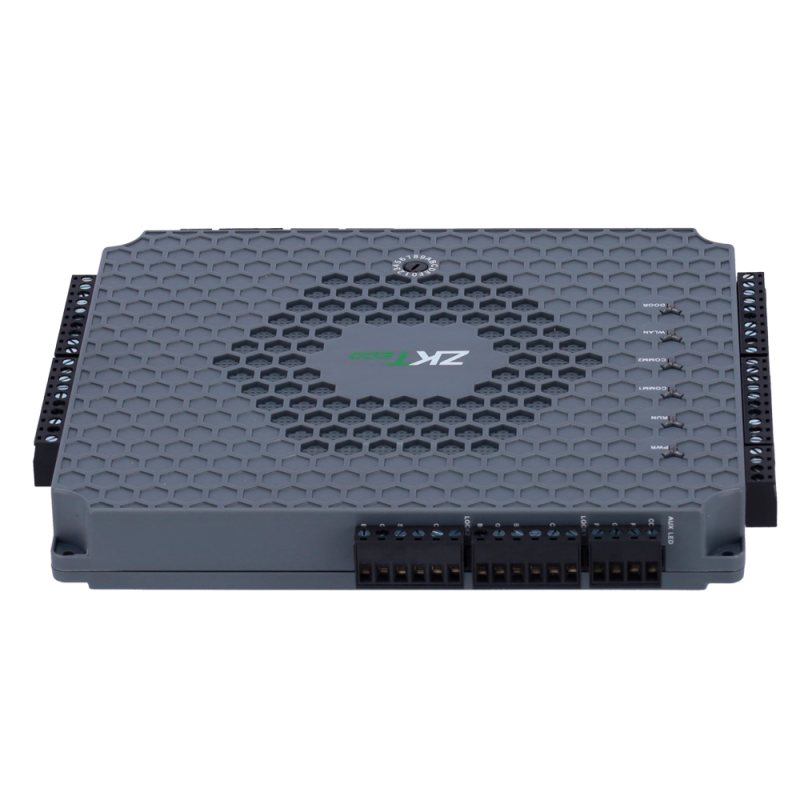

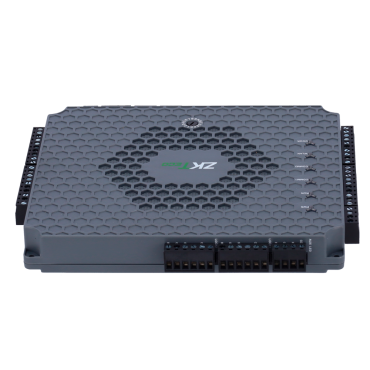

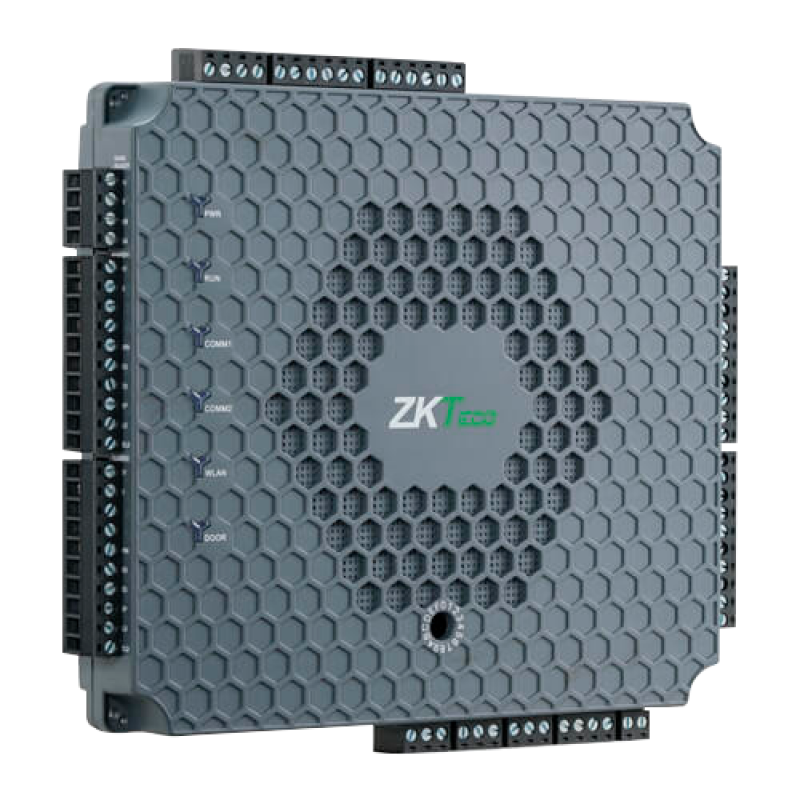

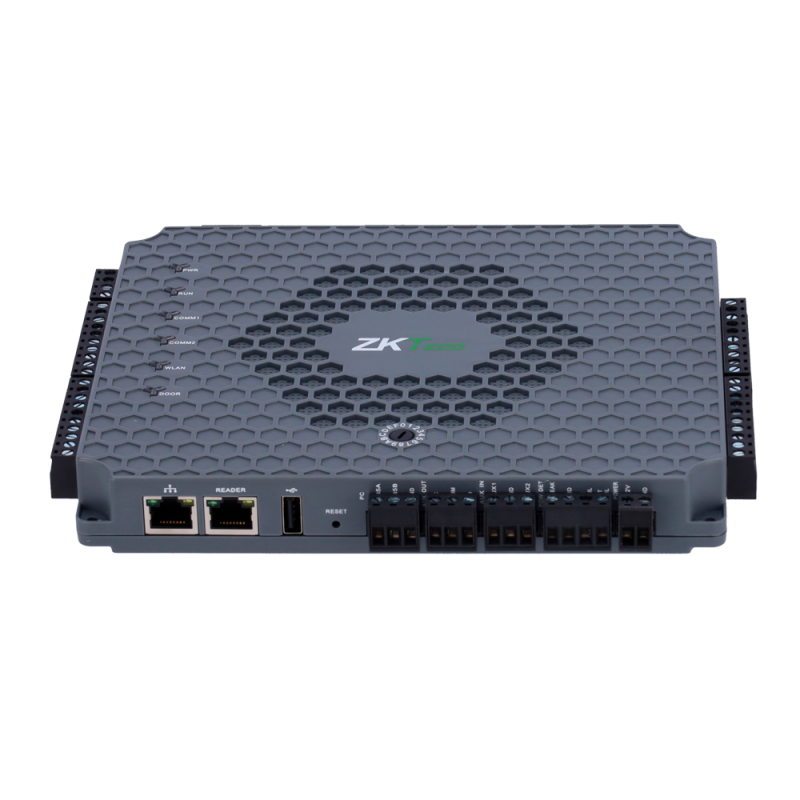

Biometric access control panel
Management of 2 doors
Capacity 5.000 users and 10.000 records

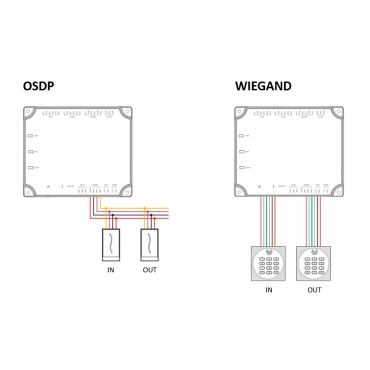

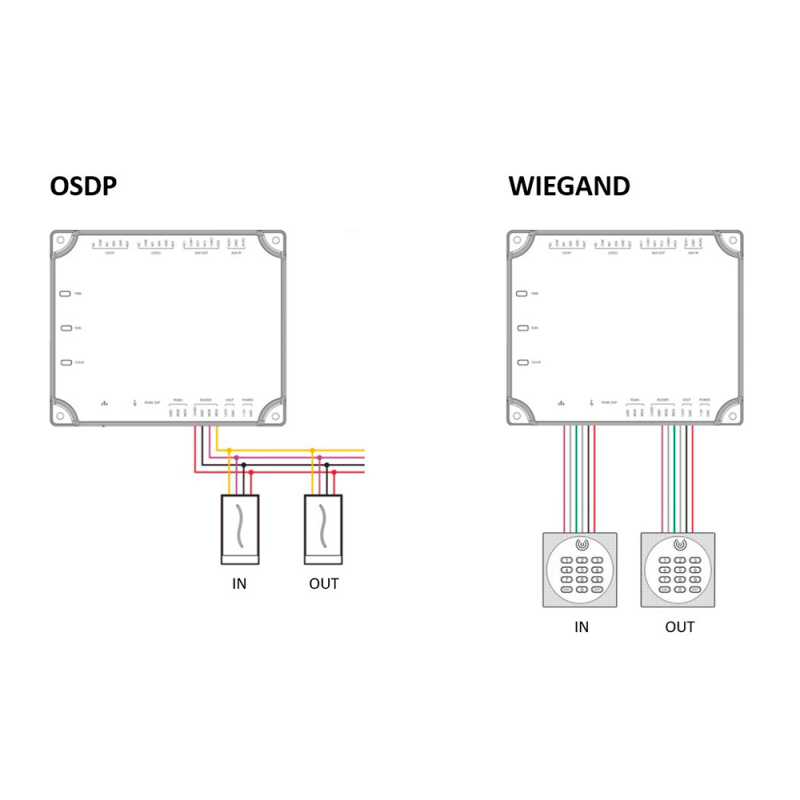

Supports up to 4 Wiegand or 4 OSDP readers (card or fingerprint reader)
TCP/IP, Wiegand and OSDP communication
Standard PoE power supply
Input of 2 pushbuttons, 2 door sensors and 2 auxiliary inputs
2 relay and 1 auxiliary outputs
Relay configuration NO/NC
Integrated ATLAS Series software
Web browser access to software for access control management and reports
ZK ATLAS mobile app for remote management of users, events, alarms and open remotely
Connection of ATLAS slave controllers with access from a single IP to 84 gates
Free license up to 25 gates

Specifications

Brand	ZKTeco
Model	CON-ATLAS-260
Capacity	Up to 5.000 users with 10 prints each or 5.000 cards
Records	10.000 registers
Identification modes	Fingerprint, card and/or password
Proximity card	EM RFID (125 kHz) / MF (13.56 MHz)
Communication	TCP/IP \| RS485 \| OSDP \| Wiegand
Baud rate	9.600bps for OSDP
Outputs	2 x relay output, 1 x auxiliary output
Inputs	4 x Wiegand 26/34/37/50, 4 x door sensor, 4 x opening button, OSDP (up to 4 readers), 2 x auxiliary
Advanced features	Anti-passback, first card, multi-card and maps
Software	ATLAS Series embedded with browser-based access
Languages	English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech
Secondary controllers	Connection of up to 20 secondary controllers via IP with a control of up to 84 doors
Compatible web browsers	Google Chrome, Mozilla Firefox, Microsoft Edge
Mobile App	ZK ATLAS for iOS and Android
Power	DC 12 V / 3 A max. \| Standard PoE power supply \| Non-powered locks with controller
Temp. operation	0º C ~ +55 C
Dimensions	197 (W) x 171 (H) x 30 (D) mm
