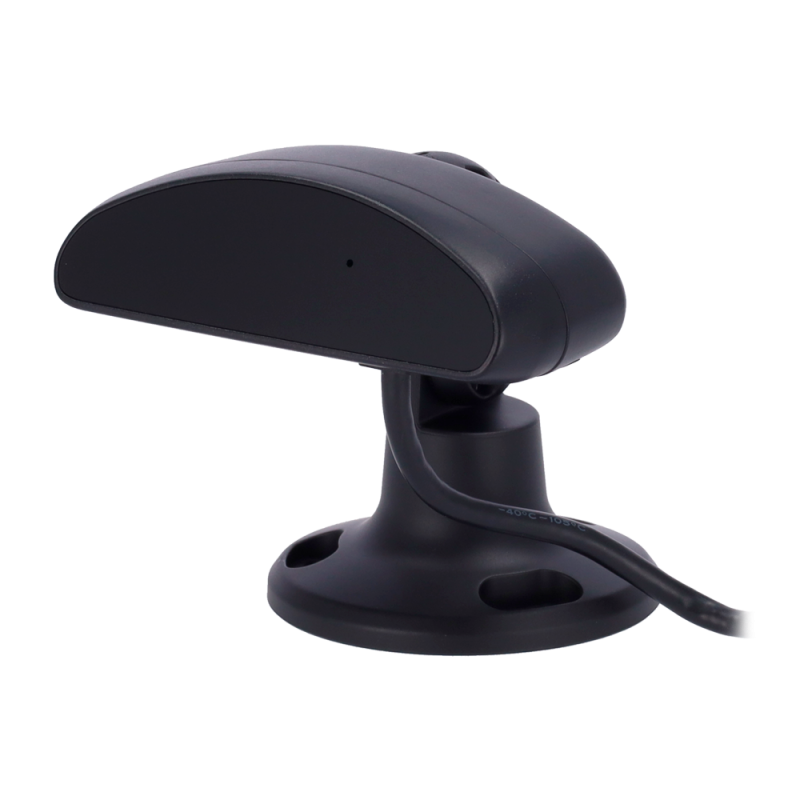

Streamax | DSM IP Camera 1280x800 | IR range up to 20m | Suitable for vehicle embarkation | Vertical installation on dashboard | IP67
  • Brand: Streamax
  • Product Code: ST-C29N-V
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Streamax | DSM IP Camera 1280x800 | IR range up to 20m | Suitable for vehicle embarkation | Vertical installation on dashboard | IP67


  • Streamax
  • IP camera
  • Resolution 1280x800
  • 3mm lens
  • 0Lux
  • IR up to 20m
  • DSM: Driver status monitoring
  • Connector M12
  • Suitable for vehicle embarkation
  • Compatible with ADPLUS 2.0
  • Vertical installation on dashboard
  • Waterproof IP67


  • DSM IP camera
  • installation material
  • quick installation guide
General
Intelligence DSM: Driver status monitoring Fatigue, drowsiness, cell phone and smoking detection
IR range 20 m
Protection Class IP67
S/N Ratio >50dB
Temp. functioning -40ºC ~ 70ºC, <95%

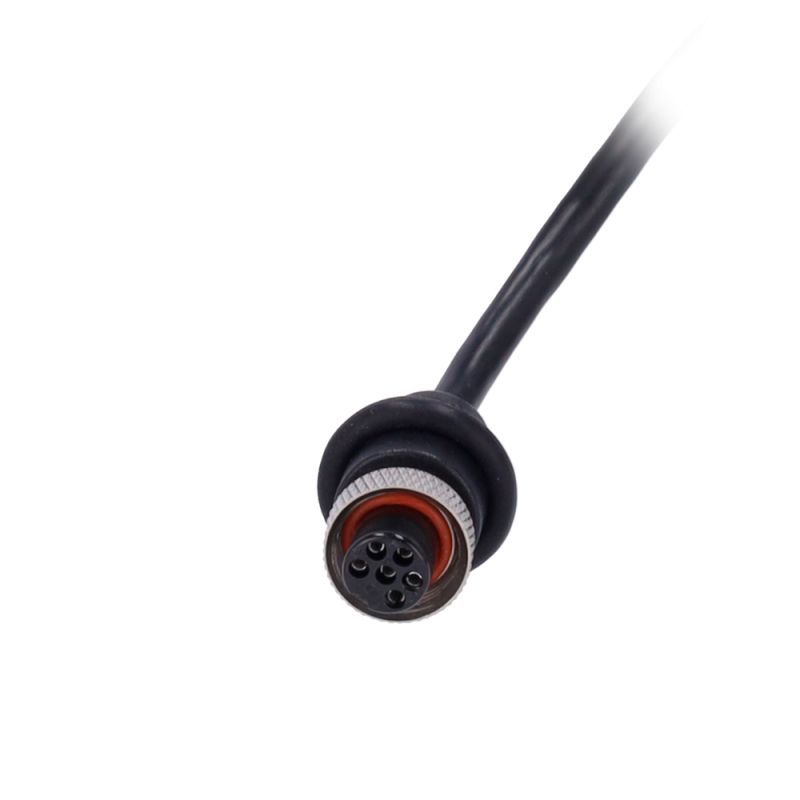

Connection interface Aviation connector 6-Pines M12
Power 12V DC, 230mA. <2.76W
Resolution 1280x800
Compatibility ADPLUS, AIBOX 5.0 and recorders
Sensor 1/4" Sensor Global Shutter
Video Output 1.0 Vp-p AHD
Weight 410g
Image enhancements DWDR, BLC, ATW, AWB, Auto Gain, 3D DNR
Installation Vertical installation on dashboard
Lens 3 mm (H: 76º, V: 44º)
Day / Night ICR IR Filter
Minimum illumination 0,1 Lux@F1.4 (IR OFF), 0 Lux (IR ON)
Dimensions 95.6 (D) x 57.8 (W) x 50.8 (H) mm
Shutter Time 1/30 ~ 1/5.000s (auto)
Compression H.265 / H.264
