- Brand: Streamax
- Product Code: ST-P3S-SM
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

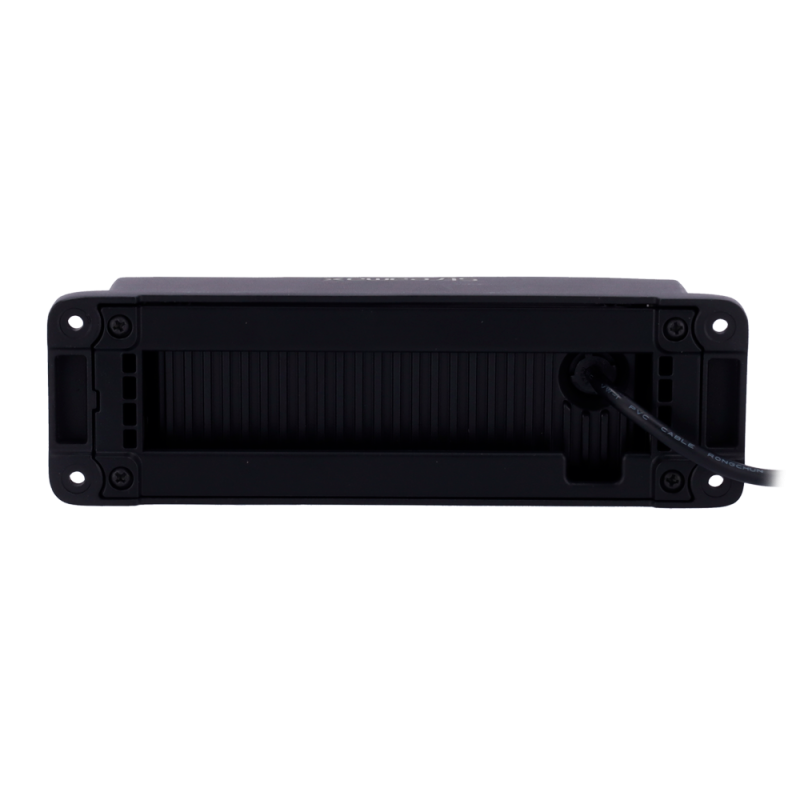

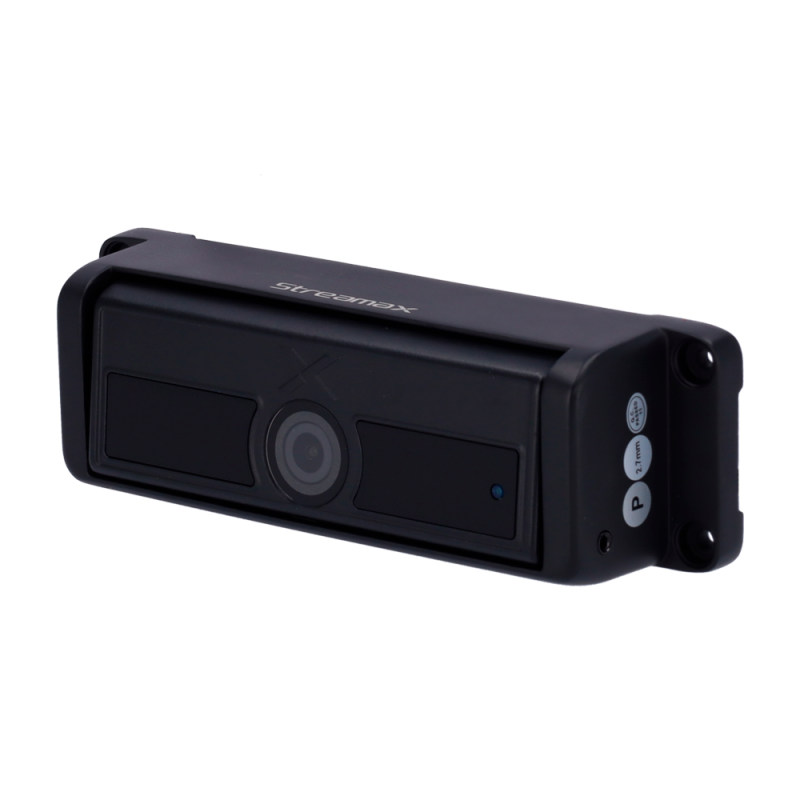

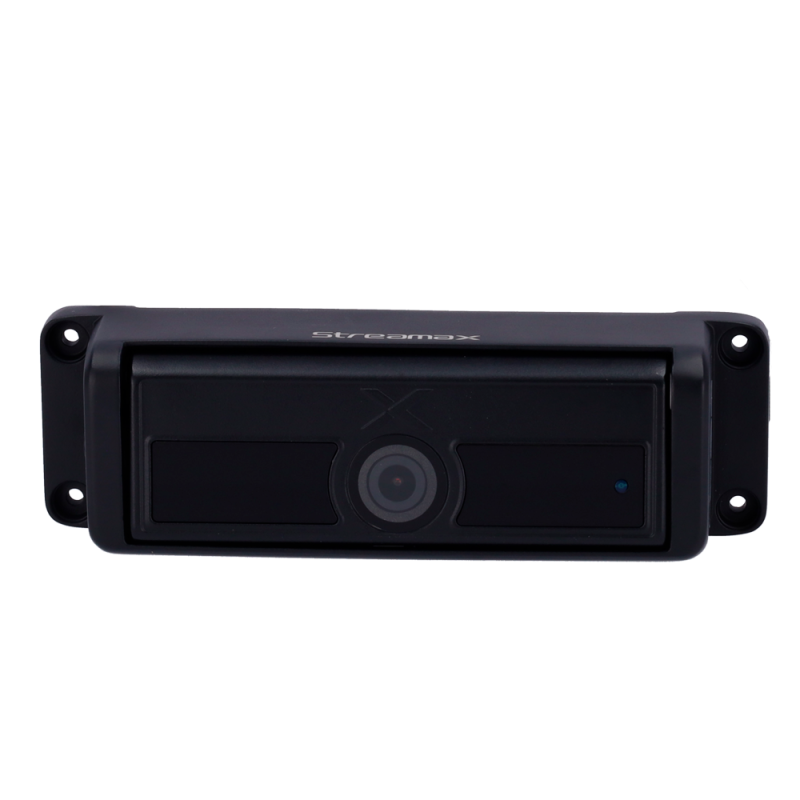

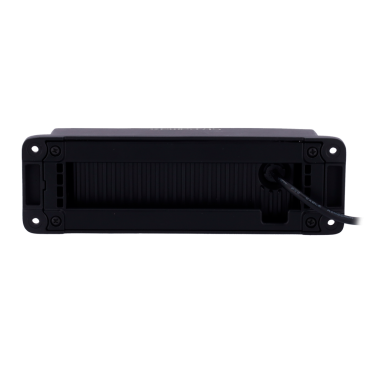

streamax | HD camera | 1/2.8" CMOS 1080P | 2.8mm lens | IR range up to 15m | 6-pin aviation connector
- Streamax
- HD camera
- People Counting Slave Type
- Does not count people by itself
- ceiling installation
- AHD 1080P Camera
- installation material
- quick installation guide
| General | |
| functionality and operation | Connects to a Host counting camera to cover people counting at the second door of the bus * If the bus has a third door, the camera of this door must be Host ** It cannot perform people counting by itself, you always need a P3 Host people counting camera |
| S/N Ratio | >50dB |
| Temp. functioning | -40ºC ~ 70ºC |

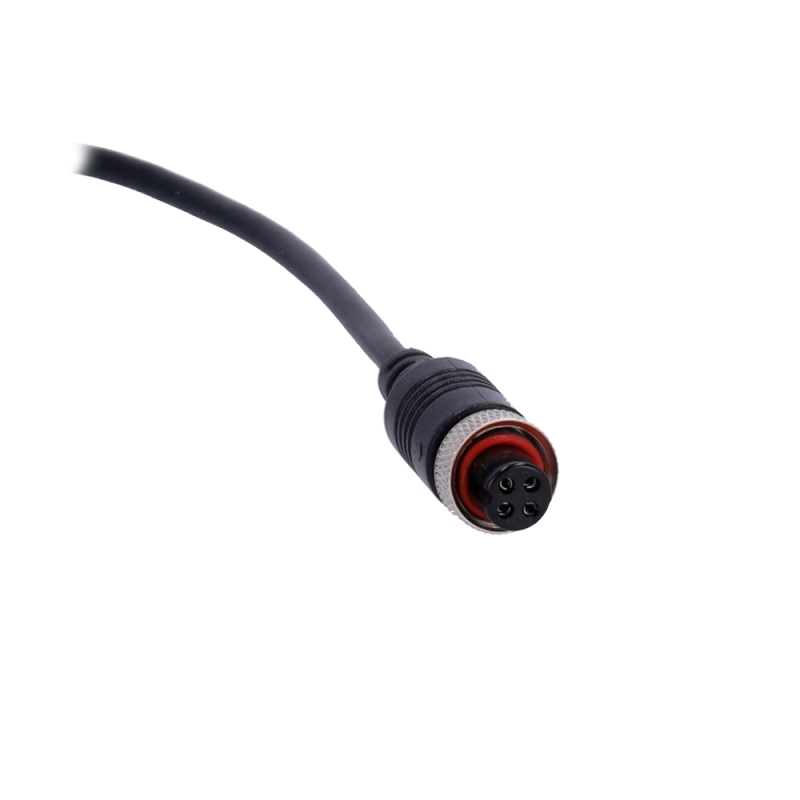

| Connection interface | 6-Pin Aviation Connector |
| Power | 12V DC, 200mA. 2.4W / PON |
| Resolution | 1080p (1920 x 1080) |
| Sensor | 1/2.8" CMOS |
| Weight | 125 g |
| Image enhancements | DWDR, BLC, ATW, AWB, Auto Gain, 3D DNR |
| Installation | Ceiling |
| Electronic shutter | 1/25 ~ 1/25.000s (auto) |
| Lens | 2.8 mm (H: 103º, V: 56º, D: 121º) |
| Lens Adjustment | Up: 15° , Down: 107° |
| Audio | Integrated microphone up to 5m |
| Day / Night | ICR IR Filter |
| Minimum illumination | 0,01 Lux (IR OFF), 0 Lux (IR ON) |
| Infrared lighting | 10 -15 m |
| Dimensions | 47.5(D) x 61(W) x58(H) mm |
