- Brand: Oem
- Product Code: CA4-100B-H
- Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.
To order and view prices you must register or login.

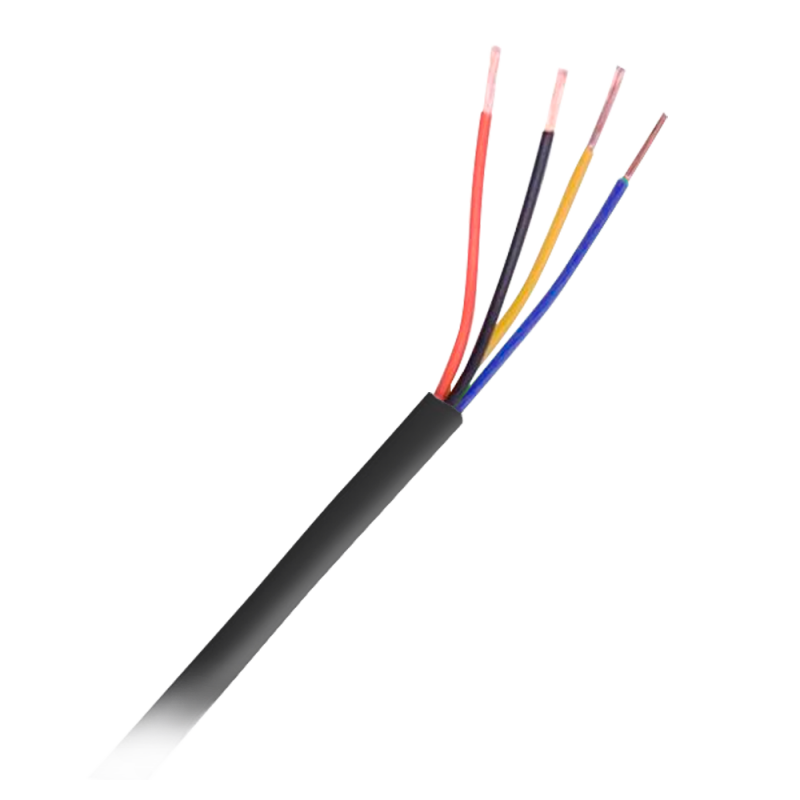

4 Conductors - Conductor Flexible electrolytic copper Class 5 - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR certificate Cca -1sb, a1, d2 - Low loss

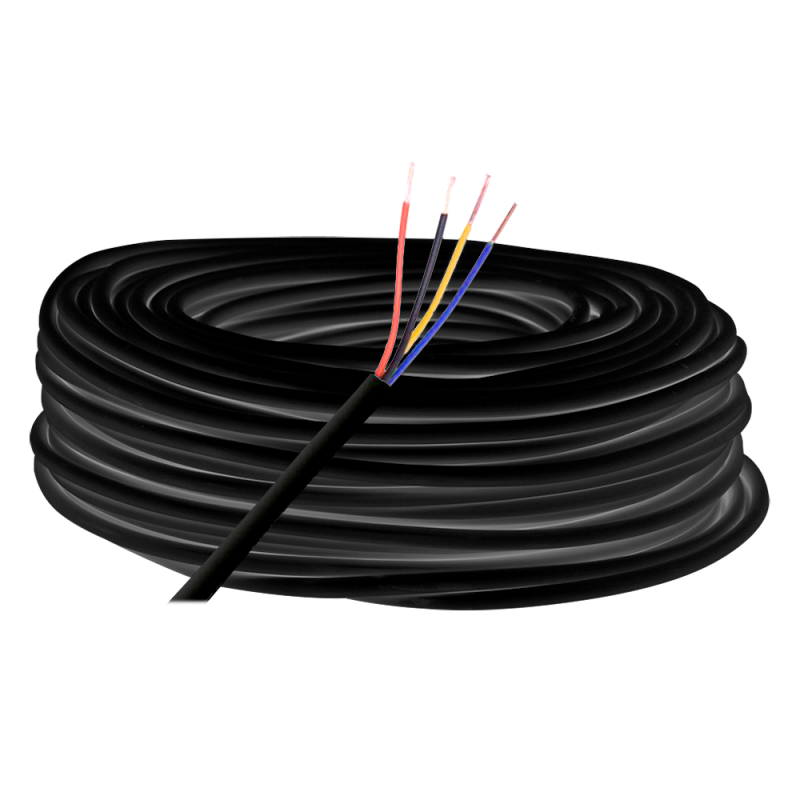

- Bobbin of cable
- 100m
- Alarm and video intercom
- 4 Conductors
- Internal conductor Class 5 flexible electrolytic copper 0.22 mm
- PE isolation
- Screen Aluminium polyester with 96% coverage+CuSn drainage
- Free of halogens
- CPR certificate Cca -1sb, a1, d2
- Bobbin of cable
| Article | |
| Brand | Oem |
| Product Code | CA4-100-H |
| General | |
| Temp. functioning | 0º C ~ 70º C |
| Conductivity | <10μS/mm |
| Formation of the wires | Twisted |
| Interior conductor | Flexible electrolytic copper AWG25 0,22 mm Class 5 |
| Number of conductors | 4 signal |
| Isolation | Polyethylene |
| Colour | Black |
| Length | 100 m |
| External cover | Polyolefin FRLSHF 6.1 mm |
| Resistance | 106 Ohm/km signal |
| Screen | Aluminium polyester with 96% coating+CuSn drainage |
| Certification | CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
