Emergency power supply for Server cabinet 2000VA
  • Brand: Energenie
  • Product Code: EG-UPSRACK-12
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Emergency power supply for Server cabinet 2000VA


  • Protects important data from power cuts
  • Protects valuable equipment
  • Protects users



  • Automatic output voltage regulation (AVR)
  • Rack 3.4U metal case
  • USB control interface
  • LCD display
  • Short circuit protection
  • Compatible with power generators of any brand
  • Surge, spike and lightning protection
  • Audible and visual alarms
  • Overcharge and overdischarge protection



  • UPS
  • Power cord
  • USB cable
  • Software CD
  • Spare fuse


Article
Brand Energenie
Product Code EG-UPSRACK-12
OPERATING ENVIROMENT
Operating Conditions 0°C~40°C, at humidity 10~90%RH non condensing
General
"Cold-start" function Yes
Backup time 8...20 mins (depends on the load)
Battery 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.3 kg x 3 pcs
Charge time up to 12 hours
Input voltage 220V AC ± 25%, 50Hz / 60Hz ± 10%
Inverter output efficiency (resistive load) 85%, any load type is allowed
Output power factor 0.8

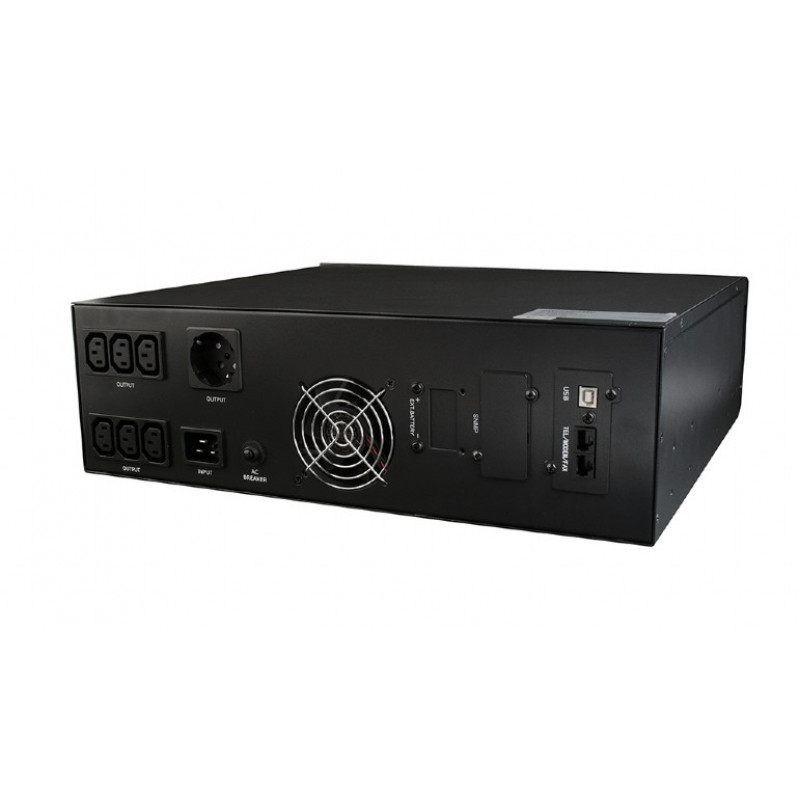

Sockets input IEC C14, outputs: Schuko EU type x 1 pc, IEC C13 x 6 pcs
Switching time no more than 10 ms (typically 6 ms)
Weight 19.8 kg
Type line interactive, pure sine wave
Dimensions 440 x 410 x 132 mm
Power 2000 VA (1600 W)
Output voltage 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
Noise < 45 dB (at 1 meter distance)
