VDS 2700 is the video signal transmission system to transmit video, alarm, audio, RS-485 data and DC power via one coaxial cable

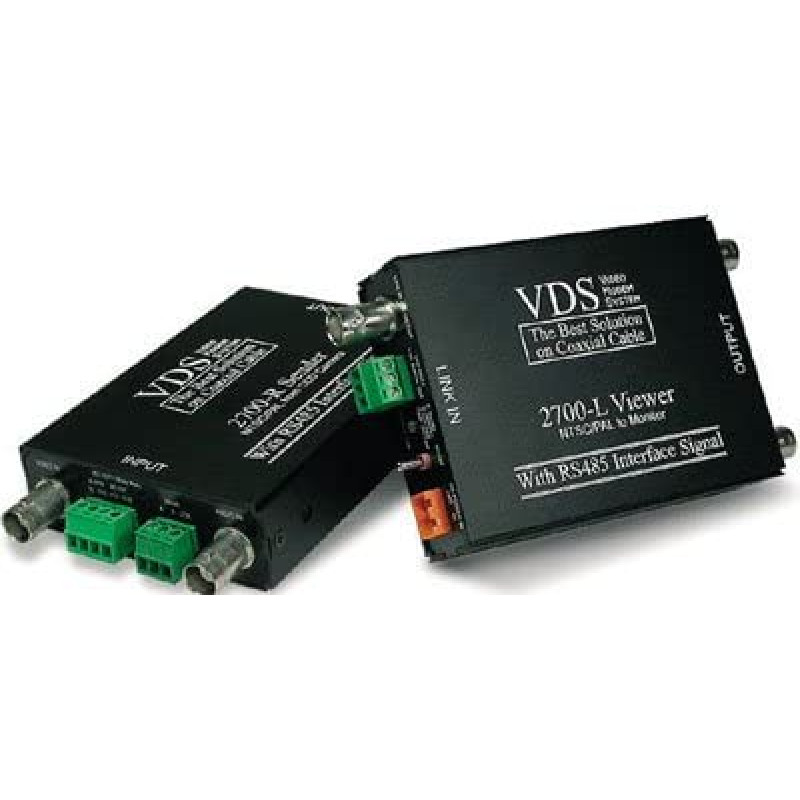

VDS 2700 consists of remote unit and local unit respectively.
The remote unit connects to a P/T/Z (pan/tilt/zoom) camera, the local unit connects to a monitor in surveillance system.

By using inter-carrier technology, VDS 2700 provides an innovative transmission method, simple installation and the highest quality picture transmitted for CCTV system.


  1. Half duplex channel for EIA standards RS-485 interface port.
  2. The range of RS-485 Transmission Rate is between DC and 38 Kbits
  3. Great quality at video signal:
    • Real-time analogue video signals
    • No signal lost, No interference in video
    • No hum, No twist
  4. Using 5C-2V (Japan Spec) coaxial cable :
    • Transmission distance can reach to 600M while sending the DC power 12V to P/T/Z camera via one coaxial cable.
    • Without sending DC power to camera via link coaxial cable :
    • Transmission distance can reach to 1,000M with connect to PTZ camera
  5. Link Fault alert buzzer inside (Siren sound)
  6. Built-in electrical transient voltage suppressor protection in the input and output
  7. Link cable lightning protection:
    • Equipped with Gas Tube Arrester discharging high current inside the Local Unit
    • Link-In and Remote Unit Link-Out.
  8. Compact size, durable and reliable device.
