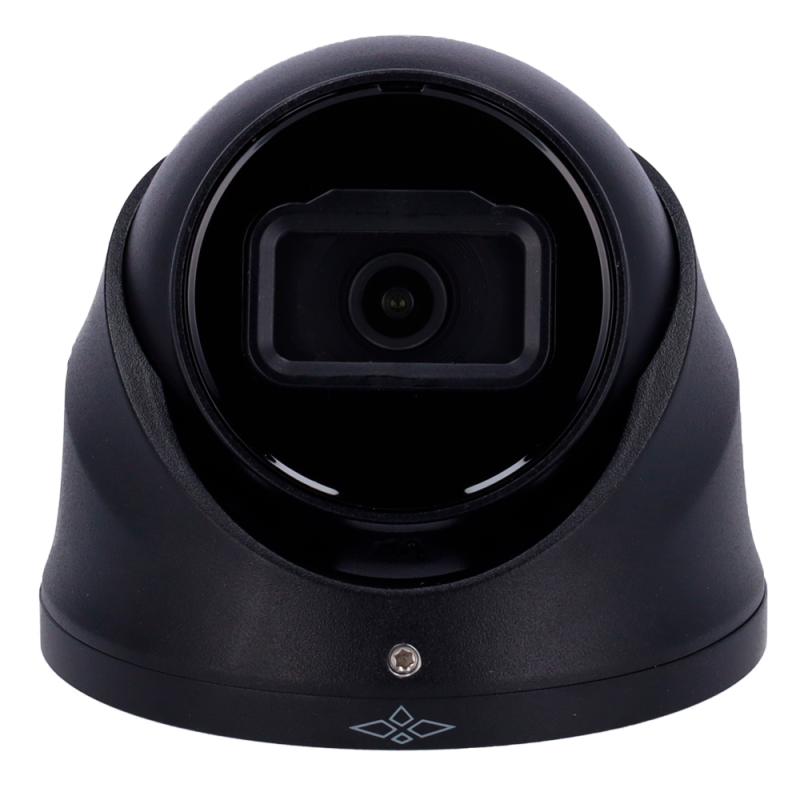

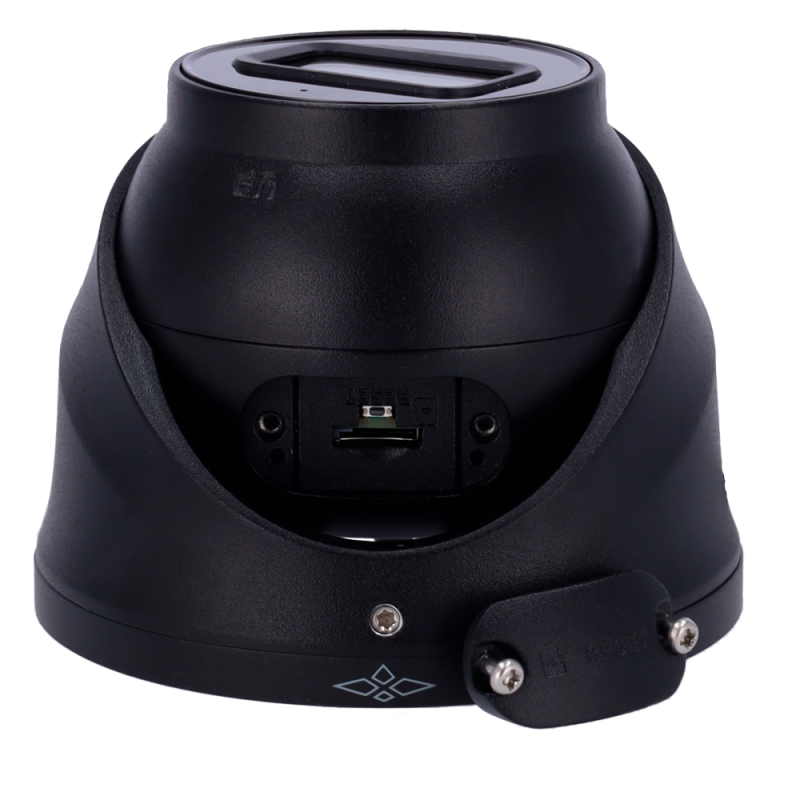

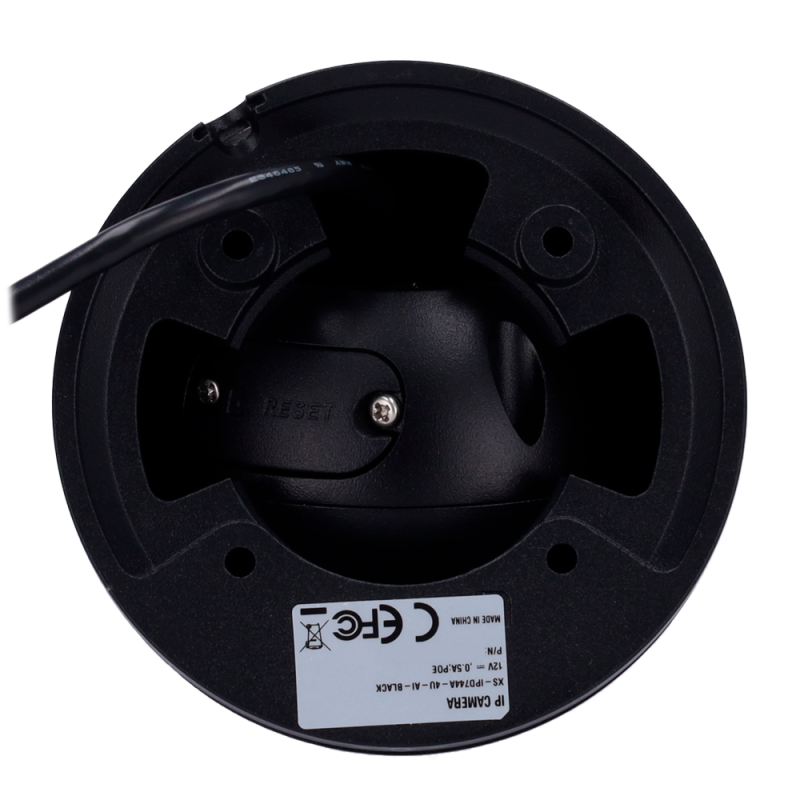

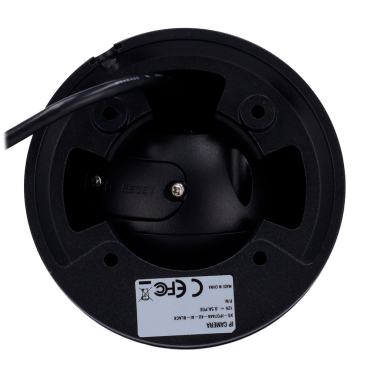

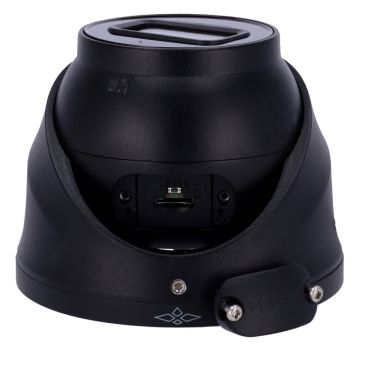

X-Security Turret IP Camera Black Color | 4 Megapixel (2688x1520) | Lens 2.8 mm / LEDs Range 30 m | WDR 120 dB | Integrated Microphone | PoE | H.265+ | Intelligent functions
  • Brand: X-Security
  • Product Code: XS-IPD744A-4U-AI-BLACK
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security Turret IP Camera Black Color | 4 Megapixel (2688x1520) | Lens 2.8 mm / LEDs Range 30 m | WDR 120 dB | Integrated Microphone | PoE | H.265+ | Intelligent functions


  • X-Security
  • Turret IP Camera
  • PRO range
  • 1/2.9" Progressive CMOS
  • 4 Megapixel (2688x1520)
  • 2.8mm lens
  • WizSense
  • 0.008 Lux
  • IR 30m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • IVS
  • smart search
  • SMD Plus
  • built-in microphone
  • WDR 120dB
  • IR CUT
  • IP67 waterproof
  • WEB interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF-compliant
  • Color Black


  • X-Security IP Camera
  • installation material
  • Instructions for use
  • CD with software and instructions
General
Material Inner Core: Metal Cover: Metal Decoration ring: Plastic
Protection Class IP67 waterproof
Smart Search Work together with Smart NVR to refine smart search, event extraction and merging with event videos
Temp. functioning -30º C ~ +60º C
Audio Compression G.711a; G.711Mu; PCM; G.726
Image sensor 1/2.9” Progressive CMOS
IVS (Perimeter Protection) Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people)
Max. Resolution 4 Megapixel (2688x1520)
Min. Illumination 0.008 lux@F1.6 (color, 30 IRE) 0.0008 lux@F1.6 (black and white, 30 IRE) 0 lux (illuminator on)
Power DC 12 V / 3,3W, PoE IEEE802.3af
Main Stream Rate 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps)
Color Black
Extra Stream rate 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB interface, CMS (DSS/PSS), Smartphone and NVR
Interoperability ONVIF (Profile S/Profile T); .CGI; P2P; Milestone
Weight 480 g
Image enhancements WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR
Lens 2.8 mm (H: 95°; V: 52°; D: 114°)
Audio built-in microphone
Dimensions 99.1 mm (D) x 121.9 (Ø) mm
Compression H.264H; H.265; H.264; H.264B; MJPEG (only compatible with sub-stream)
