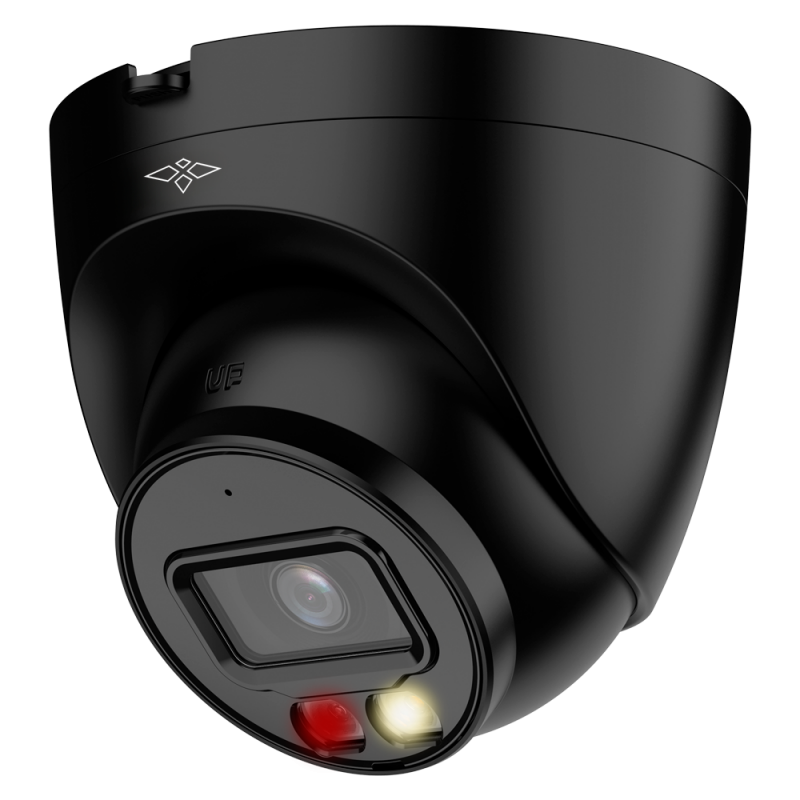

X-Security Turret IP Camera PRO Range - 8 Megapixel (3840x2160) - 2.8 mm fixed lens - IVS (Perimeter Protection) | SMD Plus - MicroSD | Dual Light range 30 m - Waterproof IP67 | Integrated microphone | PoE
  • Brand: X-Security
  • Product Code: XS-IPT981A-8P-WIZ-DL-BLACK
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security Turret IP Camera PRO Range - 8 Megapixel (3840x2160) - 2.8 mm fixed lens - IVS (Perimeter Protection) | SMD Plus - MicroSD | Dual Light range 30 m - Waterproof IP67 | Integrated microphone | PoE


  • X-Security
  • IP Turret Camera
  • PRO Range
  • WizSense
  • 1/2.7" Progressive CMOS
  • 8 Megapixel (3840x2160)
  • 2.8 mm fixed lens
  • 0 Lux
  • Dual Light: IR and white light
  • IR range of 30 m
  • White light range 30 m
  • Compression H.265+ / H.264+ / H.265 / H.264 / H.264H / MJPEG
  • IVS Perimeter protection
  • SMD Smart Search
  • Integrated microphone
  • WDR (120 dB)
  • 3D DNR
  • IR Cut
  • MicroSD card slot up to 256 GB
  • WEB, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Weatherproof IP67
  • Black colour



  • X-Security IP camera
  • Installation material
  • User instructions
  • CD with software and instructions

alt


General
Dimensions 100.9 mm (D) x 109.9 (Ø) mm
Material Body: Metallic Cover: Plastic
SMD (Smart Motion Detection) Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos
Supplementary lighting Dual Light: IR Range 30 m White light range 30 m
Viewing Angle (FOV) H: 111º, V: 58º, D: 132º
Audio Compression G.711a; G.711Mu; PCM; G.726
Image sensor 1/2.7” Progressive CMOS
IVS (Perimeter Protection) Intrusion, tripwire (both functions support classification and accurate detection of vehicles and persons)
Range performance 84.8 m (D), 33.9 m (O), 17 m (R), 8.5 m (I)
Base dimensions Ø base 109.9 mm / Ø between bolts 84 mm / 3 bolts
Main Stream Rate 3840x2160 @ (1~20) fps 2688x1520@ (1~25/30) fps
Maximum resolution 8 Megapixel (3840x2160)
Power Supply DC 12V / 3.3W PoE IEEE802.3af
Extra Stream rate 704×576 @(1~25 fps) 704×480 @ (1~30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Colour Black
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
Weight 380 g
Electronic shutter 1/3 s~1/100.000 s
Lens 2.8 mm
Audio Integrated microphone
Day / Night Removable mechanical ICR filter
Minimum illumination 0.008 Lux @(F1.6, AGC ON) 0 lux (Illuminator on)
Image improvements WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Mirror effect, Privacy masking, Image rotation 0°/90°/180°/270°
Temp. operation -40º C ~ 55º C
Video bitrate H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Internal memory MicroSD card slot up to 256 GB
Compression H.265+/H.264+/H.265/H.264/H.264H/H.264B
