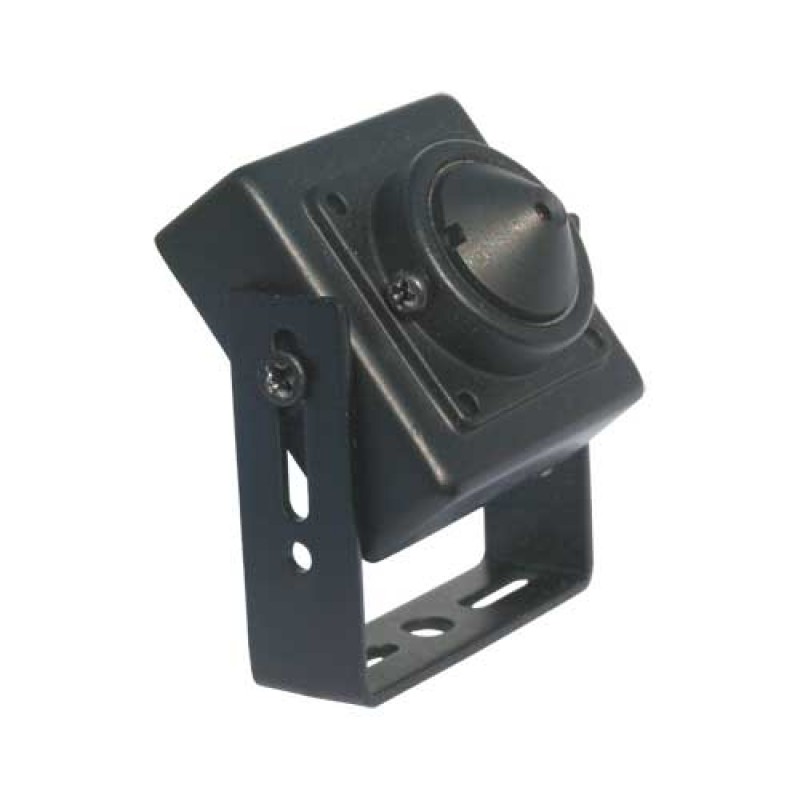

Wired mini-camera - 1/3" Sony© Super HAD CCD II - Resolution 600 TVL - Bracket integrated - 0.3 Lux / F2.0 - 3.7 mm Pinhole Lens
  • Brand: White Label
  • Product Code: MC221J
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Wired mini-camera - 1/3" Sony© Super HAD CCD II - Resolution 600 TVL - Bracket integrated - 0.3 Lux / F2.0 - 3.7 mm Pinhole Lens


Wired miniature camera.

Sony© 1/3" 960H Super HAD CCD II Sensor (model ICX663AKA) & Nextchip© DSP (model NVP2040), and a resolution of 600 TVL. Fixed lens of 3.7 mm pinhole with a diagonal range of vision of 79º. Minimum illumination of 0.3 Lux. Video connection via BNC connector

Metal housing, which makes it more robust against external factors. Ideal for discreet high quality recordings thanks to its high resolution.



  • Mini-camera
  • - Video and power connection cable
  • - AC/DC Adapter 12V / 600mA
  • - User instructions


alt


General
Dimensions 25 (H) x 25 (W) x 14 (D) mm
S/N Ratio > 48 dB
Image sensor 1/3" Sony© 960H Super HAD CCD II
Power Supply DC 12 V / 150 mA
Resolution 600 TVL
Video Output 1 Vp-p 75 Ω / BNC
Weight 24 g
DSP Nextchip NVP2040
Lens 3.7 mm (79º) Pinhole
Minimum illumination 0.3 Lux / F2.0
Temp. operation -10º C ~ +50º C
