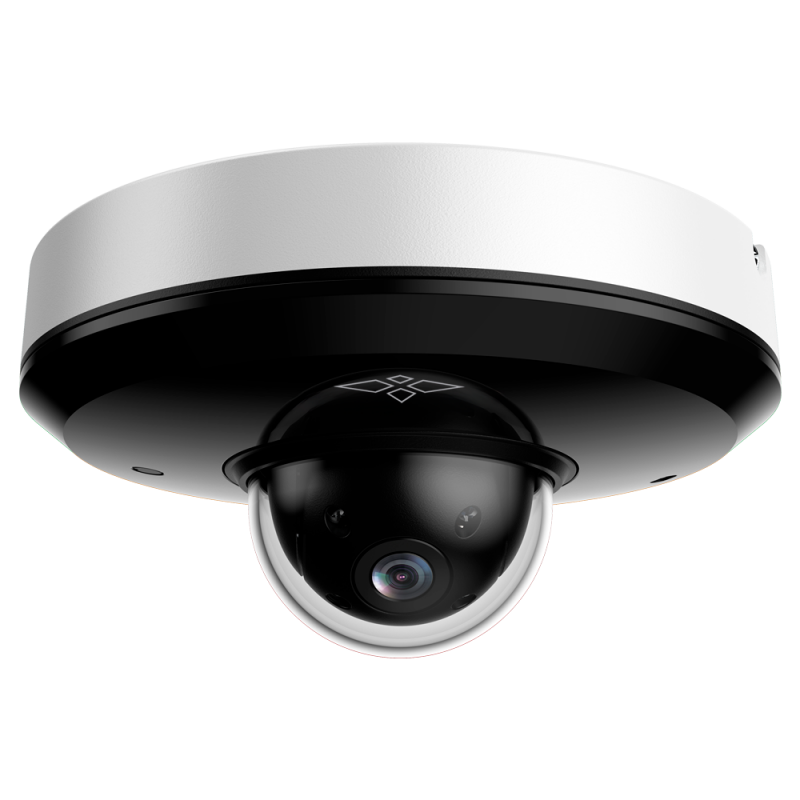

X-Security 4 Mpx Pro Range IP PTZ Camera - Varifocal lens 2.8~12 mm (optical zoom 4x) - IR 20 m | Starlight - IVS (Perimeter Protection) | SDM 3.0 - Face detection : People counting - IP66 | IK08 | Audio | Alarms | PoE | MicroSD
  • Brand: X-Security
  • Product Code: XS-IPSD1004I-4UW-WIZ
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security 4 Mpx Pro Range IP PTZ Camera - Varifocal lens 2.8~12 mm (optical zoom 4x) - IR 20 m | Starlight - IVS (Perimeter Protection) | SDM 3.0 - Face detection : People counting - IP66 | IK08 | Audio | Alarms | PoE | MicroSD


  • X-Security
  • WizSense PTZ IP Camera
  • 4 Megapixel (2560x1440)
  • Pro range
  • 1/2.8" Progressive Scan CMOS
  • 2.8–12 mm Varifocal lens
  • 4X Optical zoom
  • Starlight technology, color image in low light conditions
  • 0 lux
  • IR Range 20 m
  • Compression H.264H / H.264B / Smart H.265+ / H.265 / H.264 / MJPEG
  • IVS (Perimeter protection)
  • SMD Smart Search 3.0
  • Face detection
  • People count
  • Built-in microphone
  • Audio
  • WDR (120 dB)
  • 3D DNR
  • IR Cut
  • MicroSD card slot up to 512GB
  • WEB, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR interface
  • ONVIF Compatible
  • RJ-45 10/100 BaseT
  • PoE (IEEE802.3af)
  • Weatherproof IP66
  • Vandal proof IK08
  • Surge protection 6000 V



  • IP motorised dome camera
  • CD with software and instructions

alt


General
Dimensions 65.7 mm (H) x 128 (Ø) mm
EIS (Image Stabilizer) Yes
Focus Auto; semi-auto; manual
SMD (Smart Motion Detection) SMD 3.0, advanced motion detection
Viewing Angle (FOV) H: 96.9º~31.6º, V: 51.4º~17.8º, D: 116.2º~36.4º
Audio Compression PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1
Image sensor 1/2.8" Progressive Scan CMOS
IVS (Perimeter Protection) Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/lost object; fast movement; parking detection; people gathering; vehicle/human alarm classification
Pan/Tilt Range Horizontal: 0°~355° Vertical: 5°~90°
Range performance 240 m (D), 94.8 m (O), 48 m (R), 24 m (I)
Main Stream Rate 4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps)
Power Supply DC 12 V / 2 A, max. 13 W PoE (IEEE802.3af)
Resolution 4 Megapixel (2560x1440)
Extra Stream rate 1: D1/VGA/CIF@ (1–25/30 fps) / 2: 720p@ (1–25/30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Preset positions 300, 8 tour
Weight 0.5 Kg
Communication ONVIF (profile S, G, T), CGI, SDK
Bitrate H264: 96 Kbps~14,848 Kbps H265: 38 Kbps~8,960 Kbps
Electronic shutter 1 s~1/30.000 s
Lens Varifocal 2.8~12 mm (optical zoom 4x))
Speed between Presets Horizontal: 0.1°~80°/s Vertical: 0.1°–40°/s
Audio 1 Input / 1 Output Integrated microphone
Day / Night Removable mechanical ICR filter
Minimum illumination 0.005 Lux @(F1.8, AGC ON) 0 lux with IR range 20 m
Digital Zoom 16X
Image improvements WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, Smart IR, Rotation 180º
Temp. operation -30º C ~ +60º C
Face Detection Supports face detection, image captures, and face enhancement. Supports face trimming: face, one inch photo. Capture strategies include real-time capture and quality prioritization.
Internal memory MicroSD card slot up to 512 GB
People Counting Supports counting the number of people crossing the detection line, counting the number of people in an area and queue management. In addition, only the count of people crossing the detection line supports the report function.
Degree of protection Weatherproof IP66 Vandal proof IK08 Surge protection 6000 V
Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+
