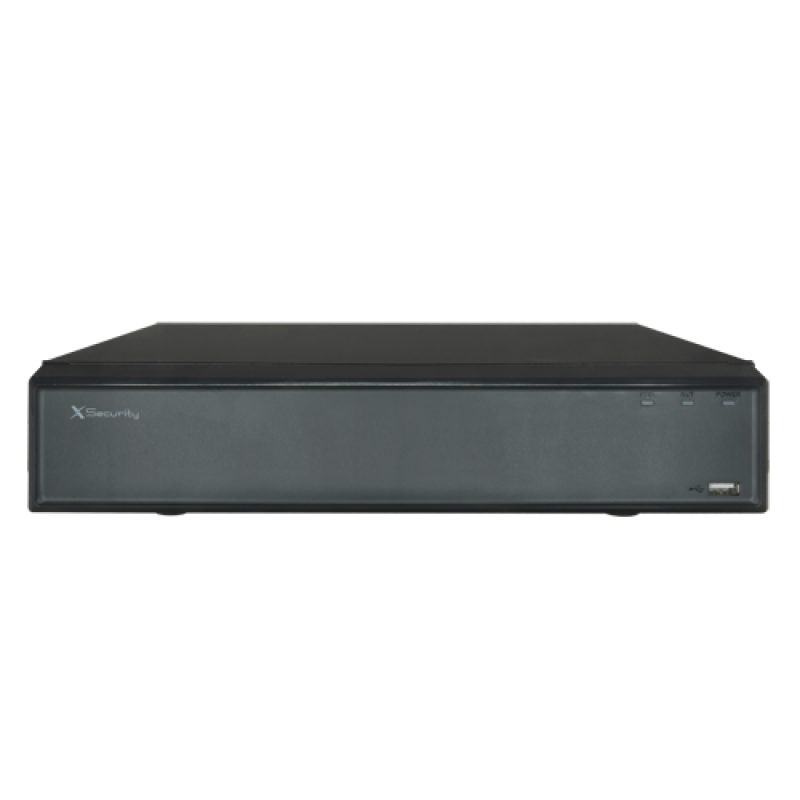

X-Security NVR for IP cameras - Max. recording resolution 12 Megapixel (4K) - Compression H.265+ / H.264+ / MJPEG - 64 CH and 16 PoE ports - Bandwidth 320 Mbps - Space for 8 hard disks
  • Brand: X-Security
  • Product Code: XS-NVR6864-4K16P
  • Availability: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security NVR for IP cameras - Max. recording resolution 12 Megapixel (4K) - Compression H.265+ / H.264+ / MJPEG - 64 CH and 16 PoE ports - Bandwidth 320 Mbps - Space for 8 hard disks


  • X-Security
  • NVR for IP cameras
  • 64 CH
  • 320 Mbps bandwidth supported
  • Maximum resolution 12 Megapixel (4K)
  • Compression H.265+ / H.264+ / MJPEG
  • Alarms
  • VGA and 2 HDMI 4K outputs
  • IP Dual Stream Access
  • Mouse
  • Space for 8 HDD
  • 16 PoE Ports IEEE802.3af/at
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible


  • X-SECURITY NVR
  • Mouse
  • Power supply cable
  • User instructions
  • CD with manual and software


General
Dimensions 95 (H) x 440 (W) x 450 (D) mm / 7 Kg (without HDD)
Inputs for IP cameras LAN port up to 64 channels
PoE Switch of 16 PoE channels IEEE802.3af/at
Power AC 100~240 V, 50/60 Hz
IP compatible cameras X-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Recording method Manual, programmed, motion detection, alarm
Remote Access Web browser (ActiveX), mobile phone application or PSS software

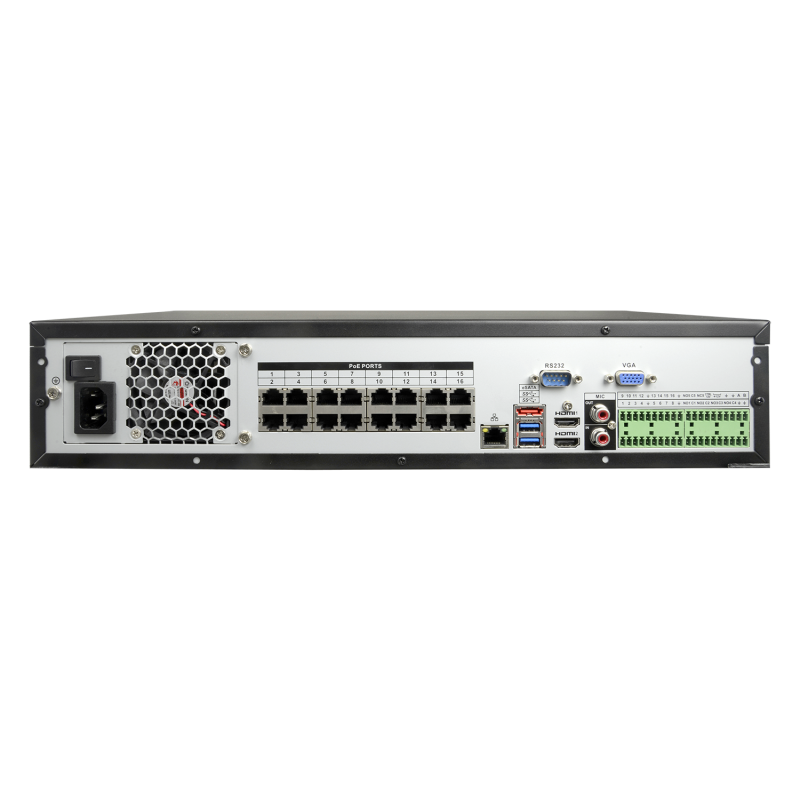

Communication RS485 (PTZ) / RS232 / 2xUSB 3.0 (Mouse and backup) / 2xUSB 2.0 / eSATA / 1 RJ45 10/100/1000M (Ethernet)
Video compression format H.265+ / H.265 / H.264+ / H.264 / MJPEG / MPEG4
Video outputs 1 HDMI 4K, 1 HDMI, 1 VGA
Display Resolution 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Total bandwidth 320 Mbps
Bidirectional audio 1 input, 1 output, RCA
Alarms 16 Inputs / 6 Relay NO/NC
Recording resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ...
Internal memory 8 SATA HDD 3.5" of up to 8 TB (not included)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
