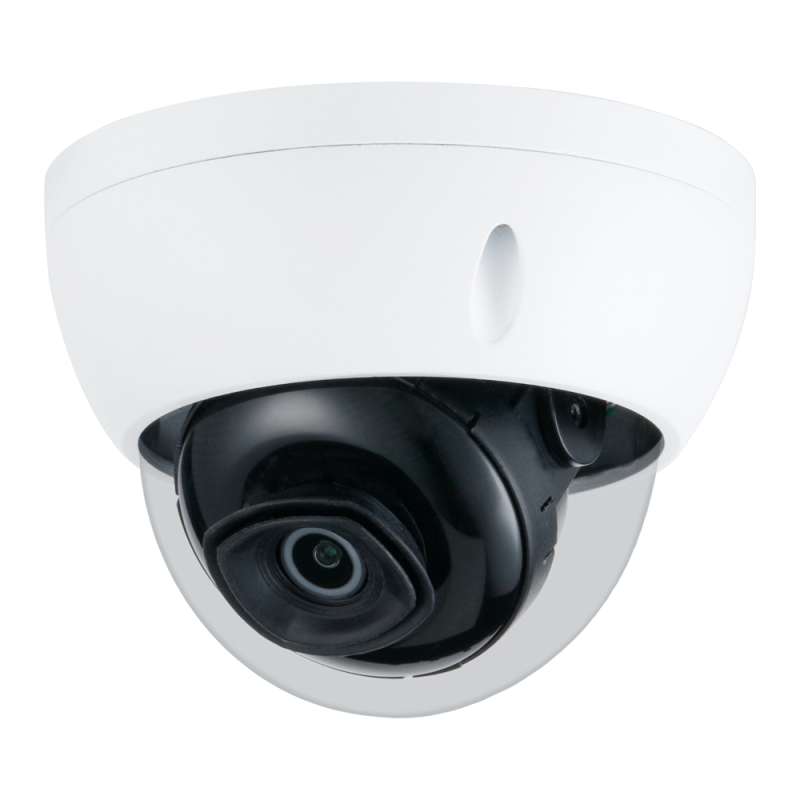

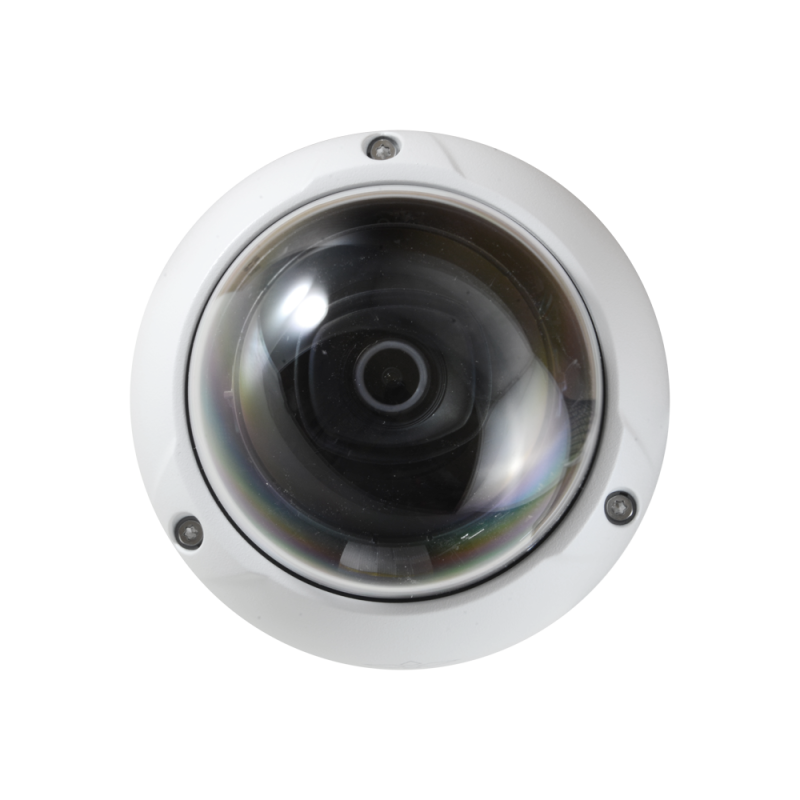

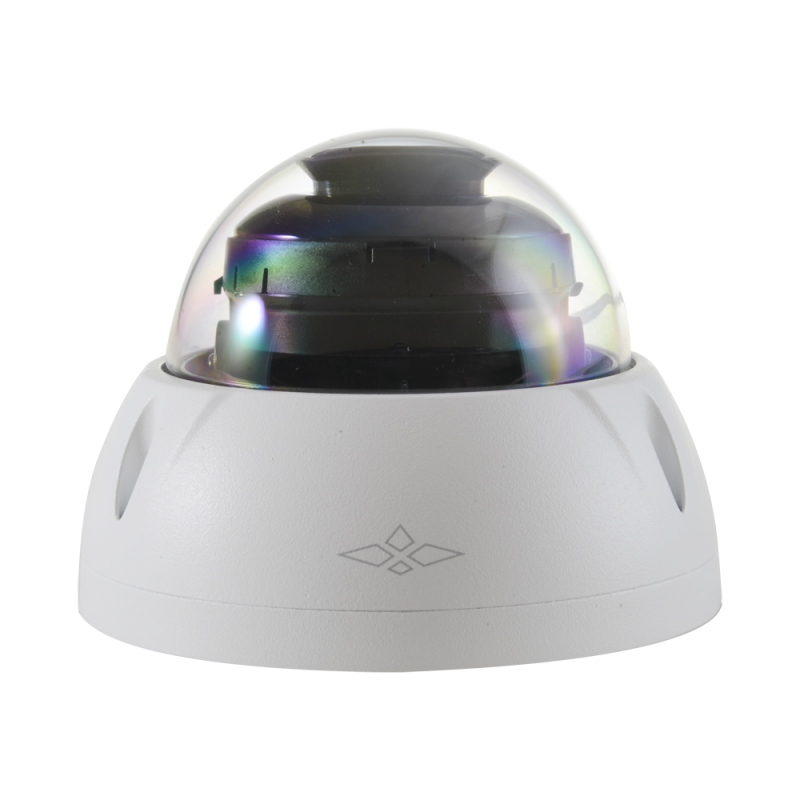

X-Security WizSense IP Dome Camera | 4 Megapixel (2688 × 1520) 2.8mm lens | IR LED 30m | Built-in microphone | H.265+ | PoE Waterproof IP67 Anti-vandal IK10
  • Brand: X-Security
  • Product Code: XS-IPD842SW-4P-AI
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security WizSense IP Dome Camera | 4 Megapixel (2688 × 1520) 2.8mm lens | IR LED 30m | Built-in microphone | H.265+ | PoE Waterproof IP67 Anti-vandal IK10


  • X-Security
  • IP camera
  • PRO range
  • WizSense
  • 1/2.9" Progressive CMOS
  • 4 Megapixel (2688 × 1520)
  • 2.8mm lens
  • 0.006 Lux
  • IR LED Range 30m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • IP67 waterproof
  • Vandal resistant IK10
  • built-in microphone
  • IVS (Perimeter Protection)
  • SMD Plus
  • WDR (120dB)
  • IR CUT
  • WEB interface, CMS (DSS/PSS), Smartphone and NVR
  • ONVIF-compliant
  • Color White



  • X-Security IP camera
  • Installation material
  • User instructions
  • CD with software and instructions

alt


General
Material Metal
Temp. functioning -40º C ~ +60º C
Audio Compression G.711a; G.711Mu; G.726; PCM
Image sensor 1/2.8” CMOS image sensor
IVS (Perimeter Protection) Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people)
Lens positioning 3 axis
Max. Resolution 4 Megapíxel (2688 × 1520)
Power DC 12 V / 2.5 W, PoE IEEE802.3af
Main Stream Rate 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
Extra Stream rate 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Network Interface Ethernet 10/100 BaseT
Remote Access WEB interface, CMS (DSS/PSS), Smartphone and NVR
Interoperability ONVIF (Profile S/Profile G); .CGI; P2P
Weight 340 g
Image enhancements WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR
Lens 2.8 mm (H: 102°; V: 54°; D: 121°)
Audio built-in microphone
Minimum illumination 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Dimensions 81mm (D) x 109.9 (Ø)mm
External Storage 256 GB microSD card slot
Video bitrate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Degree of protection IP67 waterproof, IK10 vandal resistant
DORI Distance 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I)
Compression H.265; H.264; H.264H; H.264B; MJPEG
