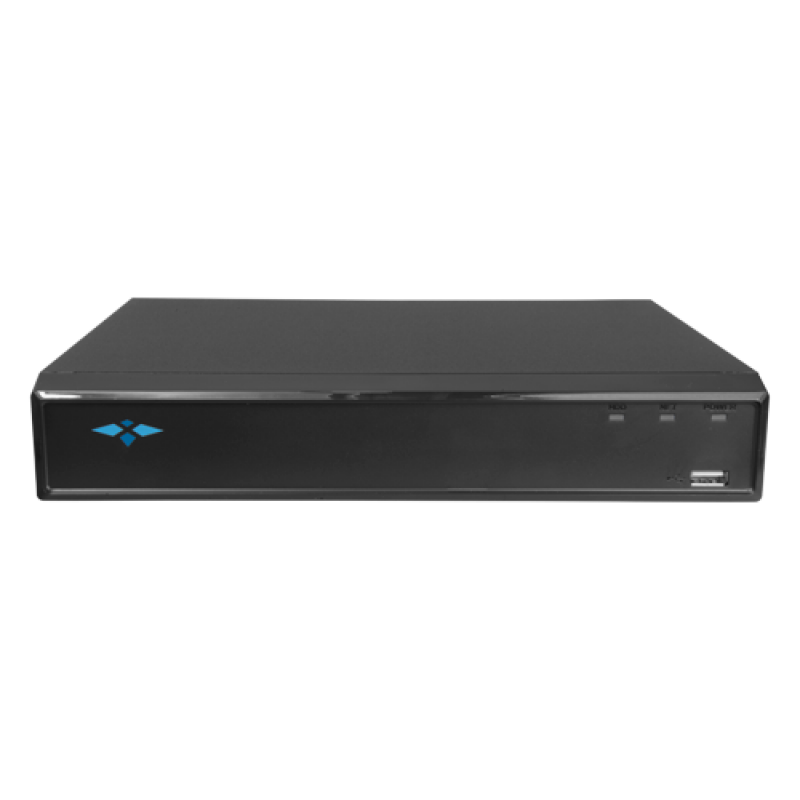

DVR 5n1 X-Security - 8 CH HDTVI / HDCVI / AHD / CVBS / 8+2 IP - 1080N (25FPS) | H.265+| SMD+ - Audio 1 input/1 output by RCA - Full HD and VGA HDMI output - Supports 1 hard disk

Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Description

Datasheet

Software

package contents

Specifications

Article
Brand	X-Security
Product Code	XS-XVR3108-HV
General
Internal storage	1 HDD SATA 3.5" of up to 6TB (not included)
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video outputs	1 HDMI full HD and 1 VGA
Hybrid configuration	Up to 10 IP Channels (6Mpx), replacing all the BNC channels
Remote Access	Web browser (ActiveX), mobile phone application or PSS software
Video inputs	8 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Bidirectional audio	Reusing the audio input/output
Communication	2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Audio inputs	1 Channel RCA
Display resolution	1920x1080, 1280x1024, 1280x720
Video / audio compression	H.265+/H.265/H.264+/H.264
Audio outputs	1 Channel RCA
Power	DC 12 V / 1.5 A
Recording resolution	1080N; 720p; 960H; D1; HD1; [%VAR%] BCIF; CIF
Extra Stream coding	CIF (1~7 FPS)
Intelligent functions	POS Function \| Bidirectional Audio by RCA
Main Stream coding	First channel: 1080N, 720p (1~25/30FPS), Rest of channels: 1080N, 720p (1~15FPS) / 960H, D1,CIF (1~25/30 FPS)
SMD PLUS	Filtering of false alarms of people and vehicles in movement detection
Alarms	No
Recording method	Manual, programmed, motion detection (up to 396 zones)
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Dimensions / Weight	45.3 (H) x 204.6 (W) x 210.92 (D) mm / 0.52 Kg
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network
