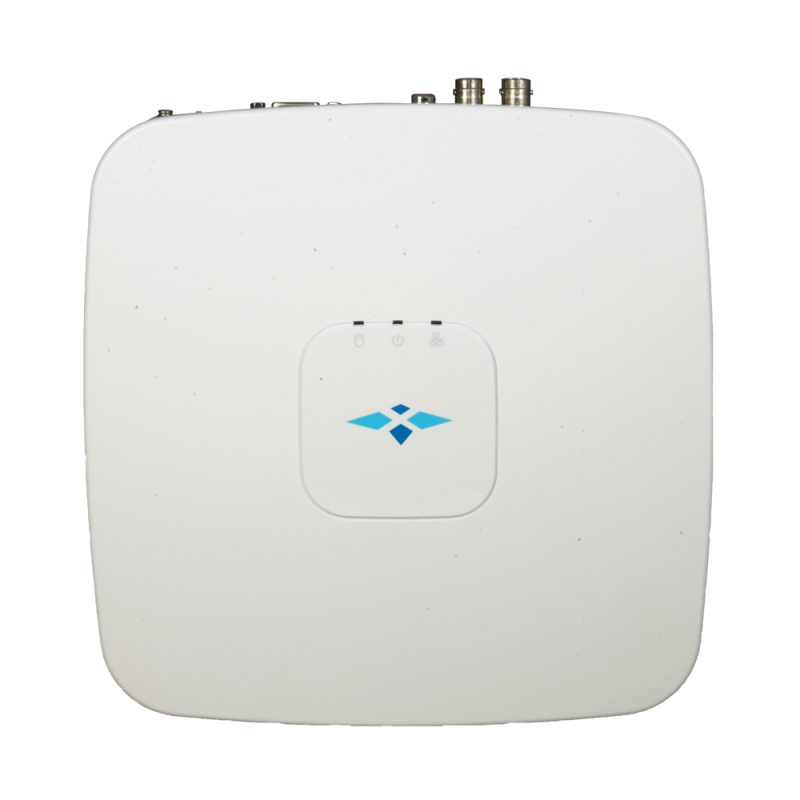

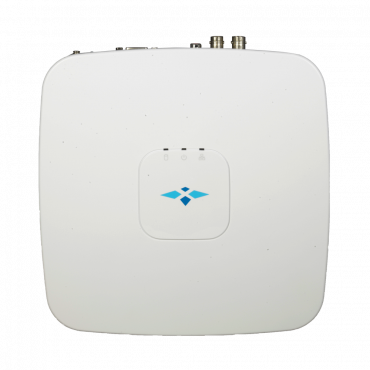

5n1 X-Security Video Recorder - 8 CH HDTVI / HDCVI / AHD / CVBS / 8 + 2 IP - 1080p (25FPS) | H.265 + | SMD + - Audio 1 input / 1 output by RCA - HDMI full HD and VGA output - Supports 1 hard disk
  • Brand: X-Security
  • Product Code: XS-XVR3108M-HV
  • Availability: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

5n1 X-Security Video Recorder - 8 CH HDTVI / HDCVI / AHD / CVBS / 8 + 2 IP - 1080p (25FPS) | H.265 + | SMD + - Audio 1 input / 1 output by RCA - HDMI full HD and VGA output - Supports 1 hard disk

  • X-Security
  • XVR 5n1
  • 8 CH video HDTVI / HDCVI / AHD / CVBS / 8 + 2 IP / 1 CH two-way audio
  • Compression H.265 + / H.265 / H.264 + / H.264
  • Resolution up to 1080P
  • SMD PLUS
  • Audio
  • HDMI and VGA output
  • Mouse
  • Space for 1 HDD SATA 6 TB
  • DVR 5 in 1 X-Security
  • Mouse
  • Adapter AC/DC 12 V / 1.5 A
Article
Brand XS-XVR3108M-HV
Brand X-Security
POWER
Operating Voltage DC 12 V
Power DC 12 V / 1.5 A
Power Consumption 1.5 A
General
Video format HDTVI / HDCVI / AHD / CVBS / IP
Recording method Manual, programmed, motion detection (up to 396 zones)
Video inputs 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS)

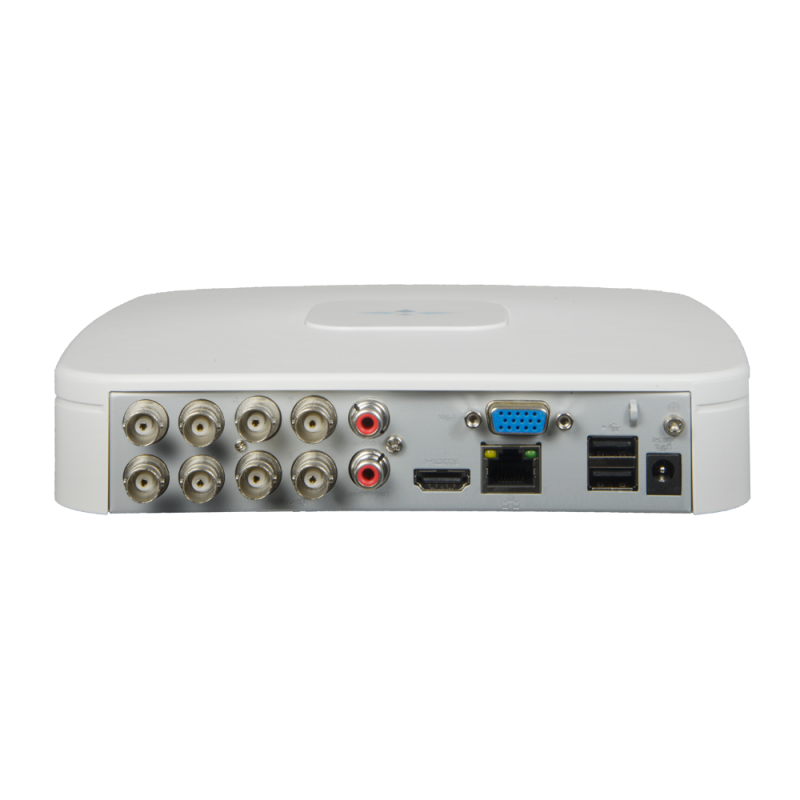

Video outputs 1 HDMI full HD and 1 VGA
Audio inputs 1 Channel RCA
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input/output
Intelligent functions POS Function | Bidirectional Audio by RCA
Display resolution 1920x1080, 1280x1024, 1280x720
Video / audio compression H.265+/H.265/H.264+/H.264
Recording resolution 1080N; 720p; 960H; D1; HD1; BCIF; CIF
Main Stream coding First channel: 1080N, 720p (1~25/30FPS), Rest of channels: 1080N, 720p (1~15FPS) / 960H, D1,CIF (1~25/30 FPS)
Extra Stream coding CIF (1~7 FPS)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 HDD SATA 3.5" of up to 6TB (not included)
Communication 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote access Web browser (ActiveX), mobile phone application or PSS software
Weight 0.52Kg
General Characterisitics
Dimensions 45.3 (H) x 204.6 (W) x 210.92 (D) mm
