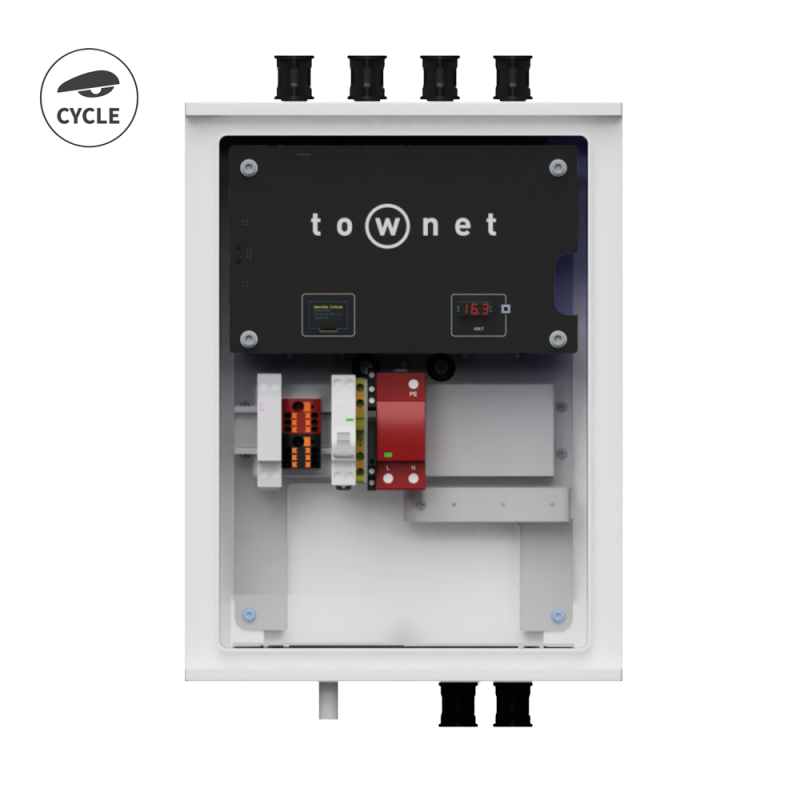

Loop powered - 864Wh - Fast charge 15A/220Wh 4h - Remote monitoring of systems
  • Merk: Townet
  • Productcode: TOW-L75C
  • Levertijd: Discontinued
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

Loop powered - 864Wh - Fast charge 15A/220Wh 4h - Remote monitoring of systems


  • The most requested compact and light version.
  • The charging profile is optimized for LiFePO4 batteries
  • Fast charge from AC in just 4 hours.
  • Can also be used as an uninterruptible power supply for systems with AC H24
  • Does not include Industrial Poe Switch or DC-DC Industrial Converter DIN 9-18Vdc



  • Instructions for use

alt


Article
Brand Townet
Product Code TOW-L75C
OPERATING ENVIROMENT
IP68 RJ45 connectors 4
General
Maximum load -
Automatic ventilation Yes
Battery cycles (DOD 80%) 2000
Battery protection fuse 20A extra-fast
Battery voltage 14V
Box Weight Kg (with Assembly Kit) 15,5 (19,0)
Charging algorithm -
Dimensions (H x W x D) 425 x 325 x 180
Door locked Yes
Door opening alarm Yes
External environmental sensors Integrated PM 1-2.5-4-10, Temperature, Humidity, Pressure
Full recharge Fast Charge 15A/ 220Wh 4h
GSM Cloud M2M Modem Integrated with 500MB prepaid and rechargeable SIM
Integrated display Programmable + Instantaneous Volt Control
Internal temperature control Yes
IoT remote control and alarms Cloud data management software included
Large box version 434 x 504 x 210 L75C XL
LiFePo4 lithium battery 864 Wh
Low battery contact Yes
Magnetothermal switch Yes
Main power AC100-240 / Lighting cycle
MC4 panel connectors -
Network presence check Yes
Outdoor cabinet IP68 fiberglass (IP54 ventilation system)
Photovoltaic Max Power -
Rated voltage photovoltaics -
Street floor box version L75C T
Support for pole installation Included (for diameters from 50 to 140 mm)
Surge Arrester SPD type2 (20kA)
