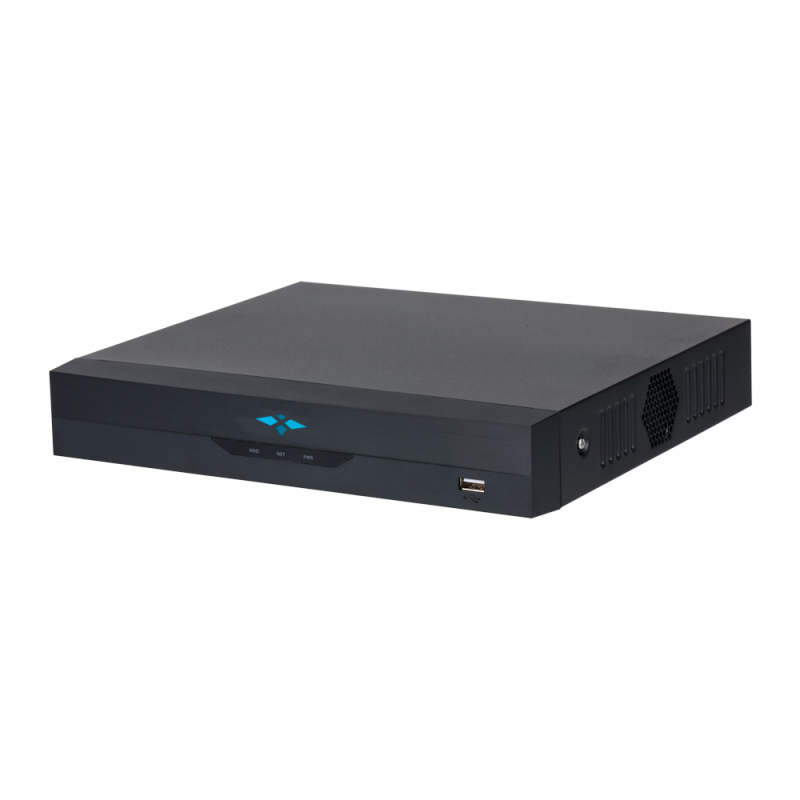

X-Security WizSense AI IP Recorder | 16 CH IP video | Maximum recording resolution 12 Mpx | Bandwidth 144 Mbps | Full HD HDMI and VGA output | Supports 1 hard drive
  • Merk: X-Security
  • Productcode: XS-NVR2116-4AI
  • Levertijd: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security WizSense AI IP Recorder | 16 CH IP video | Maximum recording resolution 12 Mpx | Bandwidth 144 Mbps | Full HD HDMI and VGA output | Supports 1 hard drive


  • X-Security
  • NVR for IP cameras
  • 16 CH
  • 144 Mbps bandwidth supported
  • Maximum resolution 12 Mpx
  • Smart compression H.265/H.265/Smart H.264/H.264
  • VGA and HDMI FullHD output
  • Supports Perimeter protection and SMD Plus
  • Audio
  • 1 HDD
  • 2 USB ports
  • RJ45 10/100 Base T
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible



  • X-SECURITY NVR
  • Mouse
  • Ethernet Cable
  • Adapter AC/DC 12 V / 1.5 A
  • User instructions
  • CD with manual and software

alt


General
Internal storage 1 HDD SATA 3.5" up to 10 TB (not included)
ONVIF ONVIF (profile T; profile S; profile G); .CGI; SDKs
Decode capability AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps
Inputs for IP cameras LAN port up to 16 channels
Power DC 12 V / 1.5 A
Remote Access Browser, mobile phone app or PSS software
Two-way Audio 1 input, 1 output, RCA
Weight 8.1 kg
Communication 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M/1000 (Ethernet)
Video compression format Smart H.265 / H.265 / Smart H.264 / H.264
Video outputs 1 HDMI Full HD, 1 VGA
Total bandwidth 80 Mbps record
Recording resolution 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1
Dimensions 47.6 (H) x 260 (W) x 232.7 (D) mm
SMD Plus per camera 6-Channel SMD Plus (AI per Camera): Detects tripwires and intrusion by people or vehicles; Filters out false alarms caused by leaves, raindrops, and changing brightness
SMD Plus per device 4
AI per camera Face detection; facial recognition; perimeter protection; SMD Plus
AI per device Face detection; facial recognition; perimeter protection; SMD Plus
AI edge performance per camera (number of channels) 4
AI edge performance per device (number of channels) 1
AI face detection performance per camera (no of channels) 5
AI face detection performance per device (no of channels) 1 (up to 12 facial images/second)
Face detection 6 outfits: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Facial recognition Up to 10 facial databases with 5,000 images
AI facial recognition performance per camera (no of channels) 5
AI facial recognition performance per device (no of channels) 1 (up to 4 facial images/second)
