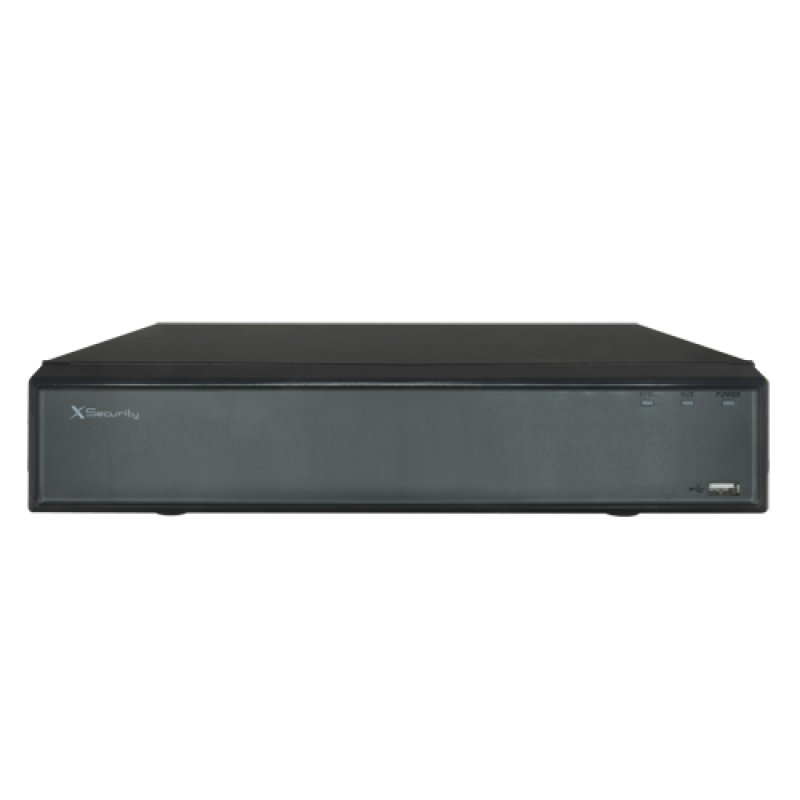

X-Security AI IP Recorder | 8 CH IP video | Maximum recording resolution 12 Mpx | Bandwidth 80 Mbps | Full HD HDMI and VGA Output | Supports 1 hard disk
  • Merk: X-Security
  • Productcode: XS-NVR2108-S3
  • Levertijd: In Stock
Om te bestellen en prijzen te kunnen zien moet u zich registreren of inloggen.
To order and view prices you must register or login.

X-Security AI IP Recorder | 8 CH IP video | Maximum recording resolution 12 Mpx | Bandwidth 80 Mbps | Full HD HDMI and VGA Output | Supports 1 hard disk


  • X-Security
  • NVR for IP cameras
  • 8 CH
  • 80 Mbps bandwidth supported
  • Maximum resolution 12 Mpx
  • Smart compression H.265/H.265/Smart H.264/H.264
  • VGA and HDMI FullHD output
  • Supports Perimeter protection and SMD Plus
  • Audio
  • 1 HDD
  • 2 USB ports
  • RJ45 10/100 Base T
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible



  • X-SECURITY NVR
  • Mouse
  • Ethernet Cable
  • Adapter AC/DC 12 V / 1.5 A
  • User instructions
  • CD with manual and software

alt


General
AI functions Perimeter protection / SMD Plus
Internal storage 1 SATA HDD 3.5" of up to 16 TB (not included)
ONVIF T/S/G Profile
Perimeter performance of AI per camera (Number of Channels) 4
SMD Plus through camera SMD Plus of 4 channels (AI per camera), secondary filtering for humans and motor vehicles
Inputs for IP cameras LAN port up to 8 channels
Power DC 12 V / 1.5 A
Remote Access Web browser, mobile phone application or PSS software
Weight 1,33 Kg (without HDD)
Communication 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet)
Video compression format Smart H.265 / H.265 / Smart H.264 / H.264
Video outputs 1 HDMI Full HD, 1 VGA
Total bandwidth 80 Mbps record
Bidirectional audio 1 input, 1 output, RCA
Decoding capacity 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
Recording resolution 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1
Dimensions 47,6 (H) x 260 (W) x 232,7 (D) mm
